  • Page 1: User Manual

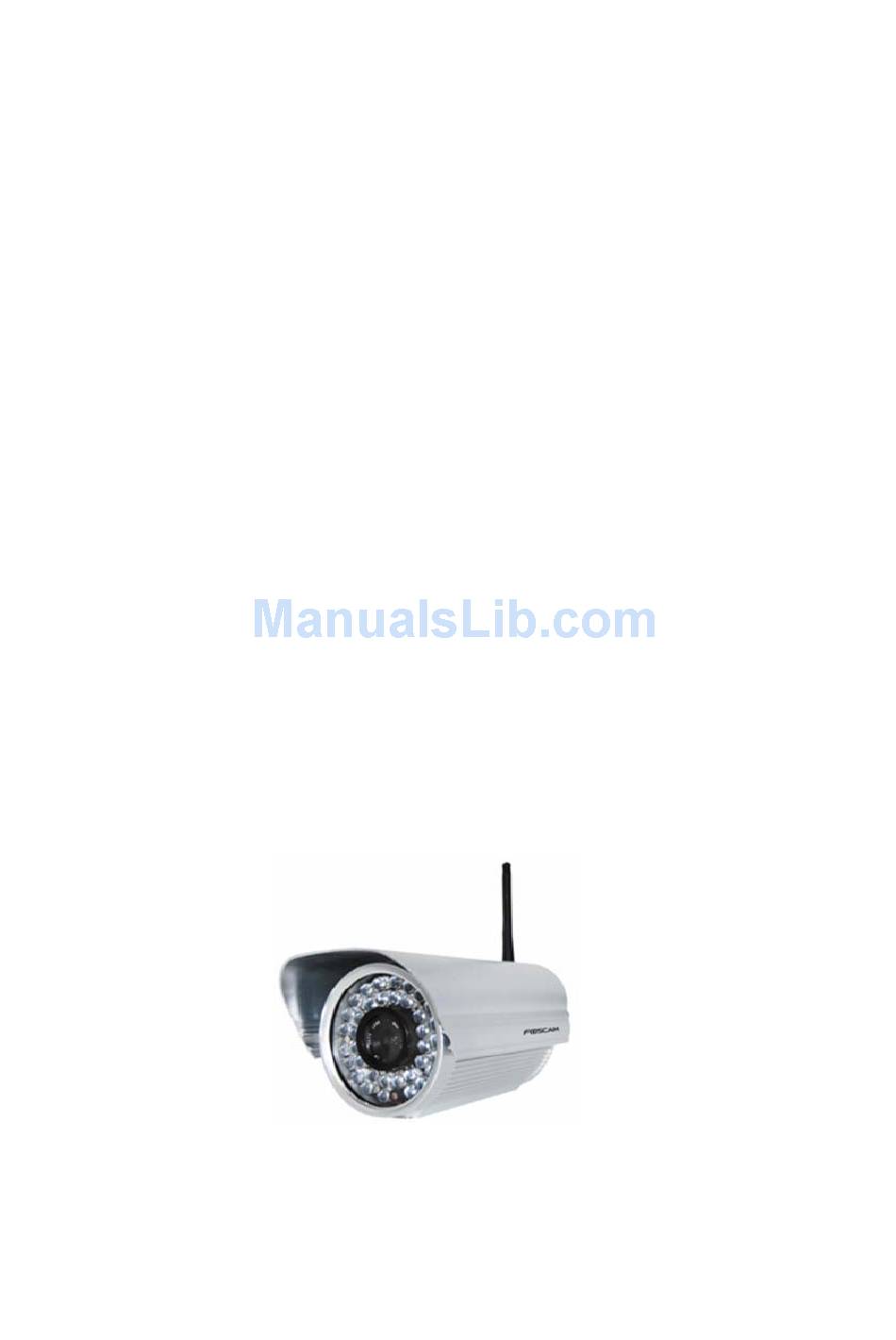

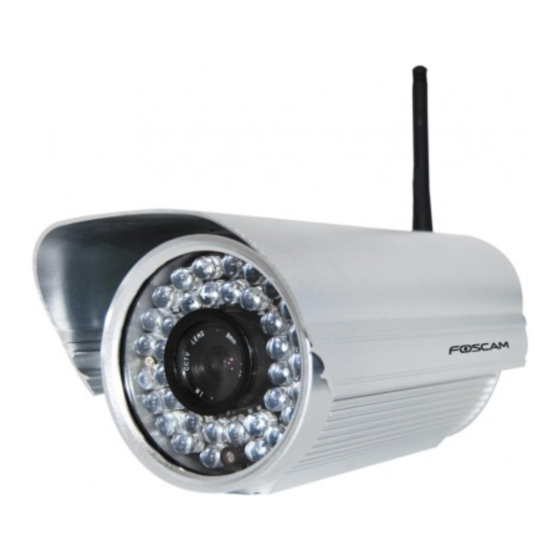

    User Manual Model: FI8602/FI8602W IP Wired/ Wireless Camera NIGHT VISION & REMOTE TWO WAY AUDIO...

  • Page 2: Table Of Contents

    CONTENTS 1 WELCOME ................................1 1.1 Features ................................1 1.2 Packing List.................................2 1.3 Product views..............................2 1.4 Preparations before use............................4 2 SOFTWARE OPERATION............................6 2.1 IP Camera Tool ..............................6 2.2 Camera Login ..............................10 2.3 For Visitor................................16 2.4 For Operator..............................18 2.5 For Administrator...............................21 3 How to configure settings in For Administrator ......................21 3.1 Date &...

  • Page 3: Welcome

    Supports IE/Firefox/Google/Safari browser or any other standard browsers Supports mobile watch Supports WEP,WPA and WPA2 Encryption IR night vision (Range:50m) Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 4: Packing List

    1.3 Product views 1.3.1 Front View Figure 1.1 Induction IC 2 Infrared LED: 36 IR LEDs 3 LENS: CMOS sensor with fixed focus lens Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 5 “Device Information” (Figure 1.3). If the Current Client shows zero, you can reset without unplugging the network cable, or else you had better unplug the network cable and then reset. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 6: Preparations Before Use

    (1) Put the CD in the CD drive of your computer. Open the CD; find the software per instructions; (2) Double click IPCamSetup.exe and install the software per instruction. Figure 1.4 (3) Click Next to complete the software installation. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 7 Figure 1.5 (4) Select the folder where setup will install then click Next. Figure 1.6 (5) Click Install. An icon appears on the desktop automatically. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 8: Software Operation

    Our company has two series: H.264 and MJPEG. M shows that the camera is MJPEG series. H shows that the camera belongs to H.264 series. FI8602W belongs to H.264 series. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 9 The firewall may be blocking it, therefore you can add this MAC ID to your router and give it a fixed IP or add the MAC ID as a trusted site. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 10 Note: H series doesn’t have Web UI Version. Figure 2.3b Network Configuration This page will allow you to configure the Network parameters. Figure 2.4 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 11 UI. Or it may damage the camera. Please download the firmware package under the correct type of your camera before upgrade. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 12: Camera Login

    (Figure 2.8) (2) You can also access the camera by IE browser directly by typing in the camera’s IP address (Figure 2.7). For example: Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 13 There are two modes to login. If you use PC to login, please choose the first mode. If you use mobile to login, please choose the second mode. (Figure 2.9) Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 14 QuickTime Player as the ActiveX from other website. For IE Please click . Install the ActiveX after download. Figure 2.10 Click next. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 15 WWW.FOSCAM.COM FI8602/FI8602W User Manual Figure 2.11 Click Install. Figure 2.12 Click Finish and the computer restarts upon installation completion. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 16 Right click on the active prompt and choose Run Add-on(Figure 2.14). Figure 2.14 Select Run on the next prompt (Figure 2.15), you will see a live video. (Figure 2.16) Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 17 If you are unable to run the activeX control, try shutting down the firewall or antivirus program. For Firefox, Google Chrome and Safari Fill in user name and password then login. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 18: For Visitor

    It may ask you for user name and password again before login the UI. After you enter user name and password, you will see the living video. Figure 2.17 2.3 For Visitor For IE browser Figure 2.18 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 19 And the status column will display REC when recording. Click again it will stop recording Figure 2.20 : Click the icon, it will pop up a player. And you can see the videos you have stored. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 20: For Operator

    This camera doesn’t have cradle head, so you cannot use this function. If you want to use cradle head, you must connect it with 485 cradle head interface firstly and then configure it properly (see 3.9 chapter about how to configure). Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 21 When the icon has three arrows, the speed of the rotation is fastest. And when the icon has one arrow, the speed is lowest. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 22 (Figure 2.24). Press the left mouse and you can use the optical zoom. Note: The camera doesn’t support the function because the lens is not the optical zoom. Figure 2.24 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 23: For Administrator

    There are four models for you to adjust time: Manual setting, Sync with computer time, Network Time Protocol and Keep current settings, choose one model and adjust the camera time. Then choose Time zone, such as the following picture: Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 24 Interval: The interval time between last time and next time that the camera adjusts the time with Ntp Server. If your country is implementing the Daylight Saving Time, when you select the Time zone, you Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 25: User Settings

    He can do any settings. Guest has the lowest authority. Please reset the passwords at first using. Prevent unauthorized users login the camera. Click Apply to save these settings. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 26: Basic Network Settings

    DNS server, you can check your computer’s local area connection. It contains all the information. The step is Control Panel Network Connections Double click Local Area Connections Choose General Properties. You will see all the information in it. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 27 If you don’t know the DNS server, you can use the same settings as the default Gateway. HTTP Port number: Usually, it is 80. You can set any number between 1024 and 49151 too. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 28 . WAN IP or LAN IP is OK. The number “11” shows that you will use first stream. The number”12” shows that you will use second stream. For example: Enter rtsp://192.168.11.169/11 in the VLC. Figure 3.8 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 29 FI8602/FI8602W User Manual Figure 3.9 You need enter the user name and password again. Click OK and you can see the real-time preview. Figure 3.10 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 30: Dynamic Ip Address

    “Manual DNS” but you don’t know the DNS, you can do as figure3.5/3.6. After all settings, click Apply. You will see the following picture, click OK, and re-connect the camera. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 31: Wireless Settings

    3.4.1 Infrastructure mode First Enable wireless and choose Infrastructure mode. Figure 3.14 Click Search button and the camera will detect WIFI device around the area. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 32 (SSID, Security mode, WPA Algorithm, WEP key index) will be filled automatically as the following picture. Figure 3.16 You only need fill in key. Access your router and get the key. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 33 Fill in key and click check. You can see whether WIFI settings are correct. If correct, you will see the following picture. Figure 3.19 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 34 IP Camera Tool. Open the wireless network card of PC and search the SSID you have filled. You can find it as the following picture: Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 35: Remote Access

    The PC and camera will work on wireless and point_to_point mode. 3.5 Remote Access You can access camera by two ways: static IP and domain name. Static IP user Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 36 Please set DDNS service settings as follows. Use the DDNS domain name you got from the dyndns website. Figure 3.25 Please click Apply after fill in all the information. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 37: Email Settings

    3.7 FTP Settings If you want to upload images to your FTP server, you can set FTP Settings. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 38: Auto Capture

    The camera can capture pictures automatically at interval time if you have set auto capture. Figure 3.29 Snap interval: Set snap interval time. The pictures will be stored to the disk you set (you can set Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 39: Terminal

    For example, choose window1.Then you can see a box with a number at living video (Figure 3.31). Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 40 Move the mouse to the bottom right corner of the regional box .When the mouse pattern changes to “ ”, you can change the size of the detection area. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 41 Figure 3.34 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 42: Alarm

    If you want the camera alarm during the time you wish, or all the time, please choose Schedule and set time range for motion alarm. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 43 If you click cancel, the settings will come back to the status before your settings. If you want to reset all time range, click clean. NOTE: Adjust system time before set schedule. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 44: Video

    Note: Bit rate of the first stream range :32～2048Kpbs； Bit rate of the second stream range： 32～ 512Kpbs. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 45 .If you set as following picture (Figure 3.38), you will see the video as Figure3.39. The camera name cannot be chinese characters. Figure 3.38 Figure 3.39 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 46: Image Settings

    If you want to quit settings you have done and restore the status before your setting, please click cancel. The function of Default is used to restore the initial settings. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 47: Audio

    If you give up the settings you have done, click cancel to restore the status before your setting. Back to the “For Visitor” and click the icon , you can here the voice around the camera. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 48: Initialize

    For example, the WAN IP is183.37.54.137, the domain name is cyjun321.dyndns.org. Then open mobile enter following URL, login camera. http:// 183.37.54.137/mobile.html http://183.37.54.137/wap.wml http://cyjun321.dyndns.org/mobile.html http://cyjun321.dyndns.org/wap.wml Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 49: For Mac Os

    As follows: Enable: Download unsigned ActiveX controls Enable: Initialize and script ActiveX controls not marked as safe Enable: Run ActiveX controls and plug-ins Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 50 NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you could not see video, please shut down firewall or anti-virus software to try again. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 51 Select Preferences—QuickTime Preferences… Figure 5.3 Choose HTTP as the transport protocol. Figure 5.4 Choose Automatic as the transport setup, then click OK to save the settings. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 52 If your camera could not connect wireless after you set wireless settings and plug out the cable. Please check whether your settings are correct or not. Normally, camera can’t connect wireless mainly because of wrong settings. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 53: Default Parameters

    Night visibility Φ8mm 36 IR LEDs, Night visibility up to 50 meters Ethernet One 10/100Mbps RJ-45 Network TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、 Supported Protocol DDNS、UPNP、RTSP Wireless Standard WIFI(IEEE802.11b/g/n) Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 54: Obtaining Technical Support

    User’s Guide has not answered. Please contact your reseller and ask for help first, if they could not resolve your issue, please contact our company. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
