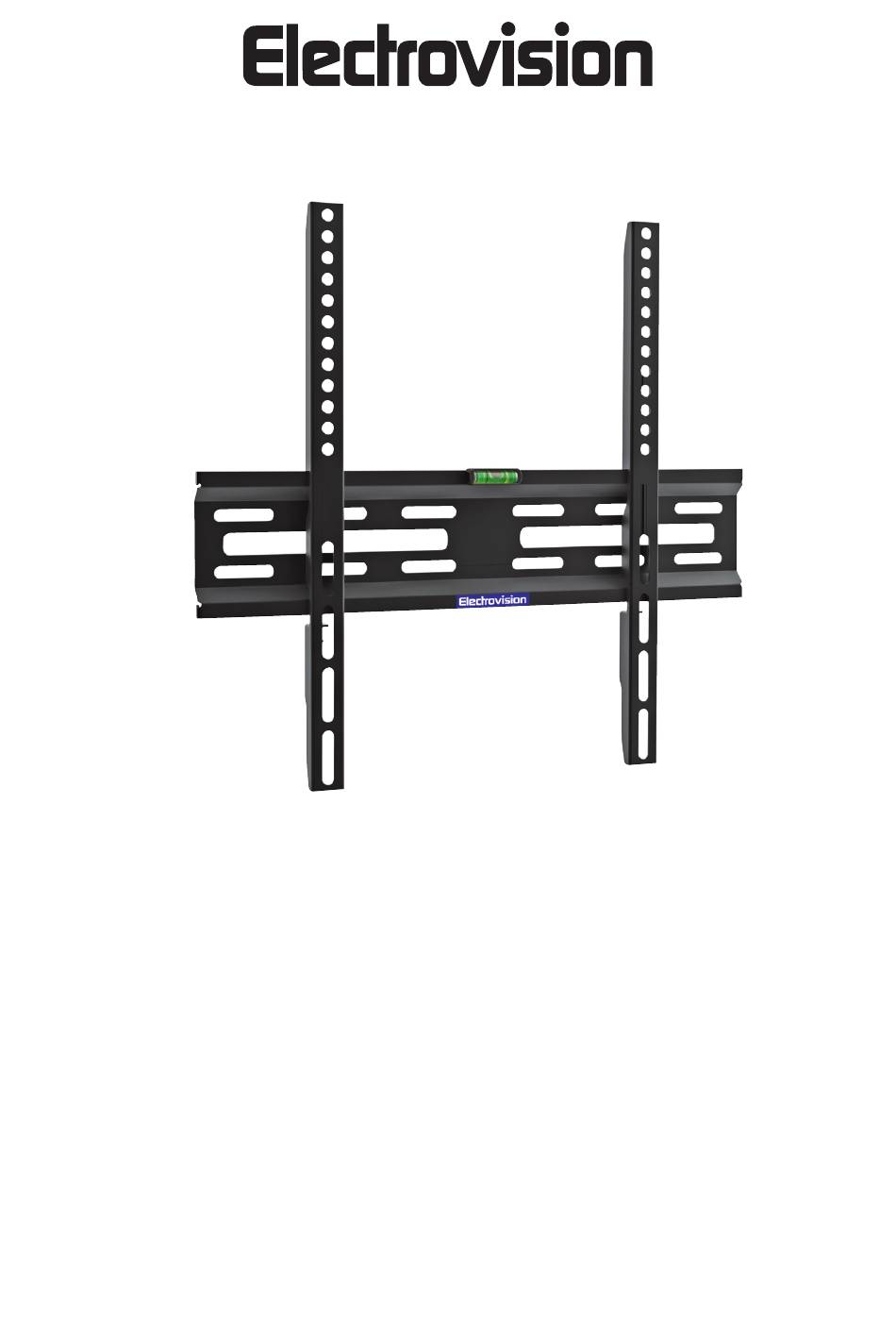

- Page 1 FOR WHITE LOGO A195DB FIXED TV MOUNTING BRACKET Vesa Size : 400 x 400mm User Manual Notice d’Utilisation Thank you for purchasing an Electrovision bracket, please read these instructions carefully and leave with the user of the product for future reference.
- Page 2 IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. BEFORE USE Inspect the product for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately PRODUCT SAFETY •...
- Page 3 TV MOUNTING ACCESSORIES Part Part M4 x 20mm Plug 8 x 40mm 4 M6 x 20mm Washer M8 x 25mm Spirit Level ST6 x 50mm Spacer TOOLS REQUIRED STUD WALL FITTING INSTRUCTIONS • Select a suitable position to mount the frame. •...
- Page 4 12mm / 1/2 inch socket wrench or spanner. ATTACHING BRACKETS TO TV The A195DB TV bracket comes with a range of TV mounting accessories designed to fit the majority of televisions. Depending upon the required parts it may be necessary to use screws A, B or C with the washers (F1) and spacers (G).
- Page 5 If the television has a curved back or includes an obstruction that may prevent the brackets from fitting flush to the back you can place the spacers (G) beneath the brackets to lift away from the back. The brackets can now be secured with screws A, B or C with the washers (F1) if necessary.
- Page 6 If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer’s contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Electrovision, only your retailer can arrange a replacement.
