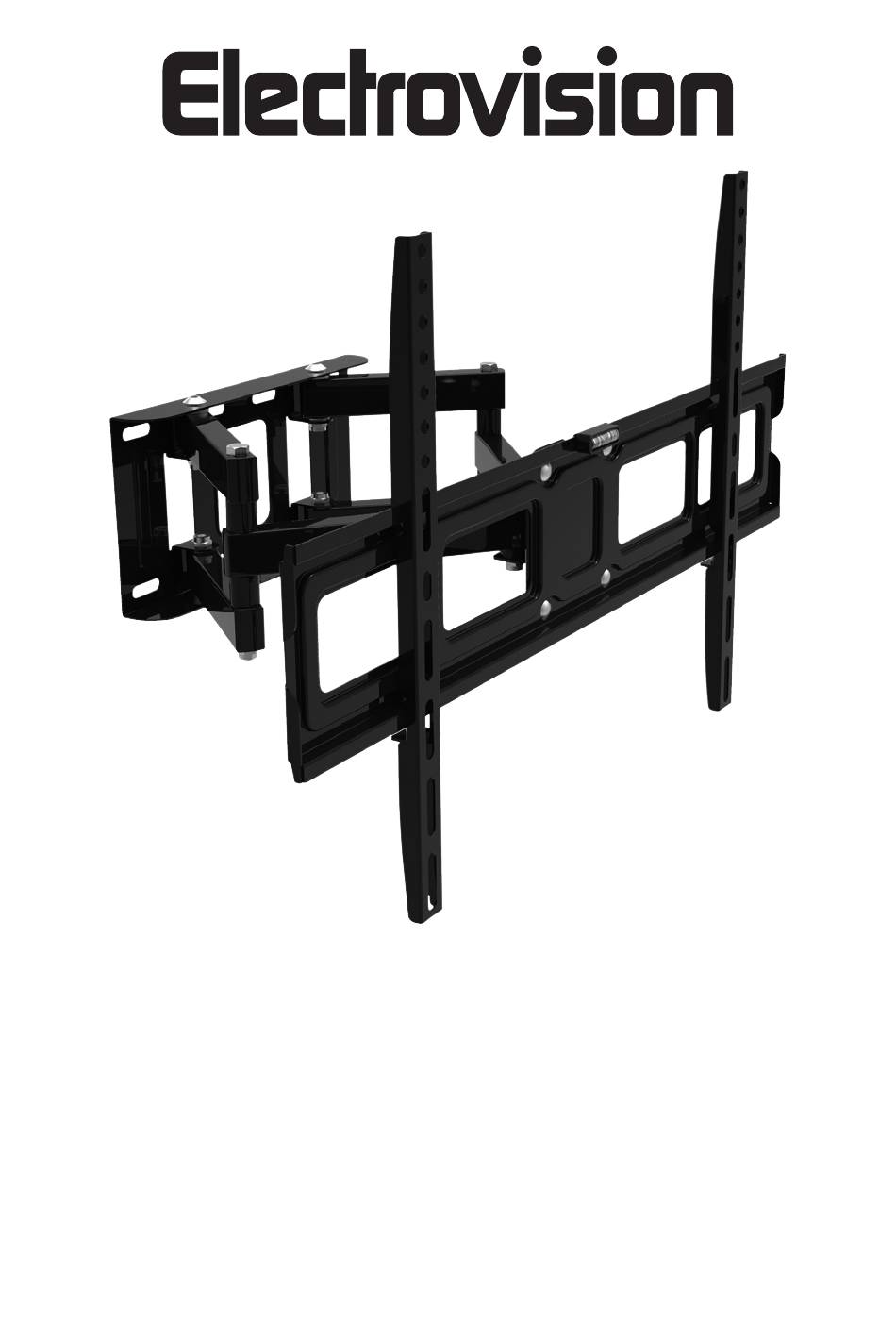

- Page 1 TV Mounting Bracket with Tilt & Swivel Screen Size: 32” - 65” Vesa Size : 600 x 400mm User Manual Thank you for purchasing an Electrovision bracket, please read these instructions carefully and leave with the user of the product for future reference.
- Page 2 IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. BEFORE USE Inspect the product for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately PRODUCT SAFETY •...
- Page 3 TV MOUNTING ACCESSORIES Part Part M4 x 20mm M8 Plug M6 x 20mm M8 Washer M8 x 25mm Spirit Level Washer Spacer M8 Screw TOOLS REQUIRED STUD WALL FITTING INSTRUCTIONS • Select a suitable position to mount the arm. • It is recommended that the arm is mounted using the supplied bolts to the wooden supports behind the plasterboard.
- Page 4 BRICK/CONCRETE WALL FITTING INSTRUCTIONS • Select a suitable position to mount the arm. • Use a stud detector to check for hidden cables, pipes or steelwork. • Place the arm against the wall and mark the holes required. • Drill the holes with a 10mm diameter drill bit to a depth of 50mm. •...
- Page 5 ATTACHING BRACKETS TO CURVED TV The A195M TV bracket comes with a range of TV mounting accessories designed to fit the majority of televisions. Depending upon the required parts it may be necessary to use screws A, B or C with the washers (D) and spacers (H). ATTACHING TV TO ARM Due to the risk of damage or injury it is recommended that a minimum of two people should be used to attach the television to the arm.
- Page 6 If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer’s contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Electrovision, only your retailer can arrange a replacement.
