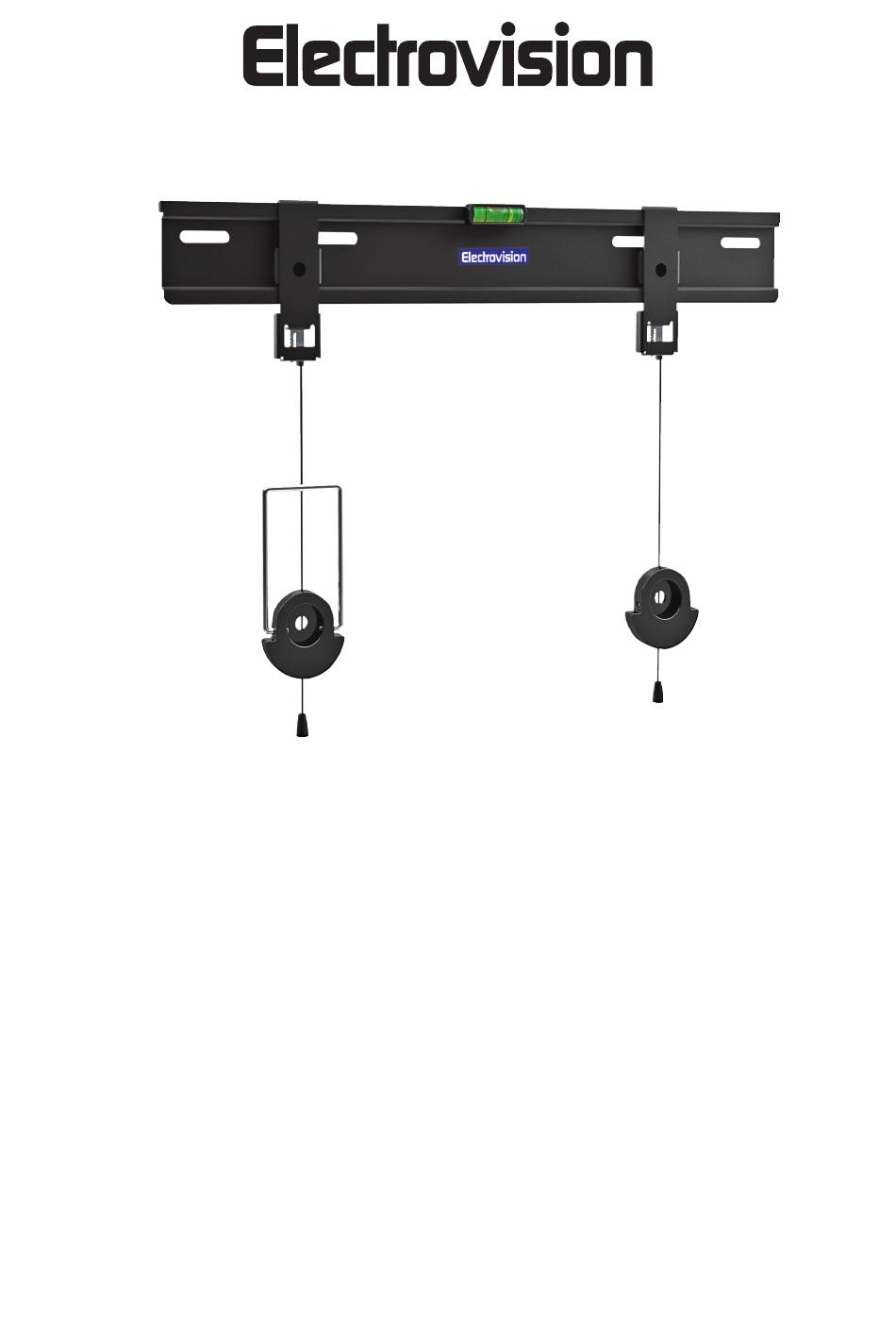

- Page 1 A195CC ULTRA SLIM TV MOUNTING BRACKET Vesa Size : 400 x 400mm User Manual Notice d’Utilisation Thank you for purchasing an Electrovision bracket, please read these instructions carefully and leave with the user of the product for future reference.
- Page 2 IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. BEFORE USE Inspect the product for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately PRODUCT SAFETY •...
- Page 3 TV MOUNTING ACCESSORIES Part Part M4 x 12mm Plug 8x40mm M6 x 12mm M6 Washer M8 x 15mm Spirit Level ST6 x 50mm TOOLS REQUIRED STUD WALL FITTING INSTRUCTIONS • Select a suitable position to mount the frame. • It is recommended that the frame is mounted using the supplied bolts to the wooden supports behind the plasterboard.
- Page 4 50mm ATTACHING BRACKETS TO TV The A195CC TV bracket comes with a range of TV mounting accessories designed to fit the majority of televisions. Depending upon the required parts it may be necessary to use screws A, B or C with the Washer (F1). The television should be laid flat on a soft surface...
- Page 5 ATTACHING BRACKETS TO FRAME Due to the risk of damage or injury it is recommended that a minimum of two people should be used to attach the television to the frame. The television should be tilted slightly backwards and the top hook section of the bracket should be placed on the top rail of the frame.
- Page 6 If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer’s contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Electrovision, only your retailer can arrange a replacement.
