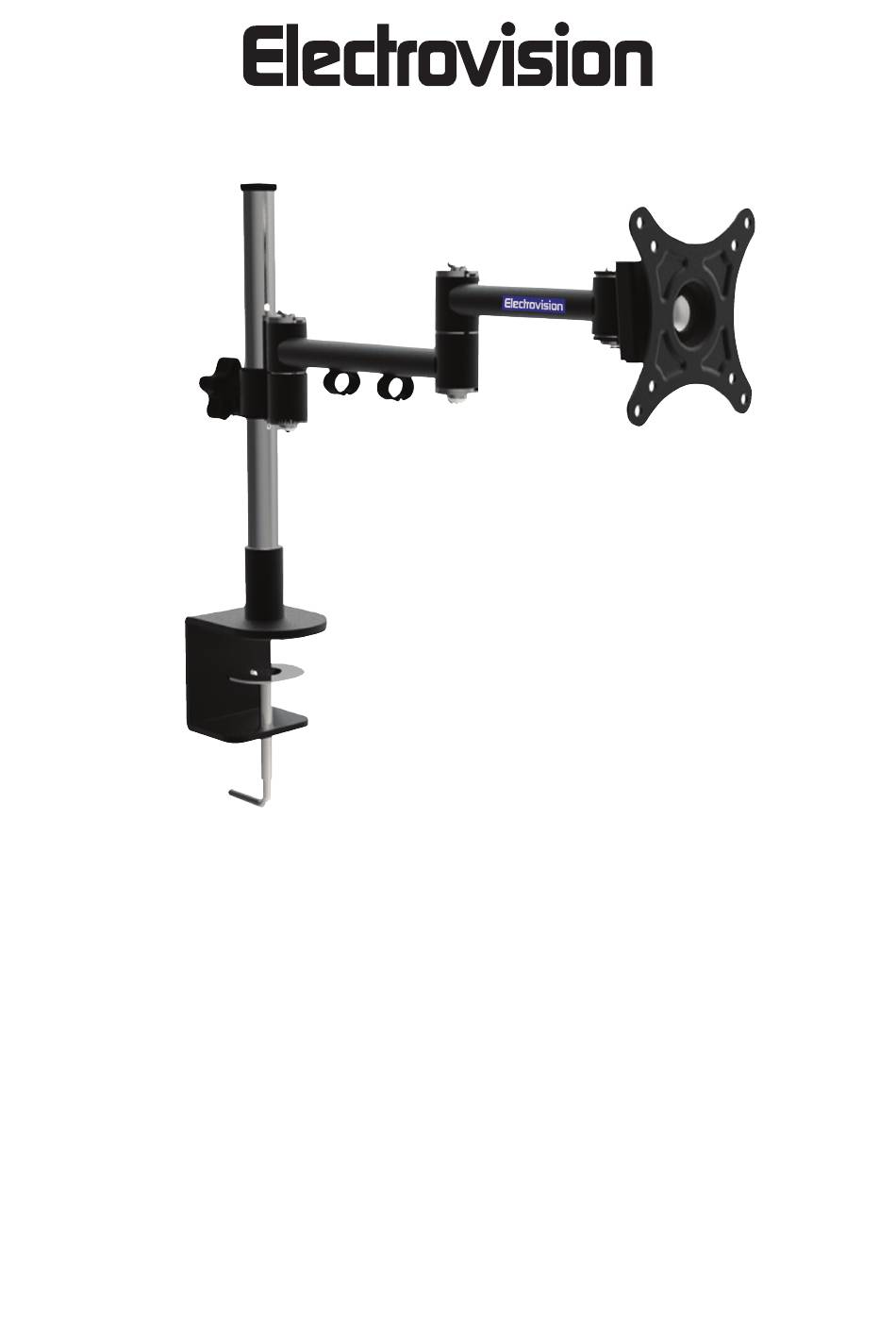

- Page 1 A195G DESK MOUNTING BRACKET Vesa Size : 100 x 100mm User Manual Notice d’Utilisation Thank you for purchasing an Electrovision bracket, please read these instructions carefully and leave with the user of the product for future reference.
- Page 2 IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. BEFORE USE Inspect the product for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately PRODUCT SAFETY •...
- Page 3 TV MOUNTING ACCESSORIES Part Qty No Part M4 x 12mm M6 x 12mm M5 x 12mm M6 Washer FITTING & ASSEMBLY INSTRUCTIONS • Select a suitable position to mount the tv bracket. • It is recommended that bracket is mounted to a secure surface that cannot move or tip over.
- Page 4 (I) into post (G) and tighten fully. Fit end cap (K) to post. Attach Bracket to Television The A195G TV bracket comes with a range of TV mounting accessories designed to fit the majority of televisions. Depending upon the required parts it may be necessary to use screws A, B or C with the washers (D) .
- Page 5 Attach Television to Arm Remove screws (M) from the rear of the bracket. Slide the bracket onto the arm and inster and tighten screws (M).
- Page 6 If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer’s contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Electrovision, only your retailer can arrange a replacement.
