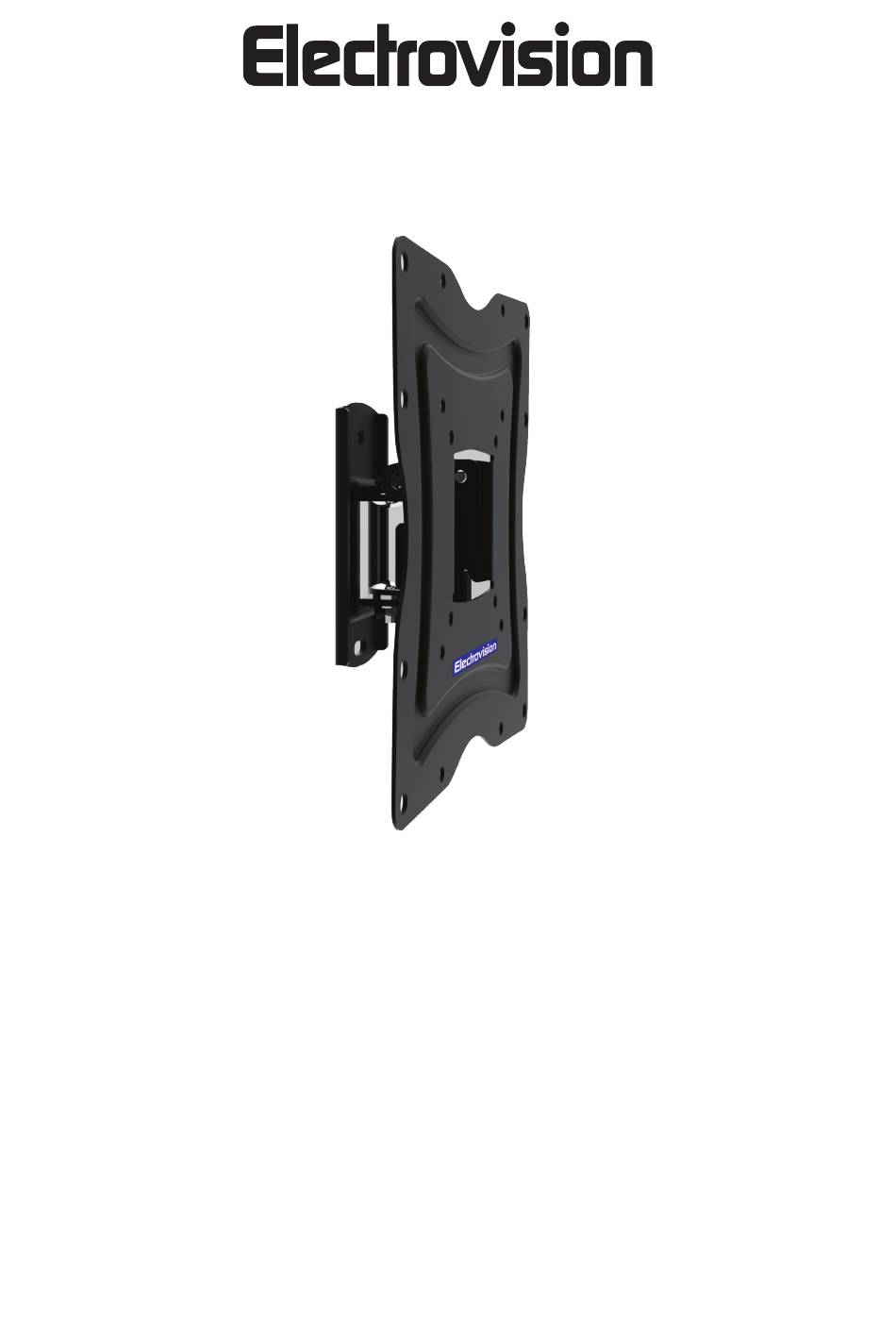

- Page 1 A195FC TILT & SWIVEL TV MOUNTING BRACKET Vesa Size : 200 x 200mm User Manual Notice d’Utilisation Thank you for purchasing an Electrovision bracket, please read these instructions carefully and leave with the user of the product for future reference.
- Page 2 IMPORTANT Installer and Users please note: These instructions should be read carefully and left with the user of the product for future reference. BEFORE USE Inspect the product for any signs of damage. If the product is damaged, DO NOT use it, and contact your supplier immediately PRODUCT SAFETY •...
- Page 3 TV MOUNTING ACCESSORIES Part Part M4 x 12mm Plug 8 x 40mm 2 M5 x 12mm Washer M6 x 12mm ST6 x 50mm TOOLS REQUIRED STUD WALL FITTING INSTRUCTIONS • Select a suitable position to mount the arm. • It is recommended that the arm is mounted using the supplied bolts to the wooden supports behind the plasterboard.
- Page 4 12mm / 1/2 inch socket wrench or spanner. ATTACHING BRACKETS TO TV The A195FC TV bracket comes with a range of TV mounting accessories designed to fit the majority of televisions. Depending upon the required parts it may be necessary to use screws A, B or C with the washers (F1).
- Page 5 ATTACHING TV TO ARM Due to the risk of damage or injury it is recommended that a minimum of two people should be used to attach the television to the arm. Before attaching the TV to the arm, remove the screws (H) from either side of the bracket.
- Page 6 If your product arrives damaged, you must contact the retailer from whom you bought it. The retailer’s contact details will be on the invoice that arrived with the product, or on the e-mail you received when you placed the order. Do not contact Electrovision, only your retailer can arrange a replacement.
