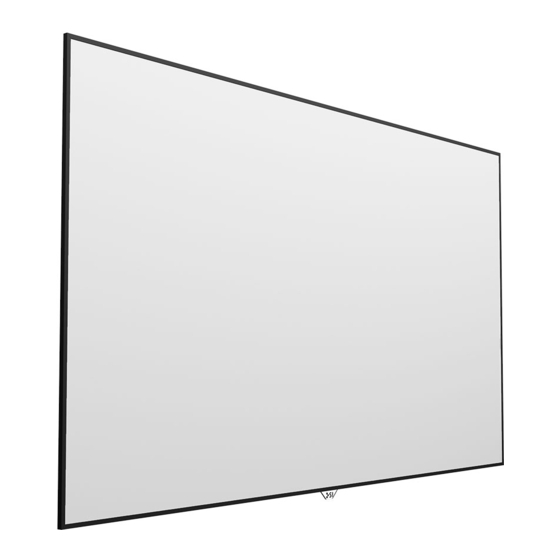

SI Zero Edge Pro Quick Start Manual
Hide thumbs
Also See for Zero Edge Pro:
- Owner's manual (48 pages) ,
- Installation instructions manual (32 pages) ,
- Manual (8 pages)
Subscribe to Our Youtube Channel
Related Manuals for SI Zero Edge Pro
Summary of Contents for SI Zero Edge Pro
- Page 1 Zero Edge Pro Parts in the Box INSTALLERS: PLEASE LEAVE THIS MANUAL WITH THE OWNER.
- Page 2 PARTS IN THE BOX - STANDARD FRAME Installation requires three or more people. The product weighs up to 225 lbs. Please use safe lifting and rigging techniques. Frame Assembly parts (1)Horizontal Frame bottom w/ lights (LED Lights Only) (1)Horizontal Frame top no lights (2)Vertical Frames (2)Horizontal trims (2)Vertical trims...
- Page 3 PARTS IN THE BOX - STANDARD FRAME Hardware Kit (2) Wall (4) Mounting (4) 1/4-20 x 1/4’’ Thumb (4) Thick Corner (4) Thin Corner Brackets Screws Screws Screws Brackets w/ set Brackets w/ set (Small trim only) screws screws 1/8’’ & 5/32’’ 4X Gloves Bungees Acrylic Logo...
- Page 4 PARTS IN THE BOX - SPLIT FRAME Installation requires three or more people. The product weighs up to 225 lbs. Please use safe lifting and rigging techniques. Frame Assembly parts (2)Horizontal Frame bottom (2)Horizontal Frame top (2)Vertical Frames (2)Horizontal trims (2)Vertical trims Vertical Support Bar (used for only some Standard frames)
- Page 5 PARTS IN THE BOX - SPLIT FRAME Hardware Kit (2) Wall (4) Mounting (4) 1/4-20 x 1/4’’ Thumb (4) Thick Corner (4) Thin Corner Brackets Screws Screws Screws Brackets w/ set Brackets w/ set (Small trim only) screws screws 1/8’’ & 5/32’’ 4X Gloves Bungees Acrylic Logo...
- Page 7 NOTES Please visit support.screeninnovations. Use this QR code to see the video Use this QR code to see the com to find all the updated documents, tutorials for Black Diamond or Short video tutorials for Slate material. drivers and tutorial videos. Throw snap attachment method For more technical support questions - Call: 512.832.6939 or email: support@screeninnovations.com Hours of Support: 7:30am - 5pm CST | screeninnovations.com...
- Page 8 Screen Innovations 9715-B Burnet Rd, Suite 400 Austin, TX 78758 512.832.6939 www.screeninnovations.com...
