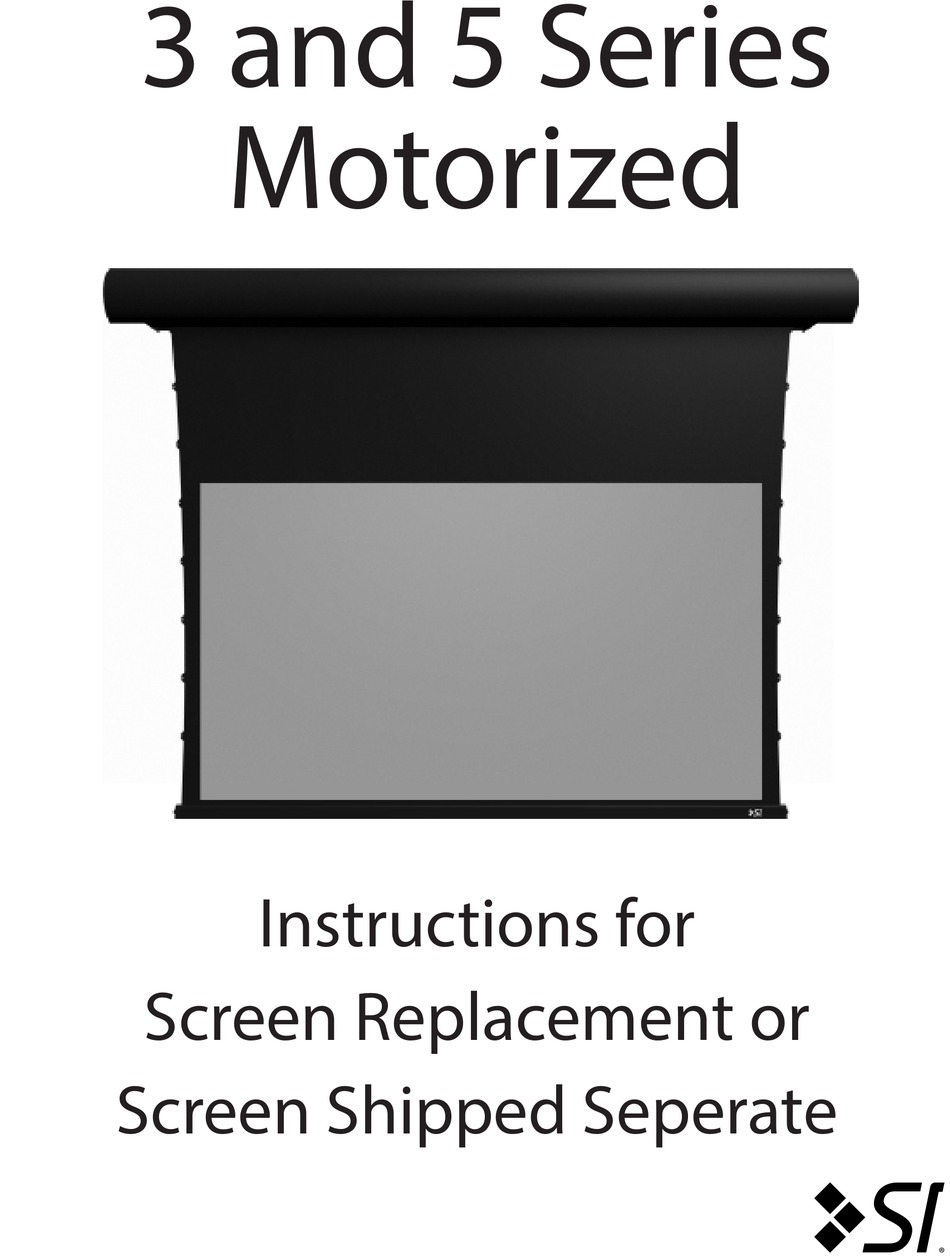

- Page 1 3 and 5 Series 5 SERIES MOTORIZED Motorized Instructions for Screen Replacement or Screen Shipped Seperate ®...
- Page 2 APPLY S/N STICKER HERE ® LIMITED ONE YEAR WARRANTY ON SCREEN INNOVATIONS PRODUCTS Screen Innovations warrants its products, to the original purchaser only, to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser provided they are properly operated according to Screen Innovations’...
- Page 3 Installation requires 3 or more people. Bend knees when lifting. 512-832-6939 9715-B Burnet Road Suite 400, Austin,TX 78758 screeninnovations.com...
-
Page 4: Table Of Contents
Table of Contents REMOVE TRIM � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5 DISCONNECT POWER AND CONTROLS (IF REPLACING A SCREEN) �... -
Page 5: Remove Trim
REMOVE TRIM DISCONNECT POWER BEFORE SERVICING! Remove the larger trim piece from the case as shown. 03312017SR... -
Page 6: Disconnect Power And Controls (If Replacing A Screen)
DISCONNECT POWER AND CONTROLS (IF REPLACING A SCREEN) Disconnect the control, power, and grounding cables from the left side of the case. NOTE: On above ceiling applications with pigtails/hardwired you will need to access the junction box above the ceiling through the ceiling access hatch to disconnect and pull the wire through the end plate. -
Page 7: Remove Screen (If Replacing A Screen)
REMOVE SCREEN (IF REPLACING A SCREEN) Remove the motor retaining ring from the left end of the case. Turn the teeth on the idler counterclockwise with the included tool to retract the idler. Then lower the screen asembly down and out of the case. 03312017SR... - Page 8 3 1/4’’ (8.26cm) 4 1/2’’ (11.43 cm)
-
Page 9: Small Tube
SMALL TUBE REMOVE MOTOR (IF REPLACING A SCREEN) 3 1/4’’ (8.26cm) SMALL TUBE Slide the motor out to get access to the retaining screws. Remove and set aside the retaining screws, then completely remove the motor. 03312017SR... -
Page 10: Remove Idler (If Replacing A Screen)
REMOVE IDLER (IF REPLACING A SCREEN) 3 1/4’’ (8.26cm) SMALL TUBE Pull the idler assembly out to access the screws, then remove the screws, and finally remove the idler assembly. -
Page 11: Unpack Replacement Screen
UNPACK REPLACEMENT SCREEN 3 1/4’’ (8.26cm) SMALL TUBE WEAR GLOVES WHEN HANDLING SCREEN MATERIAL. Open the fanfold box and discard the foam. Then remove the straps and screws from the wieght bar cradles. Then remove the screws from the shipping end plates. -
Page 12: Install Motor
INSTALL MOTOR 3 1/4’’ (8.26cm) SMALL TUBE Align Key Slide the motor partially into the tube and secure the black plastic piece on the motor to the tube with the phillips head screws. Then push the motor all the way into the tube making sure to align the key on the motor with the key in black piece scured to the tube. -
Page 13: Install Idler
INSTALL IDLER 3 1/4’’ (8.26cm) SMALL TUBE Slide the idler into the opposite end of the tube and secure with 3 phillips head screws. Make sure the idler is retracted all the way in preperattion for installation into the case. Turn to page 18 to install the screen in the case. 03312017SR... -
Page 14: Large Tube
LARGE TUBE 4 1/2’’ REMOVE MOTOR (IF REPLACING A SCREEN) (11.43 cm) LARGE TUBE Pull the motor assembly completely out of the tube. REMOVE IDLER (IF REPLACING A SCREEN) Pull the idler assembly completely out of the tube. -
Page 15: Unpack Replacement Screen
UNPACK REPLACEMENT SCREEN 4 1/2’’ (11.43 cm) LARGE TUBE WEAR GLOVES WHEN HANDLING SCREEN MATERIAL. Open the fanfold box and discard the foam. Then remove the straps and screws from the wieght bar cradles. Then remove the screws from the shipping end plates. -
Page 16: Install Motor
INSTALL MOTOR 4 1/2’’ (11.43 cm) LARGE TUBE Align Key Push the motor all the way into the tube making sure to align the key on the motor with the key in black piece inserted into the tube. -
Page 17: Install Idler
INSTALL IDLER 4 1/2’’ (11.43 cm) LARGE TUBE Slide the idler assembly into the opposite end of the tube. 03312017SR... -
Page 18: Install Screen
INSTALL SCREEN WEAR GLOVES WHEN HANDLING SCREEN MATERIAL. Correct cable exit location Push the motor into the motor bracket at the left end of the case taking care to make sure the motor power and control cables do not become pinched and exit at about 1 o-clock as shown. - Page 19 INSTALL SCREEN WEAR GLOVES WHEN HANDLING SCREEN MATERIAL. Raise the right end up and align the idler shaft with the bushing on the right side of the case, then turn the teeth on the idler clockwise to extend the idler shaft into the bushing hole.
-
Page 20: Reconnect Power And Controls
RECONNECT POWER AND CONTROLS Plug in the motor control, power, and grounding wires making sure all cables are routed away from the moving tube. -
Page 21: Reset Lower Limit
RESET LOWER LIMIT Desired Drop Projected Image SET LOWER LIMIT NORMAL OPERATION SET UPPER LIMIT Plug in the wall switch to any port on the control board, slide the switch on the back to the lower position. Then hold the down button to lower the screen to the desired drop. -
Page 22: Reset Upper Limit
RESET UPPER LIMIT DO NOT SET UPPER LIMIT HIGHER THAN SHOWN! SET LOWER LIMIT NORMAL OPERATION SET UPPER LIMIT Slide the switch on the back to the upper position. Then hold the up button to raise screen up into the case as shown. When the screen is in the correct position then slide the switch down to the normal operating position. -
Page 23: Install Trim
INSTALL TRIM Install the trim as shown and test conrols to make sure the screen operates properly. 03312017SR... - Page 24 NOTES: 9715-B Burnet Road Suite 400, Austin,TX 78758 Tel: 512-832-6939 Fax: 512-832-6136 www.screeninnovations.com...
