Thank you for purchasing a Williams by Bachmann® locomotive. This locomotive has been manufactured to provide

years of use and enjoyment. Please follow the simple instructions below.

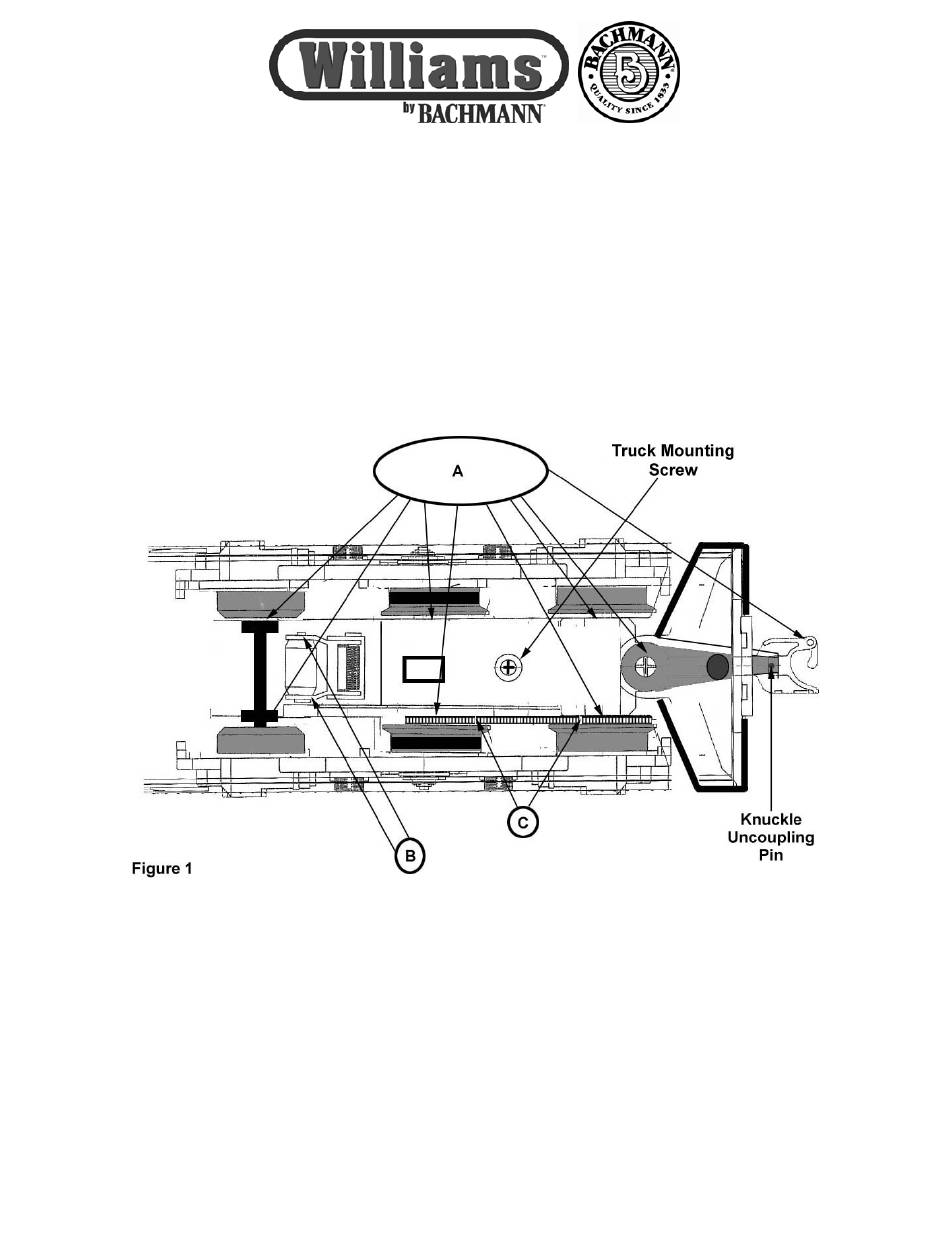

This locomotive has been greased and tested before leaving the factory. Before operating, please lightly lubricate the

points shown in the diagram below. Do not over-lubricate and take extra care to avoid getting lubricants on the wheel

surfaces or traction tires.

1. For the axles and coupler pivot points Marked A, we recommend that you lubricate with a small amount of light

oil such as Bachmann E-Z Lube® #99984 Light Gear Oil. Do not over-lubricate.

2. For areas that require electrical flow, such as roller pick-ups Marked B, please use Bachmann E-Z Lube®

#99981 Conductive Contact Lube. Never use any Teflon® based oil on these areas because this type oil has

insulating properties.

3. For the gears Marked C we recommend that you lubricate with a small amount of heavy gear oil such as

Bachmann E-Z Lube® #99983 Heavy Gear Oil. Do not over-lubricate.

Bachmann Industries, Inc.

1400 East Erie Avenue, Philadelphia, PA 19124 USA

www.bachmanntrains.com

Customer Service Telephone 800-356-3910

SD-90 DIESEL LOCOMOTIVE INSTRUCTIONS

– Page 1 of 2 –

Page 1 Bachmann E-Z Lube® #99984 Light Gear Oil. Do not over-lubricate. 2. For areas that require electrical flow, such as roller pick-ups Marked B, please use Bachmann E-Z Lube® #99981 Conductive Contact Lube. Never use any Teflon® based oil on these areas because this type oil has insulating properties.
Page 2 We recommend that you lubricate as directed on page 1 every 10 hours of operation. In addition, you also should check the motor gearbox every 25 hours. After gaining access to the gearbox as instructed above, you can inspect the gears and apply any necessary lubrication. We recommend Bachmann E-Z Lube® #99982 Grease, or equivalent. Traction Tire Replacement Our traction tires are very durable and should not need replacing very frequently.
Page 3 Bachmann Industries, Inc. 1400 East Erie Ave, Philadelphia, PA 19124 USA www.bachmanntrains.com Customer Service Telephone 800-356-3910 Part Number Description Number Used SD-90 BODY & BODY PARTS 804-M001R2 Metal Frame 1-30080DPT 1-30080DPT Screw (Mounts Body to Frame) Screw (Mounts Body to Frame)
