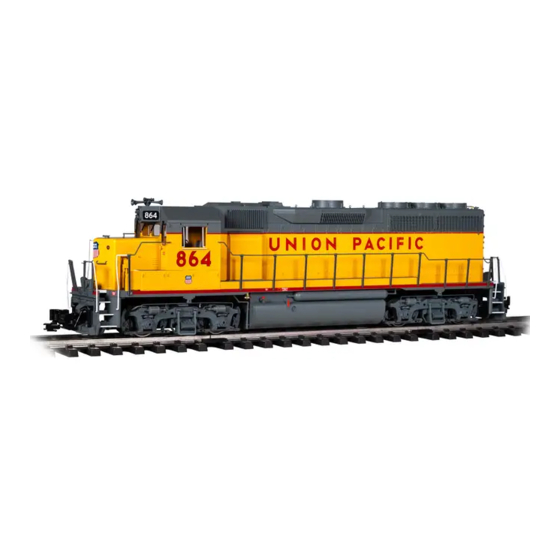

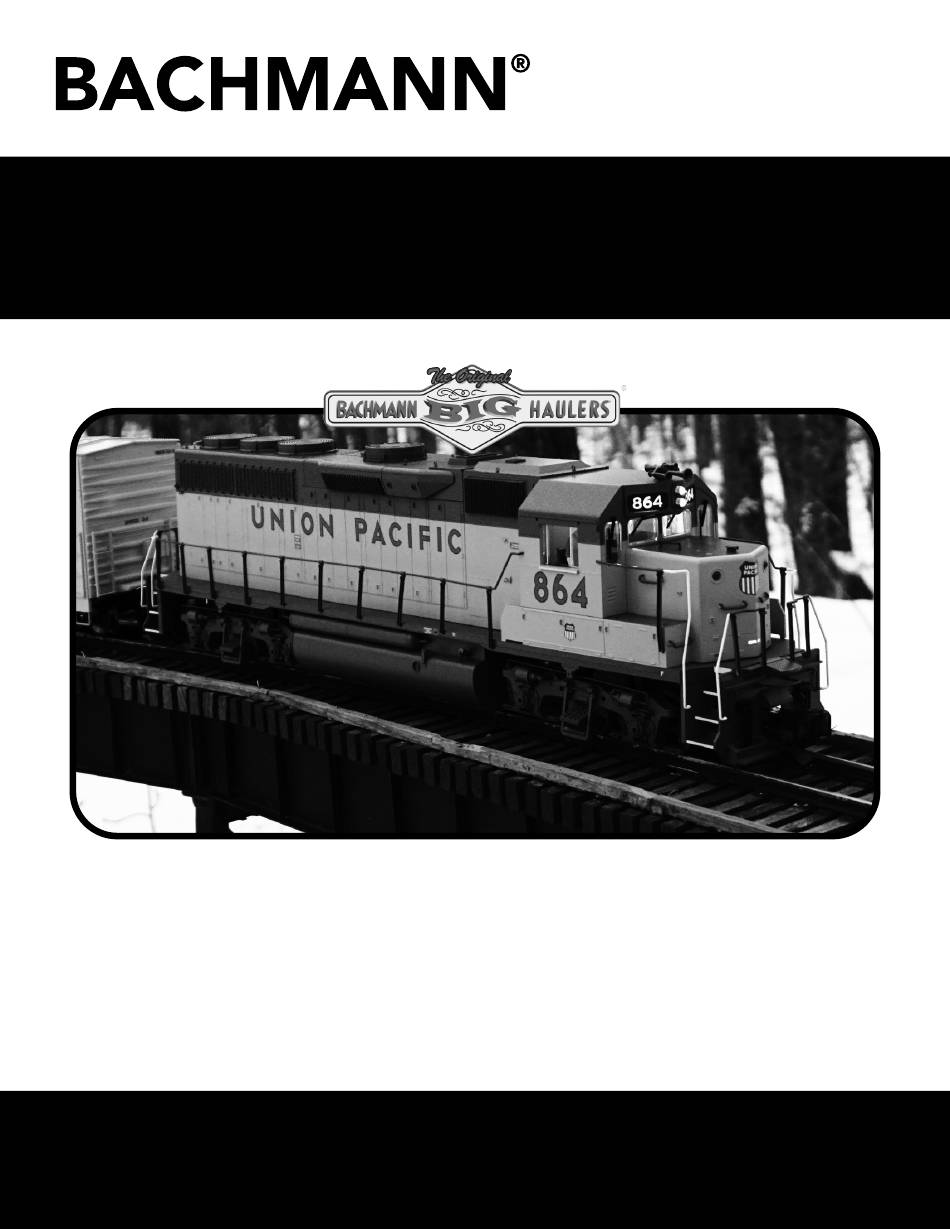

- Page 1 EMD GP40 OPERATING INSTRUCTIONS Large Scale Modern Diesel Locomotive DCC Ready, RC Ready, Sound-Ready, and Onboard Battery-Ready 1:29 Scale...
- Page 2 This should be repeated for each of the four axles at regular intervals based on the amount of operation your locomotive sees, to ensure continued smooth running. Note: We recommend that you use Bachmann’s line of E-Z Lube products which include #99984 Light Gear Oil, #99983 Heavy Gear ®...
-
Page 3: Smoke Unit
ON. SMOKE UNIT The Bachmann GP40 comes with a fan-assisted smoke unit that has two parts; the smoke unit and the electronics that control the smoke unit. -
Page 4: Pin Definitions
PLUG-AND-PLAY CIRCUIT BOARD This Bachmann GP40 locomotive comes equipped with a nonproprietary plug-and-play electronic circuit board. This is designed to accommodate your chosen aftermarket plug-and-play products. As delivered, the locomotive has a (DC) Jumper PC Board in this socket and will operate on standard DC-powered track setups without modification. All of the locomotive’s lighting functions are on when the (DC) Jumper PC Board is in the socket and the LIGHT switch is ON. - Page 5 Ditch lights came into frequent use in the 1980s and were mandated in 1997. Most GP40s came from the factory without ditch lights but as the years progressed most railroads added them. The Bachmann GP40 has provisions to easily add ditch lights should you desire. On one side of the socket are two sets of solder pads labeled F4 and F5.
- Page 6 ADDING AN AFTERMARKET SOUND SYSTEM This locomotive has a speaker mounted underneath the radiator grille. If your sound system is designed for plug-and-play operation, remove the (DC) Jumper PC Board and plug in your sound system. If your sound system does not provide plug-and-play operation, continue to use the (DC) Jumper PC Board and connect the sound system wires to the solder pads labeled Right W and Left W on the right-hand side of the main PC board.
- Page 7 Disclaimer: Bachmann Industries Inc. will not be liable for any damage incurred to any locomotive or any other personal property resulting from the use of a third-party battery or any other charging system used to operate this locomotive. To the extent you choose, at your own risk, to use a third-party battery or charging system to operate this locomotive please follow all instructions that accompany either the third-party battery or charging system.
- Page 8 Moat Way, Barwell Leicestershire LE9 8EY Tel: 44-1455-841756 Fax: 44-1455-841787 GERMANY BACHMANN INDUSTRIES EUROPE, LTD. Niederlassung Deutschland Am Umspannwerk D-90518 Altdorf bei Nürnberg GERMANY Tel: 49-9187-9722-0 Fax: 49-9187-9722-22 Bachmann Trains... Now that’s the way to run a railroad! ® Printed in China G919X-IS001...
