SPLASHPROOF SPEAKER SYSTEM
DESCRIPTION

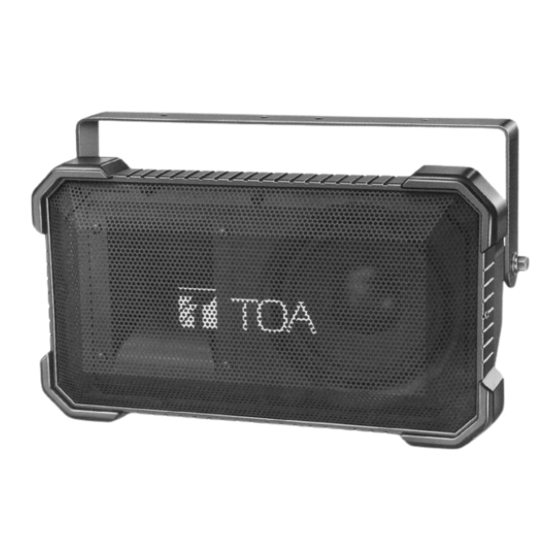

The TOA BS-20W is a splashproof type speaker system
designed especially for railway station platform applications.
It incorporates a 13 cm (5.2") woofer and a piezo driver unit
with constant directivity horn, ensuring a uniform (30°
horizontal by 90° vertical) sound dispersion pattern.
The BS-20W has a splashproof ABS resin enclosure and a
painted finish to protect against ultraviolet rays. In addition,
its speaker unit is waterproofed.
Applications include high humidity/temperature areas, as
well as outdoors or under eaves where the speaker is likely
to be exposed to rain.
TOA SPEAKER SYSTEM
BS-20W
FEATURES
1. Sealed type enclosure.
2. One 13 cm (5.2") diameter splashproof cone speaker
3. Constant directivity horn plus splashproof piezo driver
4. 20W rated power input and 94dB/w/m output sound
5. 100 Hz to 20 kHz frequency response.
6. Rotaly switch impedance changing (20W, 15W, 10W, 5W
7. Zinc-coated steel plate black-painted punching
8. Stainless steel angle bolts.
unit (90° x 30°).
pressure level.
on 100V)
net/mounting bracket
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Toa BS-20
Summary of Contents for Toa BS-20
- Page 1 SPLASHPROOF SPEAKER SYSTEM DESCRIPTION The TOA BS-20W is a splashproof type speaker system designed especially for railway station platform applications. It incorporates a 13 cm (5.2") woofer and a piezo driver unit with constant directivity horn, ensuring a uniform (30°...
- Page 2 Select the desired impedance (wattage) by rotating the rotary switch with a flat head screwdriver. After setting the impedance, be sure to replace the cap as it keeps the speaker splashproof. (Any change in impedance maintains the siren sound pressure level at 90dB/m or better.)
