Toa BS-1034 Specifications

BS-1034/1034S
Wall Mount Speaker System
BS-1034
DESCRIPTION

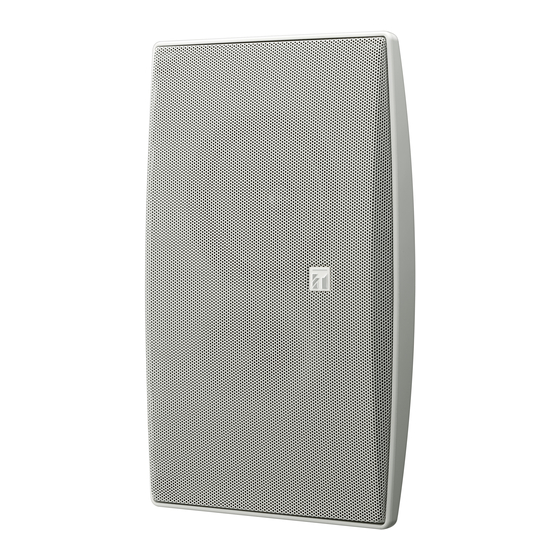

The BS-1034/1034S are wall-mount speakers matched with
a supplied plug-in speaker receptacle, for easy installation. The
10W rated input BS-1034/1034S combine a low-frequency 5" (12cm)
cone-type speaker and a high-frequency balanced dome-type
speaker. An M4 screw terminal input connector allows easy
connections. The speakers are driven on a high-impedance (100V or
70V) line, with rated inputs.
provided on the BS-634T.
are based on the Golden Ratio (1: 1.618). A low profile blends in well
with room décor. Both vertical and horizontal installations are possible.
Enclosure and grille net colour is off-white, except on the BS-1034S,
which comes with a silver net grille.
FEATURES
• Innovative speaker design
• Low profile
• Beautiful design due to the Golden Ratio (1: 1.618)
• Easy and quick installation
• Thanks to the ingenious location of the TOA logo, the speaker
creates a distinctly different impression depending on whether it is
installed horizontally or vertically.
• Two colours selectable: off-white, which matches any interior style,
and silver, which adds a quality appearance.
• Ideally suited for BGM and announcements
A selectable attenuation function is
The speaker enclosure's design proportions
APPEARANCE AND
DIMENSIONAL DIAGRAM
BS-1034S
Installation view
Note: As a force of approx. 18 kg (39.68 lb)
is applied to the speaker receptacle at the
time of speaker installation, attach it in a
location durable enough to withstand the
force.
Wiring Diagram
N R COM
3-wire connection
HOT COM
2-wire connection
HOT
COM
80
210 (8.27")
(3.15")
Enlarged view of
speaker receptacle
Speaker
receptacle
(accessory)
BS-1034
Speaker
receptacle
1.7kΩ
N
HOT
3.3kΩ
R
COM
COM C
(Factory–preset wiring)
N
R
C
Speaker
Speaker
receptacle
Attenuator
1.7kΩ
N
N
R
R
C COM
C
(Factory–preset wiring)
Speaker
Speaker
Matching
transformer
Rotary switch
receptacle
500Ω
N 1kΩ
2kΩ
R
3.3kΩ
10kΩ
C
COM
(Factory–preset wiring)
Note: Never connect to the 500 Ω in a 100 V line system.
Lock screw
70 (2.76")
Ceiling or projection
of a structure
BS-634
Speaker
Matching
transformer
BS-634T
Matching
transformer
BS-1034/1034S
Network
cercuit
8Ω
0Ω
