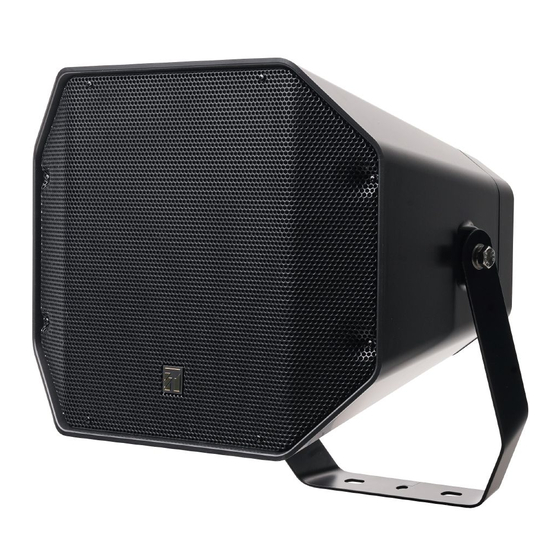

Toa CS-760B-AS Operating Instructions

8. SPECIFICATION

Model No. CS-760B-AS
Rated Input
100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
Rated Impedance
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
Sensitivity
Maximum
Sound Pressure Level
Frequency Response
Crossover Frequency
Directivity Angle
Speaker Component
Dust/Water Protection
Connection
Finish Enclosure ABS, black, paint coating
Punched net Surface-treated steel plate,
black, paint coating
Bracket Stainless steel, black, paint coating
Dimension 388 (w) x 310 (h) x 367 (d) mm (15.28" x 12.20" x 14.45")
Weight
Note: The design and specifications are subject to change without notice for improvement.
• Optional products
Pole mount bracket: SP-131
Speaker mount bracket: SP-201
Pole band: YS-60B
Speaker stand: ST-33B
Traceability Information for Europe
Manufacturer:
TOA Corporation
7-2-1, Minatojima-Nakamachi, Chou-ku, Kobe, Hyogo, Japan
CS-760W-AS
60 W (High Impedance)
100 dB (1W, 1m)
117 dB (60W, 1m)
100 Hz - 20,000 Hz
2,5 kHz
Horizontal: 90˚ , Vertical: 80˚
Low frequency : 16 cm (6") cone type
High frequency : 25 mm (1") dome tweeter
IP66
Speaker cord (Hot: Black, Com: White)
ABS, white, paint coating
Surface-treated steel plate,
white, paint coating
Stainless steel, white, paint coating
7.4 kg (16.31 lb)
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg, Germany
URL: http:/www.toa.com.sg/
133-01-00272-00
SPEAKER SYSTEMS
Thank you for purchasing TOA's Speaker Systems.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully
read all the instruction in this section for correct
and safe operation.
• Be sure to follow all the precautions in this
section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep manual handy for future
reference.
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
When Installing the Unit
• Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling
down and causing personal injury and/or property
damage.
• Install the unit only in a location that can
structurally support the weight of the unit and the
mounting bracket. Doing otherwise may result in
the unit falling down and causing personal injury
and/or property damage.
• Since the unit is designed for fully out-door use
and have IP66 for IP rating. Please keep the unit
down face to keep the weather resistant capability
continuous.
• Owing to the unit's size and weight, be sure that at
least two person are available to install the unit.
Failure to do so could result in personal injury.
• Do not use other methods than specified to mount
the bracket. Extreme force is applied to the unit and
the unit could fall off, possibly resulting in personal
injury.
• Use screw that are appropriate for the ceiling's or
wall's structure and composition. Failure to do so
may cause the unit fall, resulting in personal injury.
OPERATING INSTRUCTIONS
CS-760B-AS
CS-760W-AS
• Ensure that all screws are securely tightened. If
they are not tightened or firmly secured after
installation, the unit could fall down, possibly
resulting in personal injury.
• Use the specified mounting bracket in combination.
Doing otherwise may cause the unit or component
to fall off, resulting in personal injury.
• Do not mount the unit in locations exposed to
constant vibration. The mounting bracket can be
damage by excessive vibration, potentially causing
the unit to fall, which could result in personal injury.
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
When Installing the Unit
• When installing the unit, be sure to handle it with
two or more persons. Falling or dropping unit may
cause personal injury.
• To avoid electric shocks, be sure to switch off the
amplifier's power when connecting speakers.
• Do not place heavy objects on the unit as this may
cause it to fall or break which may result in
personal injury and/or property damage. In
addition, the object itself may fall off and cause
injury and/or damage.
• Make sure that the volume control is set to
minimum position before power is switched on.
Loud noise produced at high volume when power
is switched on can impair hearing.
• Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn cause heat to
generate and result in a fire.
