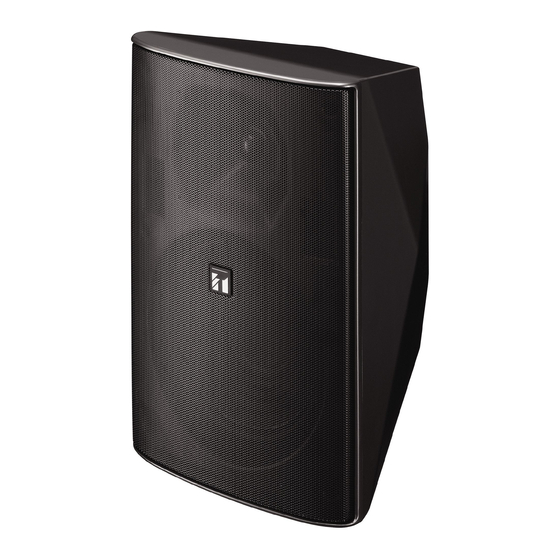

SPEAKER SYSTEMS
Thank you for purchasing TOA's Speaker System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
OPERATING INSTRUCTIONS
F-2000B
F-2000BT
F-2000BTWP
F-2000W
F-2000WT
F-2000WTWP
533-06-146-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-2000BT and is the answer not in the manual?

Questions and answers

Related Manuals for Toa F-2000BT

Summary of Contents for Toa F-2000BT

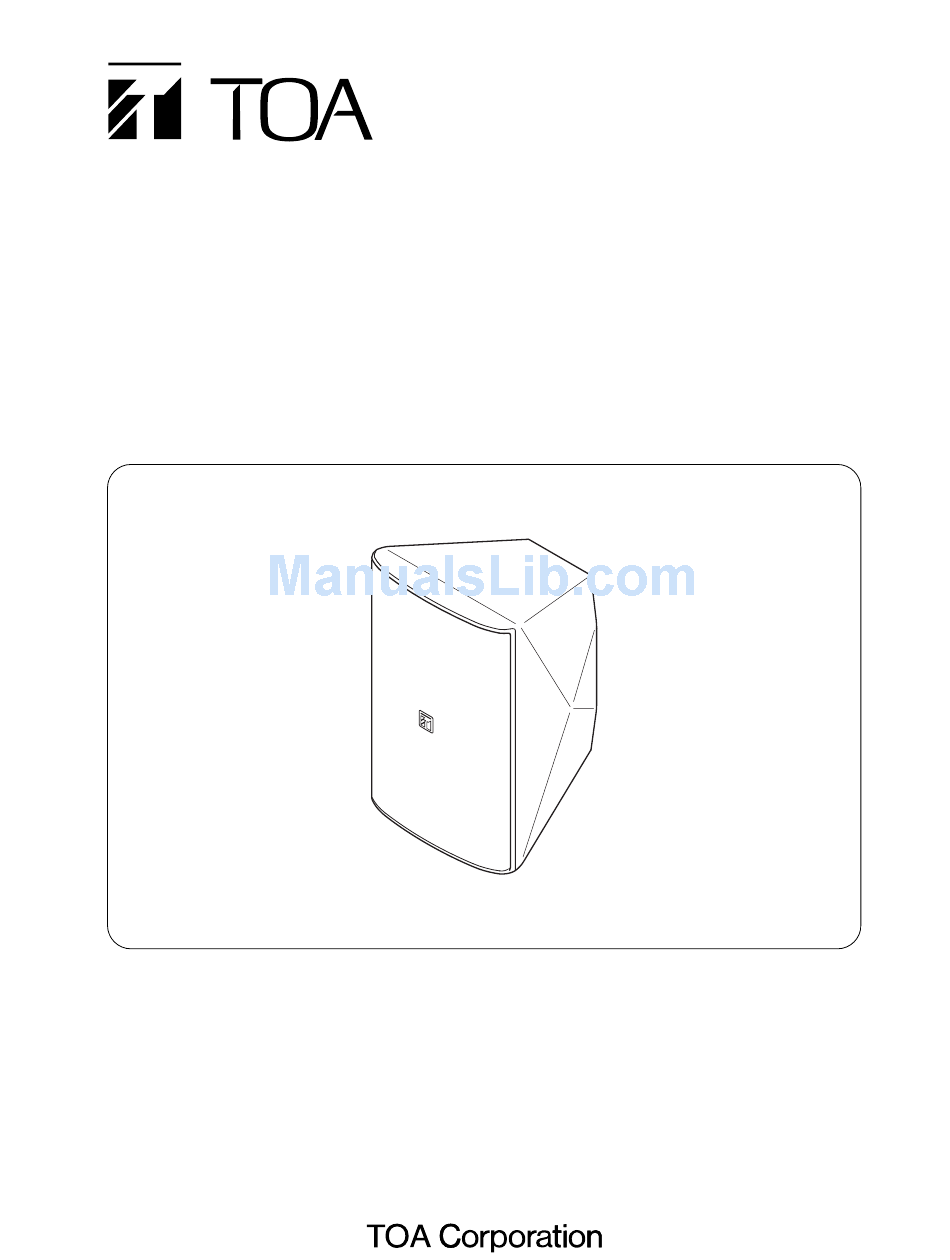

  • Page 1 SPEAKER SYSTEMS Thank you for purchasing TOA's Speaker System. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. OPERATING INSTRUCTIONS F-2000B F-2000BT F-2000BTWP F-2000W F-2000WT F-2000WTWP 533-06-146-20...

  • Page 2: Table Of Contents

    2. GENERAL DESCRIPTION 3. FEATURES ... 4 4. DIMENSIONAL DIAGRAM 5. IMPEDANCE CHANGE (F-2000BT, F-2000BTWP, F-2000WT, and F-2000WTWP only)... 5 6. ABOUT THE INPUT OVERLOAD PROTECTION CIRCUITRY (F-2000B and F-2000W only)... 5 7. NOTES ON OUTDOOR INSTALLATION (F-2000BTWP and F-2000WTWP only)... 6 8.

  • Page 3: Safety Precautions

    • (F-2000B, F-2000BT, F-2000W, F-2000WT only) Since the unit is designed for in-door use, do not install it outdoors. If installed outdoors, the aging of parts causes the unit to fall off, resulting in personal injury.

  • Page 4: General Description

    • Both the F-2000BTWP and F-2000WTWP feature a waterproof design (IPX4 standard) for protection from any adverse effects of outdoor installations. Applies to the F-2000BTWP and F-2000WTWP. Applies to the F-2000B, F-2000BT, F-2000W, and F-2000WT. 4. DIMENSIONAL DIAGRAM clusters and horizontal ceiling mounting*...

  • Page 5: Impedance Change

    5. IMPEDANCE CHANGE (F-2000BT, F-2000BTWP, F-2000WT, and F-2000WTWP only) To change the impedance, use a standard screwdriver to rotate the rotary switch on the speaker's rear to select the desired input power. Note: The switch is factory-preset to 170 .

  • Page 6: Notes On Outdoor Installation

    7. NOTES ON OUTDOOR INSTALLATION • Be sure to mount the speaker in a vertical (portrait-style) orientation. • Adjust the speaker's tilt angle within the shaded range shown below: [Wall and pole: 0º horizontal to 45º downward] • Install the speaker in locations exposed to an ambient temperature range of –10ºC to +50ºC. Exceeding this range could cause speaker failure.

  • Page 7: Installation

    8. INSTALLATION 8.1. Using the Supplied Brackets The speaker system is supplied with the following brackets. Use these brackets properly depending on the installation location and intended application. 8.1.1. When using only the supplied brackets 8.1.2. When using both the supplied and optional mounting brackets 8.2.

  • Page 8: Wall Mounting

    8.3. Wall Mounting When adjusting horizontal and vertical angles: Use the supplied wall bracket, joint bracket, and speaker bracket to permit adjustment of the horizontal and vertical* speaker coverage angles. * Vertical installation. Horizontal: Max. 70º, Vertical: Max. 45º downward Horizontal installation.
  • Page 9 Step 2. Attach the joint bracket to the wall bracket using the supplied screws, adjust the horizontal speaker angle, then tighten the screws. Note: Match the orientation of the arrows on both the wall bracket and joint bracket. Step 3. Attach the speaker bracket to the speaker's rear using the supplied screws. Note: Attach the speaker bracket according to the speaker mounting orientation.

  • Page 10: Ceiling Mounting

    8.4. Ceiling Mounting Vertical orientation Use the supplied joint bracket and speaker bracket. Note Speaker coverage angles can only be adjusted in the vertical direction (Max. 45º downward). Adjust the speaker's tilt angle within the shaded range shown below: * Changing the orientation of the front panel logo The front panel logo is affixed to the mesh net using double-faced tape.
  • Page 11 The mating surfaces of the speaker bracket and joint bracket are designed to interlock. Ensure that both parts are securely engaged with each other after mounting is complete. Horizontal orientation (F-2000B, F-2000BT, F-2000W, and F-2000WT only) Use the supplied joint bracket and speaker bracket in combination with the optional HY-CM20B or HY-CM20W Ceiling Mount Bracket.

  • Page 12: Speaker Stand Mounting

    8.5. Speaker Stand Mounting The speaker can be mounted on the optional ST-16A Speaker Stand using the supplied joint bracket and speaker bracket. Step 1. Attach the joint bracket to the speaker stand bracket using the speaker stand's supplied bolt and nut. Step 2.

  • Page 13: Pole Mounting

    8.6. Pole Mounting (F-2000BTWP and F-2000WTWP only) To mount the speaker on a pole with diameter of 9 – 34 cm, use the supplied wall bracket, joint bracket, and speaker bracket in combination with the optional SP-131 Pole Mount Bracket and YS-60B Pole Band. Speaker coverage angles can be adjusted in the horizontal and vertical direction*.
  • Page 14 Step 1. Attach the wall bracket to the SP-131 Pole Mount Bracket. Match the orientation of the arrow label with the horizontal direction (left or right) the speaker faces. Use the bolts supplied with the SP-131. Step 2. Attach the SP-131 to a pole using the YS-60B. Step 3.

  • Page 15: Reducing The Speaker Coverage Angle

    9. REDUCING THE SPEAKER COVERAGE ANGLE The speaker's coverage angle can be reduced to 80º horizontal x 80º vertical from its normal range of 110º x 110º by attaching the supplied horn adapter to the speaker's horn section. [Attaching the horn adapter] Note Because the logo is affixed using double-faced tape, peel it off carefully.

  • Page 16: Repainting The Speaker

    10. REPAINTING THE SPEAKER Follow the procedure below when repainting the speaker grill and cabinet. Note Take care not to touch the speaker diaphragm during work. Step 1. Peel off the logo carefully, then remove the screw underneath to detach the mesh speaker grill. [Detaching the mesh grill] Note Because the logo is affixed using double-faced tape, peel it off carefully.

  • Page 17: Specifications

    11. SPECIFICATIONS 11.1. F-2000B and F-2000W Model No. Enclosure Type Power Handling Capacity Rated Impedance Output Sound Pressure Level Frequency Response Crossover Frequency Directivity Angle Speakers Input Terminals Enclosure Mesh Speaker Grill Surface-treated steel plate, black, paint Speaker Bracket Aluminum die-cast, black, paint Joint Bracket, Wall Bracket Dimensions Weight...

  • Page 18: F-2000Bt And F-2000Wt

    11.2. F-2000BT and F-2000WT Model No. Enclosure Type Power Handling Capacity Rated Impedance Output Sound Pressure Level Frequency Response Crossover Frequency Directivity Angle Speakers Input Terminals Enclosure Mesh Speaker Grill Speaker Bracket Joint Bracket, Wall Bracket Dimensions Weight Accessories Optional Products Note: The design and specifications are subject to change without notice for improvement.

  • Page 19: F-2000Btwp And F-2000Wtwp

    11.3. F-2000BTWP and F-2000WTWP Model No. Enclosure Type Power Handling Capacity Rated Impedance Output Sound Pressure Level Frequency Response Crossover Frequency Directivity Angle Speakers Input Terminals Water Resistance Operating Temperature Enclosure Mesh Speaker Grill Surface-treated steel plate, black, anti-rust paint Speaker Bracket Aluminum die-cast, black, paint Joint Bracket, Wall Bracket...
