Summary of Contents for Canarm PENTA-LITE 5LEC Series

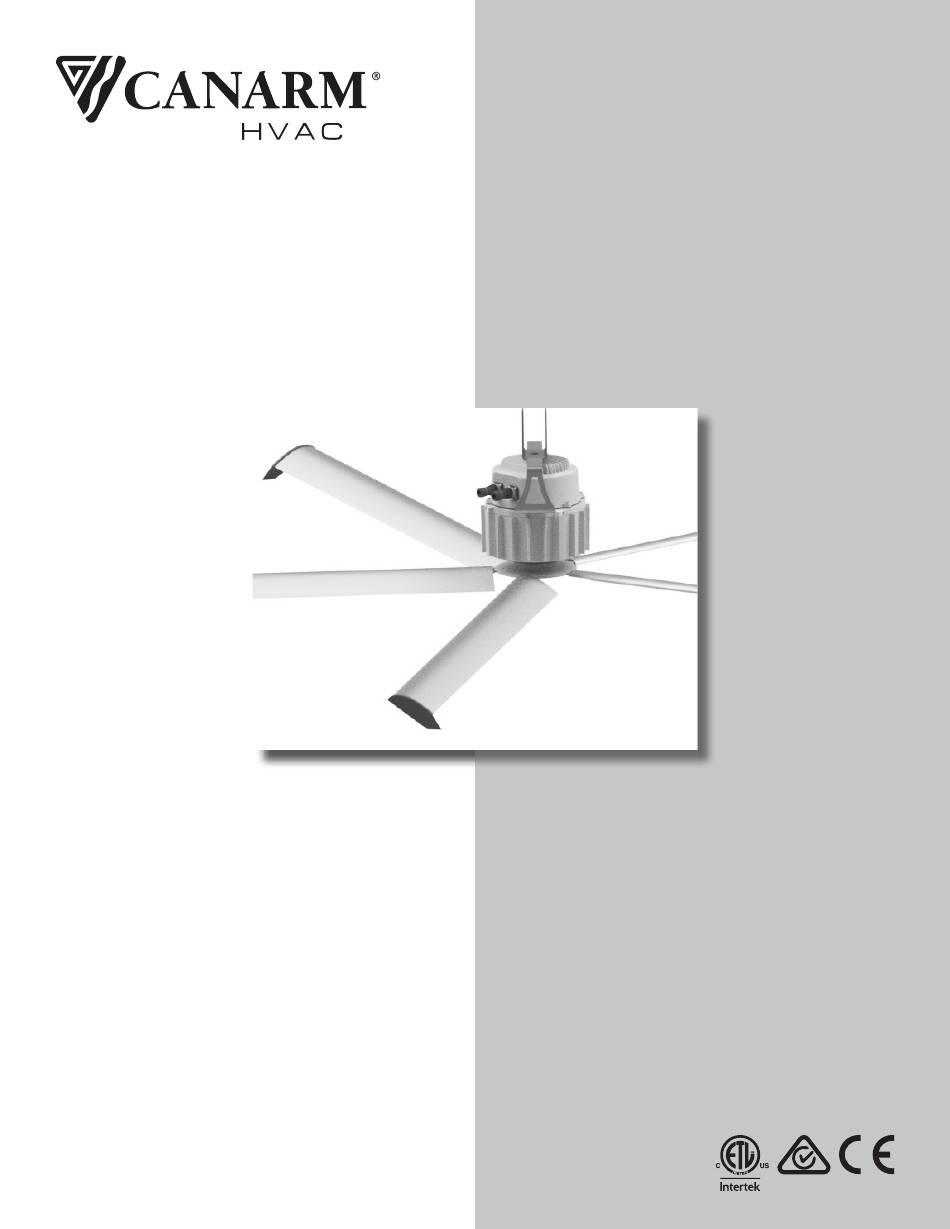

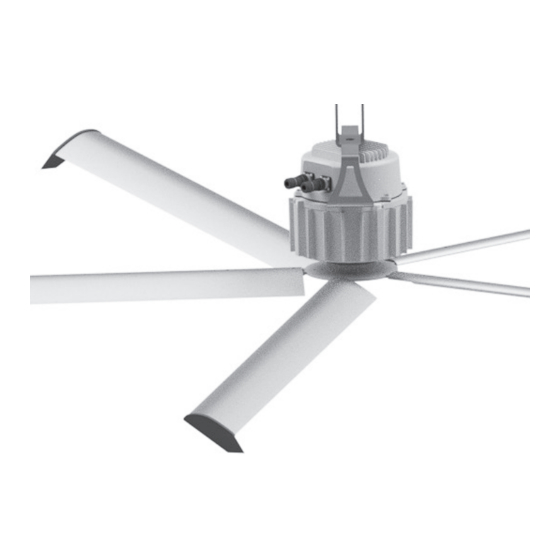

- Page 1 PENTA-LITE FANS 5LEC SERIES Patent pending 6’-16’ Models HVLS FAN INSTALLATION MANUAL Custom Designed Reduced Maintenance STOL Technology...
- Page 2 IMPORTANT READ AND SAVE THESE INSTRUCTIONS. A printable, electronic version is available online at www.canarm.com. WARNING/AVERTISSEMENT Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read and understand the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
- Page 3 Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Canarm Penta-Lite 5LEC Series...
-
Page 4: Table Of Contents
5L14EC 14’ / 4.3M Fan 8” (203 mm) 60” (1524 mm) 9” (229 mm) 27 lbs. (12 kg) 5L16EC 16’ / 4.9M Fan 8” (203 mm) 60” (1524 mm) 9” (229 mm) 30 lbs. (14 kg) Canarm Penta-Lite 5LEC Series... - Page 5 Materials not included in the fan contents (e.g., Grade 5 hardware, etc.) are the responsibility of the installer. Notify your product representative or Canarm of any discrepancy or missing kit contents prior to installing unit.
-
Page 6: Fan Diagram
230/1 230/1 230/1 230/1 230/1 VOLTAGE INPUT 230/3 230/3 230/3 230/3 230/3 230/3 460/3 460/3 460/3 460/3 460/3 460/3 Model Number Ordering Format: SERIES-DIAMETER-BLADES-INPUT VOLTAGE-PHASE Sample Model Number: 5L08EC-230-3 NOTE: 277V power source is not accepted. Canarm Penta-Lite 5LEC Series... -
Page 7: Important Information
When mounting a fan in an area where objects may be lifted or moved into the path of the fan, Canarm recommends marking or painting hash lines on the floor to alert personnel of the above movement of the fan. -
Page 8: Mounting Considerations
The maximum torque that must be handed by the mounting system and the building structure will occur at the fans startup. For a 12 foot fan, maximum potential startup torque is 300 ft-lbs. Canarm fans use a soft-start technology which allows the rpm to ramp up as desired over 60 seconds. The event of this max torque being applied is unlikely and will only apply due to a failure of the variable frequency drive and its soft start technology. -
Page 9: Preparing The Work Site
Canarm fans can be hung from a unistrut, angle irons, or an I-beam. See installation instructions on the following page. Do not mount the fan to single purlins, trusses, or bar joists. Consult a structural engineer for installation methods not covered in the manual. -
Page 10: Mounting Method 1: Unistrut
Ne pas installer moteur et moyeu directement sur cornière. Follow the table below when selecting Unistrut for fan installation. PLEASE NOTE: These are suggestions. Canarm is not liable for accidents resulting from improperly sized mounting methods. Please consult a structural engineer. - Page 11 ATTENTION: Do not tighten the hardware until the upper yoke has been mounted to the unistrut. Grade 5 Hardware (customer supplied) a. (4) 1/2”-13 GR 5 Bolt b. (8) 1/2” Flat Washer c. (4) 1/2” Nylock Nut d. (4) 2-1/2” Square Washer Canarm Penta-Lite 5LEC Series (PART NAME HERE)
-
Page 12: Mounting Method 2: Angle Iron
8’ (2.4m) x .25”(.6cm) 3”(7.6cm) over 8’ (2.4m) - x 3”(7.6cm) 12’ (3.7m) x.25”(.6cm) *2 pairs of angle irons. Pairs should be placed back to back and fastened in center (see step 2). Height Thickness Width Canarm Penta-Lite 5LEC Series... - Page 13 Align the angle irons to each other and tighten the bolts to 90 ft-lb (122 N-m) using a 3/4” socket with torque wrench. Proceed to step 5.6b. Grade 5 Hardware (customer supplied) a. (2) 1/2”-13 GR 5 Bolt (length varies by application) b. (4) 1/2” Flat Washer c. (2) 1/2” Nylock Nut Canarm Penta-Lite 5LEC Series...
- Page 14 (4) 1/2”-13 GR 5 Bolt (length varies by application) b. (8) 1/2” Flat Washer c. (4) 2-1/2” Square Washer (see diagram) d. (4) 1/2” Nylock Nut 2.5” (6.4 cm) 9/16” Dia. (1.4 cm) 2.5” (6.4 cm) Canarm Penta-Lite 5LEC Series...
- Page 15 Proceed to step 5.7. Grade 5 Hardware (customer supplied): a. (4) 1/2”-13 GR 5 Bolt (length varies by application) b. (8) 1/2” Flat Washer c. (4) 2-1/2” Square Washer (see diagram) d. (4) 1/2” Nylock Nut Canarm Penta-Lite 5LEC Series...
- Page 16 (8) 1/2” Flat Washer c. (4) 1/2”-13 Nylock Nut 8-1/4” (20.96 cm) Upper Yoke Top View MATERIAL: XXXXXXXX DRAWN BY: THIS DRAWING IS TH DISCLOSED T Upper Yoke Side View Canarm Penta-Lite 5LEC Series Page. 16 MATERIAL: ALL DIMENSION ARE I...
-
Page 17: Mounting Method 3: I-Beam
(8) 1/2” Flat Washer c. (4) 1/2”-13 Nylock Nut d. (2) Clamping Plate I-Beam Upper Yoke Flange Width Mounting Holes 5” (12.7cm) inner holes 8-3/8” (21.2cm) >8-3/8” (21.2cm) outer holes 9” (22.8cm) Outer Holes Inner Holes Clamping Plate Canarm Penta-Lite 5LEC Series... -
Page 18: Mounting Method 4: Purlins
MOUNTING METHOD 4: PURLINS NOTE: Purlin brackets and hardware are available from Canarm upon request and not included standard. 5.9 Selecting Proper Angle Irons Select the proper angle irons based on the requirements stated under section 5.3. 5.10 Pre-Drill Purlins Drill four 9/16”... - Page 19 Purlin Bracket Hardware (per set, supplied): a. (2) 1/4” Formed Steel Purlin Bracket b. (2) 1/4” Steel Purlin Backplate c. (16) 1/2”-13-1 3/4” GR 5 Bolt d. (16) 1/2” Nylock Nut e. (32) 1/2” Flat Washer Canarm Penta-Lite 5LEC Series...
-
Page 20: Hanging The Fan
The safety cable is a critical safety feature of the fan and must be installed correctly. Le câble de sécurité est une caractéristique de sécurité essentielle de la soufflante qui doit être installé correctement. Cable End Detail Canarm Penta-Lite 5LEC Series... - Page 21 Tighten bolts to 90 ft. lbs. (122 N-m) using a 3/4” socket with torque wrench. Lower Yoke Hardware (supplied): a. (2) 1/2”-13x3 1/2” GR 5 Bolt b. (4) 1/2” Flat Washer c. (2) 1/2”-13 Nylock Nut Canarm Penta-Lite 5LEC Series...
-
Page 22: Installing Guy Wires
1. Slide the gripple fastener (as supplied) over the opposite end of the wire. 2. Feed the end of the guy wire through the guy wire loop on the fan motor and then through the gripple, removing any slack from the cable. Canarm Penta-Lite 5LEC Series... - Page 23 Assurez-vous que tous les câbles électriques ne soient pas obstruées par des haubans. Eye Hook (Ceiling) Gripple Hook Tab (Motor) a Beam Clamp a Gripple Hook Tab b Eye Hook b Guy Wire c Gripple Wire Loop c Gripple Fastener Gripple Maximum Angle Ceiling/Beam Guy Wire 45° Maximum Canarm Penta-Lite 5LEC Series...
-
Page 24: Installing Blades
Each bolt requires one (1) c. M8 Zinc Split Lock Washer. Blade Hardware Kit (supplied): a. (5) Soc Cap 5/16-18 x 5/8 b. (5) Soc Cap 5/16-18 x 3/4 c. (10) Zinc Split Lock Washer 5/16 Canarm Penta-Lite 5LEC Series... - Page 25 INSTALLING BLADES 8.1 Attach Blades to Hub: Slide blade onto struts until blade holes and strut holes are aligned. Canarm Penta-Lite 5LEC Series...
- Page 26 Thoroughly inspect the hub, the bolts and brackets within the hub to guarantee clear and proper rotation. If you find that the fan has a bracket that is hitting another object on the hub, contact Canarm for a resolution. Canarm Penta-Lite 5LEC Series...
- Page 27 Install wingtips on end of blade after blade has been securely attached to the strut. Fasten wingtip to blade using a 10-32 X 5/8 Button Cap. Wingtip Blade BTN Cap Screw Wingtip Wingtip Hardware Kit (supplied): a. (5) 10-32x3/8 BTN Cap Screw Canarm Penta-Lite 5LEC Series...
- Page 28 CAUTION/ATTENTION Canarm is not liable for any voltage disturbances with explicit reference to electronic magnetic interference (EMI). Voltage disturbance refers to transient overvoltage, voltage unbalance, voltage swells, rapid voltage change, flicker, superimposed signals, harmonic voltages, supply voltage variations, voltage dips and frequency/time deviation.
- Page 29 à l’état solide. The installation of a Canarm fan must be in accordance with the National Electrical Code, ANSI/NFPA 70-1999, and all local codes. The procedures and techniques outlined in this manual are merely a guide for proper installation.
- Page 30 The Canarm product warranty will not cover equipment damage or failure that is caused by improper installation. La garantie des produits Canarm ne couvrira pas les dommages à l’équipement ou de l’échec qui est causé par une mauvaise installation. IMPORTANT: Check that the correct input voltage is being sent to the fan. See rating labels on the motor for acceptable voltage.
-
Page 31: Electrical
9.2 Running the Motor Wire The Canarm Penta-Lite 5LEC series’ custom designed chassis makes for running the motor wire in an incognito fashion. The motor wire slot on the top of the chassis allows the power wire to be ran through (or affixed to the side) of the extension bar, then conveniently through the top plate of the chassis and directly in to the motor electrical box. - Page 32 If the installation of the fan is required to be wired to a fire alarm emergency shut-off, an external relay will have to be placed by a fire suppression specialist between the voltage line feed and the fan(s). Power Supply MOTOR Canarm Penta-Lite 5LEC Series...
-
Page 33: Troubleshooting
Do not run your controller and sensitive equipment on the same power line. c. Install properly sized EM/RFI filter. d. Contact Customer Service at 1-613-342-5424. 5. LED indicator is not blinking in normal fashion. Please contact Canarm customer service to resolve issue. Canarm Penta-Lite 5LEC Series... - Page 34 Is the wiring correct? reverse? Fix incorrect wiring. Check all brackets and bolts. Ensure bolts are torqued to the proper rating and brackets are free to spin without collisions. Is the fan making End of any noise? troubleshooting. Canarm Penta-Lite 5LEC Series...
- Page 35 • If the wrong fuse is placed on the breaker and a spike occurs the drive may have been blown. Driver will need to be replaced . Contact Factory NOTE: Fan blades must be ON in order to troubleshoot. Canarm Penta-Lite 5LEC Series...
-
Page 36: Parts
Safety Plate PP-186 Black Wing Tip PP-084 Trantorque Bushing PP-190.5 5 Blade Boomerang Bracket PP-092 Small C Brackets PP-228 Driver - 1 ph BP-094 Gripple Wire Packet PP-230 Driver - 3 ph PP-099 Safety Plate Spacer Canarm Penta-Lite 5LEC Series... -
Page 37: User Servicing Instructions
I-beam or angle irons. 8. Administer proper cleaning techniques such as dusting blades, motor, reducer and chassis. If desired, used a water based cleaner to polish blades. If you have any questions, please contact customer service at 1-613-342-5424. Canarm Penta-Lite 5LEC Series... - Page 38 USER SERVICING INSTRUCTIONS Maintenance Log: DATE: MAINTENANCE PERFORMED REPLACEMENT PARTS REQUIRED Replacement Part List: PART NO. DESCRIPTION Canarm Penta-Lite 5LEC Series...
- Page 39 NOTES Canarm Penta-Lite 5LEC Series...
- Page 40 PHONE: 1-613-342-5424 FAX: 1-800-263-4598 E-Mail: hvacsales@canarm.ca www.canarm.com LIMPL5LEC.0123_04...
