Toa CA-200 Operating Instructions

CAR AMPLIFIER
Please follow the instructions in this manual to obtain the
optimum results from this unit.
We also recommend that you keep this manual handy for future
reference.

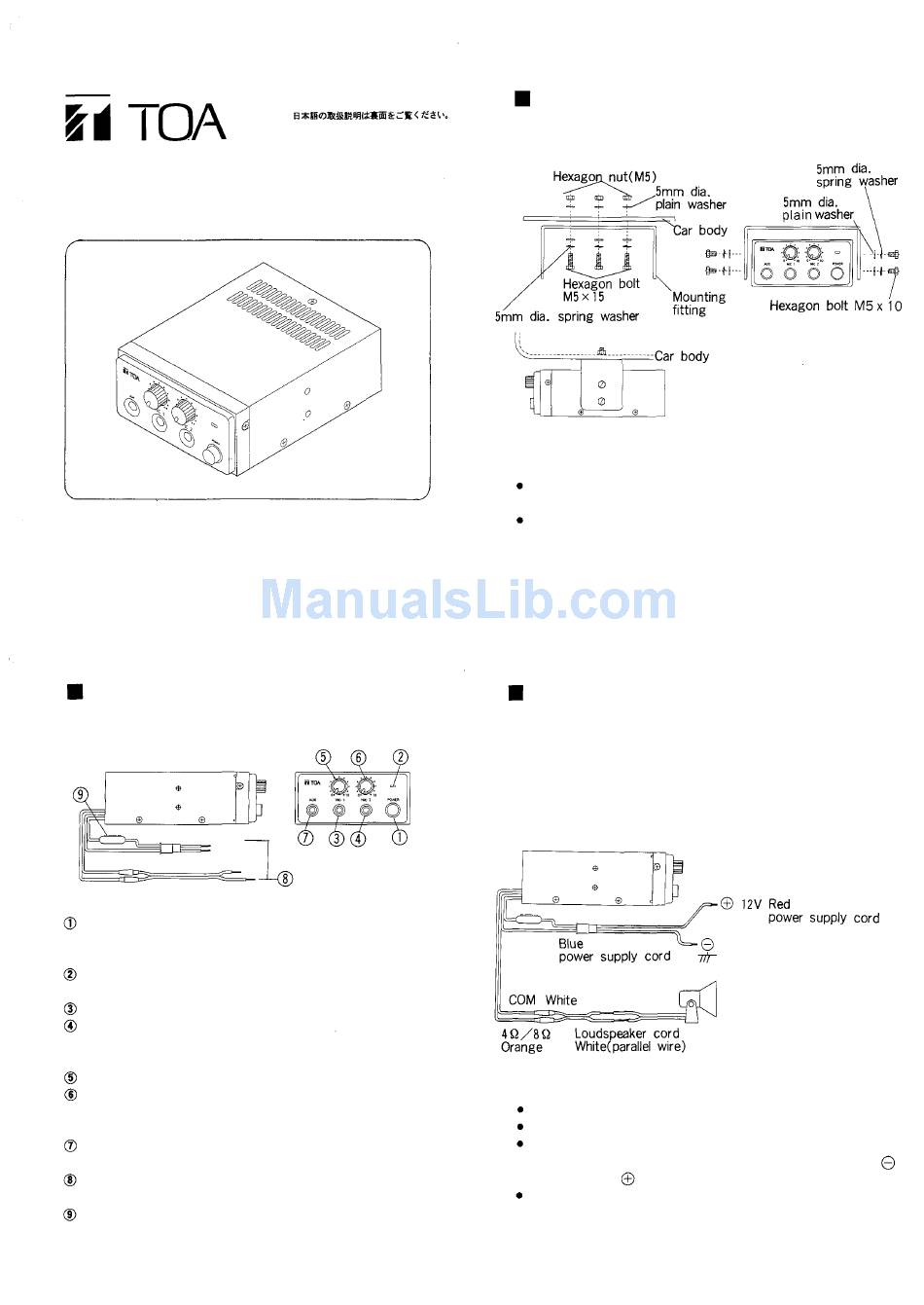

Name and Function of Each Part
Power Switch (POWER)
To power on the amplifier, depress the power switch, and
to power off the amplifier, depress the switch again.
Power Lamp
The light comes on when the power supply is switched on.
Microphone 1 Input Jack (MIC 1)
Microphone 2 Input Jack (MIC 2)
Plug in the supplied microphone or other Low impedance
microphone.
Microphone 1 Volume Control Knob
Microphone 2 Volume Control Knob
Adjust these knobs to control the volume of microphones
plugged in "MIC 1" or "MIC 2" respectively.
Auxiliary Input Jack (AUX)
Connect a tape recorder or a radio to this jack.
Power and Loudspeaker Cords
Cords for connecting power supply and the loudspeaker.
Fuse holder
Be sure to use a fuse of the specified type and rating. Use of
other fuse than specified may cause equipment breakdown.
OPERATING INSTRUCTIONS
CA-200
Mounting Method
Install so as to facilitate the dissipation of heat from the
radiator of the amplifier.
Do not use M5 × 15 bolts where M5 × 10 bolts are to be installed.
Otherwise parts inside the amplifier may be damaged.
Fasten the microphone holder with self tapping screws (M4 x 16)
where the microphone can be handled easily.
Connection
Connect the power supply and the loudspeaker according to
the following diagram.
Not usable for cars using 24V battery.
Not usable for cars using positive grounding.
Do not mistake the positive and the negative of the power
supply cord in connection. If the blue power supply cord
is connected to by mistake, the amplifier may be damaged.
Consult our distributor for the output of the amplifier, the
input capacity of the loudspeaker and the connection of two
or more loudspeakers.
Connect to the positive
electrode of the battery or
the power supply cord of the
radio.
Connect to a metal part
of the car positively.
