BG-220/235/BA-235/260
PA Amplifier
BG-220/235
DESCRIPTION
Designed to satisfy users' specific requirements for the BGM market, the compact TOA
BG and BA Series of mixer amplifiers are ideal for use in banquet rooms, bars and
retail outlets, delivering satisfactory power output as well as the reliable audio
performance and features that TOA is known for.
The BG-220 and BG-235 units are each equipped with 1 Mic/Line input and 2 Line
inputs and also include an MOH Out. For installation ease, the rear-mounted terminal
blocks are removable. DIP switches are provided to enable quick settings. A ZONE 2
OUT provides system expansion capability when needed.
Users' BGM market demands include affordable, mixer amplifiers optimized for simpler
applications that will not require paging and/or MOH Out features. The new BA-235
and BA-260 power amplifiers are ideal solutions, delivering high-quality audio
performance and generous power.
A wider scope of operation can be gained by combining BG and BA to achieve full 2-
channel broadcasts. The compact and attractively priced BG and BA Series make it
easy to provide ideal BGM services wherever desired as well as help to reduce system
costs due to the significantly less time required for system installation and set-up.
FEATURES
• Affordable and compact amplifiers designed for background music and paging applications.
• Ideal for mid-sized environments including bars, retail outlets, classrooms, restaurants etc.
• 2-channel broadcasts possible for system expansion as needed through MOH/ZONE
2 output on BG Series amplifiers
• Tamper-proof bass and treble controls preserve system settings.
• Security knobs for volume control included.
• Thermal protection circuits against overheating.
• Meets UL/cUL regulations.
BG-200 Series
• Any of 3 inputs can be assigned to MOH/ZONE 2 output.
• LINE 2/3 outputs equipped with RCA pin jacks.
• Automatic Mute sensing control to set mute activation threshold and manual mute function.
• Removable terminal blocks and rear-mounted DIP switches for fast and easy installation/setup.
BA-200 Series
• Remote master volume control possible by using an external volume control.
• RCA line input jacks.
BA-235/260

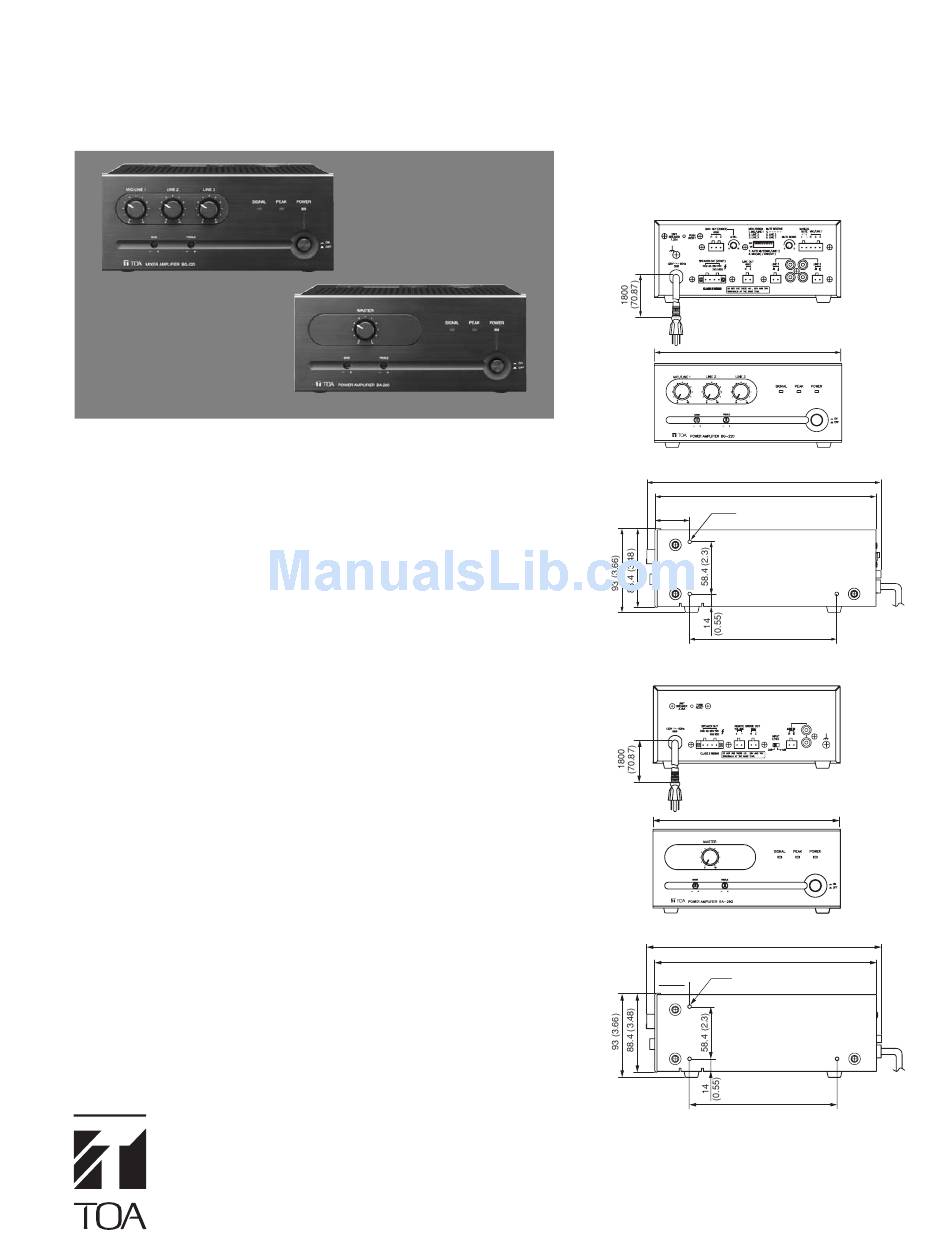

APPEARANCE AND
DIMENSIONAL DIAGRAM
BG-220/235
Rear View
210 (8.27)
Front View
265 (10.43)
249 (9.8)
40
6-M4
(1.57)
Side View
165 (6.5)
BA-235/260
Rear View
210 (8.27)
Front View
265 (10.43)
249 (9.8)
40
6-M4
(1.57)
Side View
165 (6.5)
TOA Corporation BG/BA-200 Series 1/4
Unit: mm (in.)
Unit: mm (in.)
