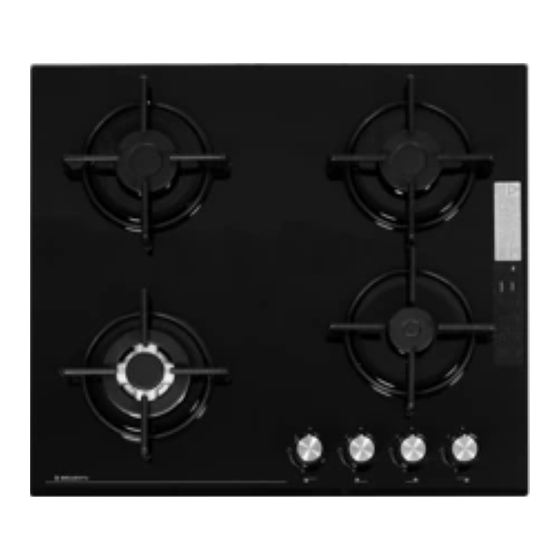

- Page 1 User Manual Book Built – in Gas Hob BH 3648 IRR...
-
Page 2: Table Of Contents
SAFETY & WARNING Important Warnings FEATURES INSTALLATION HOW TO USE Usage of Gas Hob MAINTENANCE TROUBLESHOOTING SPECIFICATIONS This guide book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. -
Page 3: Safety & Warning
SAFETY & WARNING Important Warnings Before touching the connection terminals, all supply circuit should be disconnected. Any in advertent cooking made with fats and oils can be dangerous and cause fire. Risk of fire; do not store the food materials on the cooking ... - Page 4 conditions of such country, the technical instructions should be read. Do not operate the system for more than 15 seconds. If the burner does not ignite at the end of 15 seconds stop the operation of the system and open the section door and/or wait for at least 1 minute before igniting the burner.
-
Page 5: Features
FEATURES Burner positions Glass or Metal Surface Control Buttons Small Burner Medium Burner Large Burner WOK Burner Hotplate Coffee Adaptor 10. Wok Burner Adaptor 11. Cast Grill 12. Enamel Grill... - Page 6 Control Panel Hob Panel Visual of 60 cm...
-
Page 7: Installation
INSTALLATION If Built-In Oven is Placed Under Hob pipe Cooktop should be affixed in Hose a way not to touch oven below, sharp edges and corners, not to be Oven pulled in a manner to be twisted and strained. Figure 1 2. - Page 8 Figure 2 6. When product is mounted on a drawer, if it is possible to touch lower side of product, this section should be separated with a wooden shelf. 7. While mounting Hob on a closet, as shown in the figure above, in order to separate between closet and Hob, a shelf should be mounted.
- Page 9 Pay attention to the drawings and dimensions given below while making Hob installation and adjusting counter cutting sizes.
- Page 10 Correct Place for Installation Product is designed in accordance with the kitchen counters supplied from market. A safe distance should be left between the product and kitchen walls and furniture. If hood/aspirator will be installed over your appliance, obey to ...
- Page 11 Ventilation of Room The air needed for burning is received from air available in the area and the gases emitted are given directly in room. For safe operation of your product, good ventilation is needed. If there is no available window or area to be utilized for ventilation, additional ventilation should be installed.
- Page 12 5. After that, detach control switches of the Hob. Make setting by turning the screw in the middle of gas valve with a small screwdriver in the manner shown in the following picture. To adjust flow rate screw, use a screwdriver having suitable dimension.
- Page 13 NOTE! The regulator to be affixed on LPG cylinder should have 300 mmSS feature. Main Gas Pipe Gasket Hose Inlet Connector Metal Clamp Lpg Connection Hose • Natural gas connection should be done by authorized service. For natural gas connection, place gasket in the nut at the edge of natural gas connection hose.
- Page 14 WARNING! Gas hose and electric connection of the appliance should not pass next to hot areas such as back of the appliance. Gas hose should be connected by making wide angle turns against breaking possibility. Movement of appliance whose gas connection is made may cause gas leakage.
-
Page 15: How To Use
HOW TO USE Usage of Gas Hob 1. Before starting to use your Hob, be sure burner cap are at correct position. Correct placement of burner hoods is shown in the following figure. Figure 10 Figure 11 2. Gas valve have a special locking mechanism. Therefore, to operate Hob zone, press button by pushing ahead and while opening or closing the valve, hold down the button. - Page 16 4. Igniting for these models is as follows: Hob valve is at closed position. To ignite Hob firstly press the button towards ahead. While holding down the button, lighter steps in and starts to ignition. By turning the button right while holding down, you can provide ignition at flame length you want.
- Page 17 • For the models having gas putting out safety, following realizing ignition procedure according to the guidelines above, wait for 5-10 seconds by pushing button ahead without keeping your hands off. Safety mechanism will step in this duration and ensures operation of the Hob. With regard to gas putting out appliance, gas valve cuts the gas going to Hob zone in case of putting out of Hob flame due to any reason.
- Page 18 False False False True Cooking pot to be used with products should have minimum 120 mm diameter. Wok Burner As it possesses double ring flame system, it gives homogenous heat distribution at the bottom of cooking pot at high temperature. It is ideal for short term and high temperature cooking.
-
Page 19: Maintenance
MAINTENANCE • Before starting cleaning the hob, first unplug the plug supplying electricity to Hob and turn off gas valve. If Hob is hot, wait for it to cool down. • Regular cleaning and maintenance should be performed on your Hob for longer durability. •... -
Page 20: Troubleshooting
TROUBLESHOOTING You can solve the troubles you encounter at your product by checking the following points before calling technical service. If Hob Does Not Operate • Check if power cable of Hob is plugged in. • Examine with safe ways if electric exists on network. •... -
Page 21: Specifications
SPECIFICATIONS Model BH 3648 IRR Color Beige/Ivory Grid Matt Enameled Grid Top Plate Enamel Ignition Auto Ignition Control Type Side Control Burner Euro pool type burner Rapid Burner 1 x 2.6 kW Semi Rapid 2 x 1.7 kW Auxilary Burner... - Page 22 02/21...
