Page 1 User Manual Book Built In Induction Hob Magne Series BI 1325, BI 1935 BI 1725, BI 1625 F, BI 1321 BI 1721, BI 0321 L, BI 0721 L...
Page 2: Table Of Contents
Part 4: How to Use Part 5 : Maintenance Part 6: Troubleshooting Part 7: Precaution Part 8: Specification This guide book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com...
Page 3: Part 1: Safety Warnings
• Make sure that grounding system is installed properly. • Alterations to the domestic wiring system must only be made by MODENA Technician. • Failure to follow this advice may result in electrical shock or death.
Page 4 Health Hazard • This appliance complies with electromagnetic safety standards. • However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
Page 5 • Do not use scourers or any other harsh abrasive cleaning agents for cleaning, as these can scratch the ceramic glass. • If the power supply cable is damaged, it must only be replaced by MODENA technician. •...
Page 6: Part 2: Name Of Parts
PART 2: NAME OF PARTS MODEL: BI 1325 1. Glass Plate 2. 2000W Cooking Zone 3. 1500W Cooking Zone 4. Control panel Control Panel 1. Cooking Zone selection button 2. Stop & Go control button 3. Timer control button 4. Heating level/Timer slider control 5.
Page 7 MODEL: BI 1625 F 1. 1500W boost 2000W Cooking Zone 2. 2000W boost 2600W Cooking Zone 3. 3000W boost 3600W Flexi area-Left 4. 2000W boost 2600W Cooking Zone 5. 1500W boost 2000W Cooking Zone 6. 3000W boost 3600W Flexi area-Right 7.
Page 8 MODEL: BI 1725 1. 2000W induction Zone 2. 2000W induction Zone 3. Ceramic Glass 4. Control panel of cooking zone #1 5. Control panel of cooking zone #2 Control Panel 1. Booster function control button. 2. Stop & Go control button 3.

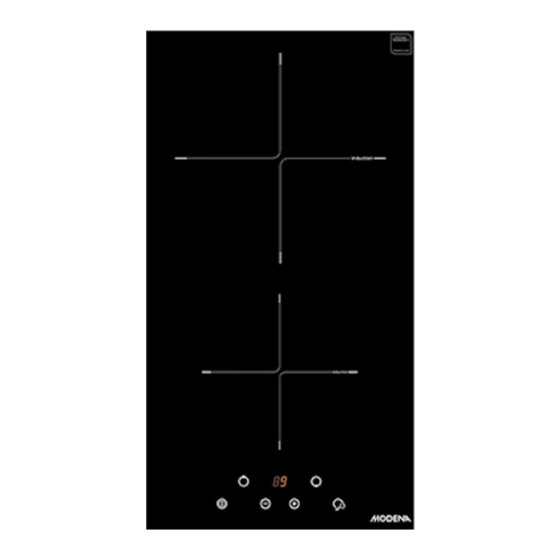

Page 9 3. Child Lock control button 4. Stop & Go control button 5. Timer control button 6. Heating level/Timer adjusting slider 7. ON/OFF button MODEL: BI 0321 L 1. Zona Induksi 2000W 2. Zona Induksi 1500W 3. Kaca Temper 4. Panel Kontrol Panel Kontrol 1.
Page 10 MODEL: BI 0721 L 1. Zona Induksi 2000W booster 2200W 2. Zona Induksi 2000W booster 2200W 3. Kaca Temper 4. Panel Kontrol Panel Kontrol 1. Tombol Zona Memasak 2. Tombol “ + “ pengatur waktu / level panas 3. Tombol Pengunci 4.
Page 11: Part 3: Installation
After unpacking the appliance, ensure there is no visible damage. If it has been damaged during transit, DO NOT USE, contact where you buy immediately. Please contact MODENA Call Center for instalation. Selecting Installation Equipment • Cut out the work surface according to the measurements shown in the picture.
Page 12 ATTENTION • If the induction cooker is installed with an oven below it, separator panel must be placed between the bottom of the stove and the frame below it at a minimum distance of 10 • If the induction cooker is installed without oven on the bottom, the minimum distances to put the separator panel is 15 cm.
Page 13 Fix Hob to Cabinet: Insert the hob into the cabinet/work surface as below diagrams, the mounted clips on the sides can secure your hob sturdily. Installing the Induction Cooker on Kitchen Set Table To install an induction cooker on the kitchen counter niche, follow these instructions: The cable is directly plugged into a power supply through a circuit breaker.
Page 14 NOTES: • If the cable is damaged or needs replacement, this should be done by MODENA technician using the proper tools, so as to avoid any accidents. • If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
Page 15: Part 4: How To Use
CAUTIONS: • The hob must be installed by MODENA technicians. Please never conduct the operation by yourself. • The electric hob shall not be mounted next to to cooling equipment, dishwashers and tumble dryers. • The electric hob shall be installed properly to ensure better heat radiation and enhance its reliability.
Page 16 Choosing the Right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan.
Page 17 CAUTIONS: You can use any kind of pot or pan for Ceramic Hob. Make sure that base of your pot or pan is smooth, sits flat against the ceramic glass, and same size as the cooking zone for better cooking performance. To Start Cooking 1.
Page 18 CAUTIONS: • After connecting to electricity, when power on, the buzzer of hob beeps once, all indicators lights up for 1 second then off. • You can modify the heat setting at any time during cooking. The heating element will turn off under power level 0, with indicator shows “-” •...
Page 19 NOTES: This can also be used as an energy saving function: if you want to heat further pans, use the hotplate that is still hot. Using Booster Function – Induction Hob For induction hob models which with Booster function, you can use the “Booster” function to boost power of relevant cooking zone for a maximum power rating for 5 minutes.
Page 20 To lock the controls Touch the Child Lock control button once . The timer indicator will show “Lo“, and Child Lock function is activated. To unlock the controls 1. Make sure the electric hob is turned on. 2. Touch and hold the Child Lock control button for 3 seconds, the buzzer beeps once and “Lo”...
Page 21 Deactivate Stop & Go function To cancel Stop & Go function, you can press the Stop & Go function again, after come back. Then all programmer setting will return to what they were, Stop & Go indicator “P” disappear from all indicators. When Stop &...
Page 22 • Press the timer control button again, the number of tens digit in timer indicator flashing, then adjust tens digit of minute minder setting by sliding the slider control. To Set The Timer: Touch the button to set the timer. And then touch the plus (+) icon and minus (–) icon to set the cooking timer.
Page 23 flashing, then adjust tens digit of timer setting by sliding the slider control. 3. After adjusting, the setting in timer indicator will be flashing for 5 seconds and then stop flashing, then the setting has been confirmed. When the time is set, it will begin to count down immediately, the display will show the remaining time.
Page 24 Detection of Pan and Small Articles For induction hob, if the display flashes “ ” in heat setting indicator, it means that: • you have not placed a pan on the correct cooking zone, or • the pan you’re using is not suitable for induction cooking, or •...
Page 25 Over – Flow Protection For your safety, the programme will auto shut off the power if liquid boiling or touch control panel is covered with wet cloth. All control buttons will be inactive except ON/OFF and Child Lock button, unless you wipe the touch control area dry. Cooking Guidelines Cooking Tips •...
Page 26 For stir-frying 1. Choose a ceramic compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons of oil. 4.
Page 27: Part 5: Maintenance
Do not use other abrasive cleaners and/or wire wool ect., as it may scratch the ceramic glass surface of your hob. The MODENA Induction cooker is designed specifically for long term usage and does not require complicated maintenance. However, there are several advices on how to maintain the quality of your stove.
Page 28 Hints and Tips Problem Recommended Action Important notice • When power supply disconnected from the hob, there will Everyday 1. Switch off the power supply. be no ‘hot surface’ indication but the soiling on glass 2. Apply a vitro-ceramic glass cooking zone may still be hot! Take (fingerprints, cleaner while the glass is still...
Page 29 Maintenance of the Hob If you find something goes wrong for your hob, before contact the service or where you purchased it, please check whether below: 1. There is no power to the appliance: • Check whether there is a power cut of your department; •...
Page 30: Part 6: Troubleshooting
Make sure the cooking zone symbol is selected and the heat functioning is set to your needs. For all other error codes, switch off and call MODENA Call Center. PART 7: PRECAUTION • Always reduce the heat in the cooking zone or turn off the cooking zone before removing your cooking utensil.
Page 31: Part 8: Specification
• In the case of an anomaly on your induction cooker, turn off the unit and unplug the power cable from the power outlet and immediately contact the MODENA Call Center. • Turn off the stove or turn off the power through the MCB every after cooking is finished or when the induction cooker is not used for an extended period of time.
Page 32 MODEL BI 0721 L BI 0321 L BI 1625 F Type Electric ( Induction Hob ) Electric ( Induction Hob ) Electric ( Induction Hob ) Number of burners 2 – free zone 400*200mm Flexi zone, 3000w Booster 3600w 400*200mm Flexi zone, 3000w Booster 2xØ210mm (2000w...
Page 33 MODEL BI 1721 BI 1321 Type Electric (Induction Hob) Electric (Induction Hob) Number of burners 1xØ20cm (2300 watt) Burner composition 2xØ20cm (2300 watt) 1xØ16cm (1400 watt) Blocking System Securing Color Black Black Touch Control Panel Program / Timer Digital Digital Lock system Electricity (volt) 220 –...
Page 34 NOTES:...
Page 35 NOTES:...
Page 36 06/21 PT MODENA INDONESIA Jl. Industri Raya I Blok D-8, Jatiuwung, Tangerang 15135...
