  • Page 1 User Manual Book Built-In Gas Hob BH 2958 LBM...

  • Page 2: Table Of Contents

    CONTENT PAGE Part 1: Safety Warnings Part 2: Name Of Parts BH 2958 LBM Part 3: Installation Adjusting The Stove On Kitchen Table Installing The Stove On The Kitchen Table Hole Electrical Connection For Gas Cooktop Part 4: How To Use...

  • Page 3: Part 1: Safety Warnings

    PART 1: SAFETY WARNINGS • If you do not understand about the procedure installation of gas cooker, you should contact your local service center to perform the installation. • Prepare the support equipment required for installation like: • LPG gas cylinder. •...

  • Page 4: Part 2: Name Of Parts

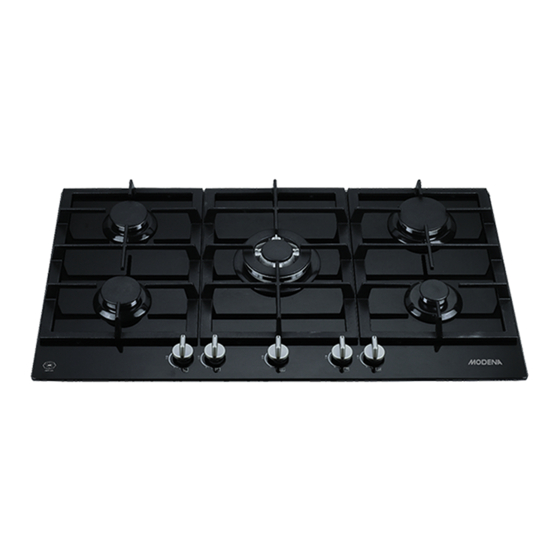

    PART 2: NAME OF PARTS BH 2958 LBM Small burner 2. Medium burner 3. Large burner 4. Triple ring burner 5. Control knob...

  • Page 5: Part 3: Installation

    PART 3: INSTALLATION Positioning for Gas Hob The room must be fitted with a ventilation system which vents • smoke and gases from combustion to the outside. This must be done by means of a hood or electric ventilator that turns on automatically each time the hood is operated.

  • Page 6: Adjusting The Stove On Kitchen Table

    Enlarging the ventilation slot between Examples of ventilation holes for window and floor comburant air FIG. B FIG. A Intensive and prolonged use of the appliance may necessitate • supplemental ventilation, e.g. opening a Window or increasing the power of the air intake system (if present). Liquidified petroleum gases are heavier than air and, as a result, •...
  • Page 7 • Stove can be installed on the kitchen table as long as the table is resistant to heat. To make a hole at the kitchen table use cardboard templates to customize the size. Make a hole should be proportional not too wide or too small. •...
  • Page 8 The size of the hole to put the stove on the kitchen table is as follows. Type A(mm) B(mm) BH 2958 LBM ATTENTION! If the stove is installed with oven under heat, separator panel must be placed under the stove and frame underneath with a minimum distance of 10 cm.

  • Page 9: Installing The Stove On The Kitchen Table Hole

    When installing the hob above a built-in oven, the oven should be • placed on two wooden strips; in the case of a joining cabinet surface, remember to leave a space of at least 45 x 560 mm at the back. When installing on a built-in oven without forced ventilation, ensure •...
  • Page 10 MODENA technician, then it is not be the responsibility of MODENA. • Embed Seal Adhesive (glue) along the bottom edge of the stove. It is necessary to keep the moisture on the bottom of the stove.

  • Page 11: Electrical Connection For Gas Cooktop

    • Once the appliance has been installed, make sure all the connections are properly sealed, using a soapy water solution. Never use a flame. Electrical Connection For Gas Cooktop Fit the supply cord with a standard plug for the demand rate indicated on the rating plate or connect it directly to the electrical mains.

  • Page 12: Part 4: How To Use

    PART 4: HOW TO USE How to Use The Burner To use the burner properly, compare the burner diameter with cooking equipment diameter. Cooking equipment diameter must be proportional to the power of burner so we can save the gas usage and fasten the cooking process.

  • Page 13: Gas Burners

    Gas Burners Control Knob The symbols on the control knobs mean the following: • No gas flow / OFF Maximum gas flow Minimum gas flow Automatic Ignition Lighting the Burner To acquire the flame easily, light the burner before placing the cooking utensil on the pan support.

  • Page 14: Model Without Electric Ignition

    push for 4-5 second. Released the knob if the fire has turned on and adjusts the fire by turning the knob to the desired position Model Without Electric Ignition To light the burner without automatic ignition plug, or light the burner at the condition does n’t have electric power, turn on the fire using matches and approach the fire to the upper side of burner than push the knob and turn counter clockwise until the maximum fire symbol...

  • Page 15: Part 5: Maintenance

    PART 5: MAINTENANCE MODENA gas cooker are designed specifically for long-term use of time so it does Not require complex treatment. However, there are some things that are encouraged to care for your gas cooker quality. Enameled Part Clean enameled layer with sponge and warm soap water. Do Not use the abrasive detergent.

  • Page 16: Part 6: Troubleshooting

    PART 6: TROUBLESHOOTING • Check the the electrical connection. Is the electrical connection installed correctly? • Ensure that fuse and electrical system can withstand the Does Not ignite load required by the appliance. • Ensure knob has been pressed and rotated toward the star symbol.

  • Page 17: Part 7: Precaution

    • When you smell gas, immediately release the regulator from the gas tank, do not light a fire and immediately contact MODENA Service Center. • Frequently check the gas hose, to make sure that gas hose is far from hot surface, and Not in bent position.

  • Page 18: Part 8: Specification

    PART 8: SPECIFICATION TYPE BH 2958 LBM Numbers of burner 5 Gas Burners 1 Triple Ring Burner+ 1 Large Burner+ Burners composition 2 Medium Burner+ 1 Small Burner Gas safety device Electronic ignition Cord Connection Heat input (kw) 10.46 kW...
  • Page 19 07/21...
