  • Page 1 User Manual Book Built-In Induction Hob BI 1625 F...

  • Page 2: Table Of Contents

    Table of Contents Part 1: Safety Warnings Electrical Shock Hazard And Cut Hazard Important Safety Instructions Operation And Maintenance Electrical Shock Hazard Electrical Shock Hazard Health Hazard Hot Surface And Cut Hazard Important Safety Instructions Part 2: Name Of Parts Part 3: Installation Before Locating The Fixing Brackets Easy Fit Kits...
  • Page 3 Activate The Flexible Induction Area Inactivate The Flexible Induction Area Child Lock Safety Control To Lock The Controls To Unlock The Controls Stop & Go Function Activate Stop & Go Function Deactivate Stop & Go Function Using The Timer Time Overview Setting The Timer To Turn Cooking Zone Off Detection Of Pan And Small Articles Residual Heat Warning...

  • Page 4: Part 1: Safety Warnings

    • This appliance is to be properly installed and earthed only by MODENA Technician. By contact MODENA Customer Service. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

  • Page 5: Operation And Maintenance Electrical Shock Hazard

    Operation And Maintenance Electrical Shock Hazard Electric cooker MODENA is specifically designed for long-term use so it does not require complex maintenance. However, there are some things that are recommended to treat your electric stove so that the quality of the stove is maintained.

  • Page 6: Important Safety Instructions

    • Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other service should be done by MODENA technician. • Do not use steam cleaner to clean hob. •...
  • Page 7 • If the power supply cable is damaged, it must only be replaced by MODENA technician. • This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...

  • Page 8: Part 2: Name Of Parts

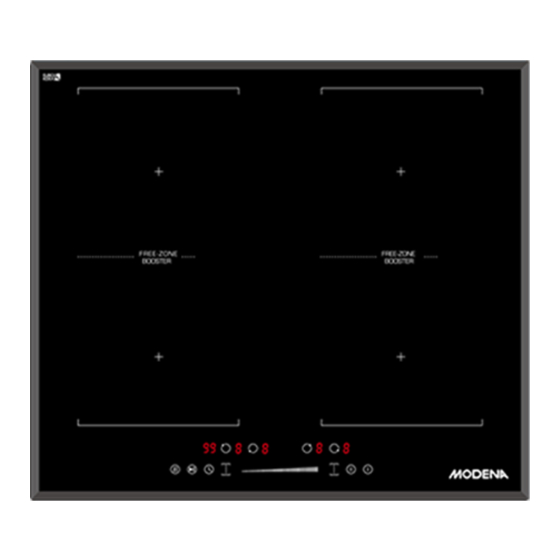

    PART 2: NAME OF PARTS BI 1625 F 1. 1500W boost 2000W Cooking Zone 2. 2000W boost 2600W Cooking Zone 3. 3000W boost 3600W Flexi area-Left 4. 2000W boost 2600W Cooking Zone 5. 1500W boost 2000W Cooking Zone 6. 3000W boost 3600W Flexi area-Right 7.

  • Page 9: Part 3: Installation

    (mm) (mm) (mm) (mm) (mm) (mm) (mm) BI 1625 F 555+5-0 495+5-0 NOTE: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm. he safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

  • Page 10: Before Locating The Fixing Brackets

    A (mm) B (mm) C (mm) 760 mm 50 mm minimal 20 mm minimal Air Intake Air exit 5 mm ATTENTION • If the induction cooker is installed with an oven below it, separator panel must be placed between the bottom of the stove and the frame below it at a minimum distance of 10 cm.

  • Page 11: Fix Clips To Hob

    Fix Clips To Hob: Insert the fixing clips into fixing holes reserved on 2 sides of housing, fix clip to housing with screw, then insert hob into cabinet/work surface. Fix Hob To Cabinet Insert the hob into the cabinet/work surface as below diagrams, the mounted clips on the sides can secure your hob sturdily.

  • Page 12: Connecting The Hob To The Main Power Supply

    Connecting The Hob To The Main Power Supply The power supply should be connected incompliance with the relevant standard,or a single-pole circuit breaker. The appliance has a large power rating and must be connected to electricity by MODENA Technician.

  • Page 13: Installing The Electric Cooker On Kitchen Set Table

    NOTES: • If the cable is damaged or needs replacement, this should be done by MODENA technician using the proper tools, so as to avoid any accidents. • If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
  • Page 14 CAUTION: 1. The hob must be installed by MODENA technicians. Please never conduct the operation by yourself. 2. The electric hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. 3. The electric hob shall be installed such that better heat radiation can be ensured to enhance its reliability.

  • Page 15: Part 4: How To Use

    PART 4: HOW TO USE Before Using Your New Hob • Read this guide, taking special note of the Safety Warning section. • Remove any protective film that may still be on your new electric hob. Using The Touch Controls •...

  • Page 16: To Start Cooking

    • Induction hob are made from smooth, ceramic glass, the heat comes from a magnetic induction coil which heats the cook ware but not the cooking surface. The heat from the cook ware is transfer red to the food. • It’s important that you use only metal pans specifically designed and/or approved for use on induction hobs.
  • Page 17 heat setting indicators and Timer setting indicators shows “-”. 2. Place a suitable pan on the cooking zone you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. 3.

  • Page 18: To Turn Hob Off

    To Turn Hob Off You can turn the cooking zone off by adjust heat setting to level 0, which indicator shows“-“. 2. You can also turn the whole hob off by touching the ON/OFF control button. NOTES: • If there is power outage during cooking, all programmed settings will be cancelled, you need to reset the programme again.

  • Page 19: Flexible Areas-Induction Hob

    2. Touch the Booster function control button, the heating zone indicator will show b and flashing for 5 seconds then stop flashing. Then Booster function is activated, the power reach Maximum strength for 5 minutes, and then return to the pre-set heat setting. 3.

  • Page 20: Activate The Flexible Induction Area

    Activate The Flexible Induction Area To activate a flexible area as a single big zone, first press either of the two cooking zone selection buttons of this flexible area, then press the flexible area control button. When flexible area works, the indicator above corresponding flexible area control button lighting, the power level indicator flashing, you can adjust power level of the flexible area by slide the slider.

  • Page 21: Stop & Go Function

    2. Touch and hold the Child Lock control button for 3 seconds, the buzzer beeps once and “Lo” disappears in timer indicator, the Child Lock be inactive. 3. You can now start using your electric hob. Under the child lock mode, all controls button are disable except the ON/OFF and child lock .

  • Page 22: Deactivate Stop & Go Function

    Deactivate Stop & Go function To cancel Stop & Go function, you can press the Stop & Go function again, after come back. Then all Programmer setting will return to what they were, Stop & Go indicator “P” disappear from all indicators. When Stop &...
  • Page 23 Using the Timer as a Minute Reminder If you have not selected any cooking zones Touch the timer control button the number in timer indicator flashing. 2. Then adjust Minute Minder setting as follows below: Slider Touch control models • Touch the timer control button once, the number of single digit in timer indicator...

  • Page 24: Setting The Timer To Turn Cooking Zone Off

    touching of control buttons during it, would end up the buzzer beeps. Setting The Timer To Turn Cooking Zone Off Touch the heating zone selection control button to select the cooking zone you wish to set timer for. 2. Touch the timer control button , the number in timer indicator flashing.

  • Page 25: Detection Of Pan And Small Articles

    NOTES: The red dot next to power level indicator will illuminate for those zones be set with timer. You can check timer setting of different cooking zone which set with timer, by activate this cooking zone. If more than one heating zone has timer setting, the timer NOTE: The red dot next to power level indicator will indicator will show the lowest time.

  • Page 26: Residual Heat Warning

    Residual Heat Warning When the hob has been operating for some time, there will be some residual heat. The letter “ H ”appears to warn you to keep away from it. Auto Shutdown Another safety feature of the hob is auto shutdown. This occurs whenever you forget to switch off a cooking zone.

  • Page 27: Simmering, Cooking Rice

    • Start cooking on a high setting and reduce the setting when the food has heated through. Simmering, Cooking Rice • Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because flavors develop without overcooking the food.

  • Page 28: For Stir-Frying

    For Stir-Frying 1. Choose an ceramic compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons ofoil. 4.

  • Page 29: Part 5: Maintenance

    PART 5: MAINTENANCE The MODENA Electric cooker is designed specifically for long term usage and does not require complicated maintenance. However, there are several advices on how to maintain the quality of your stove. Glass/Ceramic Surface • Clean the dirty part of the glass / ceramic using a wet cloth or a special glass / ceramic cleaner, and then dry it using a fine cloth.

  • Page 30: Part 6: Troubleshooting

    PART 6: TROUBLESHOOTING Problem Possible Cause Recommended Action • When turn off the power supply of hob, there will be no ‘hot surface’ indication but the cooking zone may still be • Switch off the power supply. Everyday soiling hot! Take extreme care. •...
  • Page 31 Problem Possible Cause Recommended Action • Switch power supply. • Soak up the spill • The hob may beep and turn It • Wipe the touch control area self off, and the touch controls Spillovers on the may not function while there is with a clean damp sponge touch controls liquid on them.
  • Page 32 - This is normal, this is to help appliances completely cool down. 5. Some pans make crackling or clicking noises during use of induction hob: - This is normal, it’s the sound of induction coils during working, and for different construction of your cookware, the clicking might be slightly different.

  • Page 33: Part 7: Specification

    PART 7: SPECIFICATION MODEL BI 1625 F Type Electric ( Induction Hob ) Number of Burners 2 Free zone 400 x 200 mm 3000 W (3600 W Booster) x 2 Burner Composition Ø190 mm 2000 W (2600 W Booster) x 2 Ø190 mm 1500 W (2000 W Booster) x 2...
