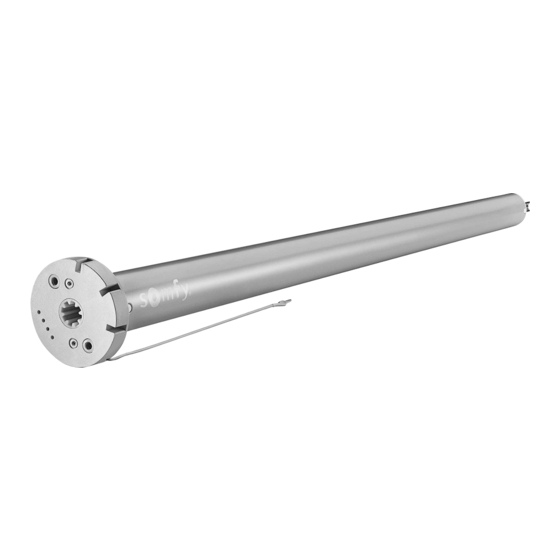

Sonesse ULTRA 30 WF Zigbee Li-ion TRANSLATED INSTRUCTIONS These instructions apply to all Sonesse ULTRA 30 WF Zigbee Li-ion drives, the different versions of which are available in the current catalogue. CONTENTS 1. Prior information................................1.1. Field of application............................1.2. Liability ................................
Page 3
Sonesse ULTRA 30 WF Zigbee Li-ion DANGER Indicates a danger which may result in immediate death or serious injury. WARNING Indicates a danger which may result in death or serious injury. PRECAUTION Indicates a danger which may result in minor or moderate injury.
2.1.Assembly 2.1.1.Preparing the drive CAUTION Sonesse ULTRA 30 WF Zigbee Li-ion : interior diameter of the tube has to be Ø27.7 mm or greater. 1] Fit the crown (a) and drive wheel (b) to the motor. (a)(b) 2] Measure the length (L) between the end of the drive wheel and the head end.
• Ensure battery is fully charged prior to installation on site. • Using this drive with any products which are not listed in the attached «Compatibility matrix» document shall also render invalid any Somfy warranty and release Somfy from any liability. 1] Connect the charger to the drive.
Sonesse ULTRA 30 WF Zigbee Li-ion 2.3.4.Network management NOTICE Network status when the motor wakes up: The motorised product briefly moves up and down. If the orange LED blinks, it is not linked to any network. If the LED doesn't light up and the motorised product briefly moves up and down, then it is linked to a network.
Sonesse ULTRA 30 WF Zigbee Li-ion 3.2.Controlling up, down, my 1] To move the motorised product from a limit to the other limit, briefly press the UP or DOWN button. 2] To stop the motorised product, briefly press the MY button.
4] Remove carefully the motor head from the tube taking care not to damage the wires and disconnect the battery. 5] Grab and remove the used battery using the hook tool available in the Somfy catalog or supplied with the battery pack, by sliding it out of the tube taking care not to damage the wires.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by SOMFY ACTIVITIES SA is under license. Other trademarks and trade names are those of their respective owners.
Sonesse ULTRA 30 WF Zigbee Li-ion INSTRUCCIONES TRADUCIDAS Este manual es aplicable a todas las motorizaciones Sonesse ULTRA 30 WF Zigbee Li-ion, cuyas versiones se encuentran disponibles en el catálogo actual. ÍNDICE 1. Información previa ............................... 11 1.1. Ámbito de aplicación............................
Page 12
Sonesse ULTRA 30 WF Zigbee Li-ion INFORMACIÓN GENERAL Normas de seguridad PELIGRO Señala un peligro que provoca inmediatamente la muerte o lesiones graves. ADVERTENCIA Señala un peligro susceptible de provocar la muerte o lesiones graves. PRECAUCIÓN Señala un peligro susceptible de provocar lesiones leves o moderadamente graves.
2.1.Montaje 2.1.1.Preparación de la motorización ATENCIÓN Sonesse ULTRA 30 WF Zigbee Li-ion : el diámetro interior del tubo debe ser de 27.7 mm o superior. 1] Introduzca la corona (a) y la rueda motriz (b) en el motor. (a)(b) 2] Mida la longitud (L) entre el extremo de la rueda motriz y el extremo del cabezal.
• Asegúrese de que la batería esté totalmente cargada antes de su instalación. • El uso de este motor con productos no incluidos en el documento adjunto «Matriz de compatibilidad» conllevaría la exclusión de cualquier responsabilidad por parte de Somfy y la anulación de la garantía. 1] Conecte el cargador al motor.
Sonesse ULTRA 30 WF Zigbee Li-ion 2.3.3.Ajustes de la motorización ▪ • Una vez que se haya descargado la aplicación Set&Go Connect, ábrala y siga las instrucciones para configurar la motorización. ▪ Después de configurarla, compruebe los ajustes pulsando el botón del cabezal del motor: ◦...
Sonesse ULTRA 30 WF Zigbee Li-ion Problemas Posibles causas Soluciones El producto automatizado se detiene Los finales de carrera están mal Reinicie los finales de carrera con la demasiado pronto. ajustados. aplicación Set & Go Connect . El producto automatizado ha excedido Sustituya el producto automatizado.
3.4.Cambio de la pila AVISO Somfy recomienda sustituir la batería por otra del mismo tipo al que se hace referencia 9027610disponible en el catálogo de Somfy. El uso de otro tipo de batería podría dañar el sistema y anular la garantía.
La marca con la palabra y los logotipos de Bluetooth® son marcas comerciales registradas propiedad de Bluetooth SIG, Inc. y cualquier uso de las mismas por parte de SOMFY ACTIVITIES SA se realiza bajo licencia. Las demás marcas y denominaciones comerciales pertenecen a sus respectivos propietarios.
Page 19
Sonesse ULTRA 30 WF Zigbee Li-ion Apple y los logotipos de Apple son marcas de Apple Inc., registradas en EE. UU. y otros países. iPad® y iPhone® son marcas registradas de Apple, Inc. App Store es una marca de servicio de Apple Inc.
Sonesse ULTRA 30 WF Zigbee Li-ion NOTICE TRADUITE Cette notice s'applique à toutes les motorisations Sonesse ULTRA 30 WF Zigbee Li-ion dont les déclinaisons sont disponibles au catalogue en vigueur. SOMMAIRE 1. Informations préalables............................... 20 1.1. Domaine d’application............................ 1.2. Responsabilité..............................
Page 21
Sonesse ULTRA 30 WF Zigbee Li-ion DANGER Signale un danger entraînant immédiatement la mort ou des blessures graves. AVERTISSEMENT Signale un danger susceptible d’entraîner la mort ou des blessures graves. PRÉCAUTION Signale un danger susceptible d’entraîner des blessures légères ou moyennement graves.
2.1.Assemblage 2.1.1.Préparation de la motorisation ATTENTION Sonesse ULTRA 30 WF Zigbee Li-ion : le diamètre intérieur du tube doit être de 27.7 mm ou plus. 1] Monter la couronne (a) et la roue (b) sur la motorisation. (a)(b) 2] Mesurer la longueur (L) entre l’extrémité de la roue et l’extrémité de la tête.
• S’assurer que la batterie est entièrement rechargée avant l’installation sur site. • L’utilisation de cette motorisation avec des produits non listés dans le document joint Matrice de compatibilité exclurait également toute responsabilité et garantie de Somfy. 1] Brancher le chargeur à la motorisation.
Sonesse ULTRA 30 WF Zigbee Li-ion 2.3.3.Réglages de motorisation ▪ Une fois l'application Set&Go Connect téléchargée, l'ouvrir et suivre les consignes pour régler la motorisation. ▪ Une fois la motorisation réglée, vérifier les réglages en appuyant sur le bouton de la tête du moteur : ◦...
Sonesse ULTRA 30 WF Zigbee Li-ion Constats Causes possibles Solutions Le produit motorisé s’arrête trop tôt. Les fins de course sont mal réglées. Remettre à zéro les fins de course avec l'application Set & Go Connect. Le produit motorisé a dépassé la limite Remplacer le produit motorisé.
5] Saisir et déposer la batterie usagée à l'aide du crochet proposé au catalogue Somfy ou fourni avec la batterie : la faire glisser hors du tube de la motorisation en faisant attention à ne pas endommager les câbles.
La marque et les logos Bluetooth® sont des marques déposées appartenant à Bluetooth SIG, Inc. et toute utilisation de ces marques par SOMFY ACTIVITES SA se fait sous licence. Les autres marques et noms commerciaux sont la propriété de leurs détenteurs respectifs.
Page 28
Sonesse ULTRA 30 WF Zigbee Li-ion Déclaration de la FCC : - Cet appareil est conforme à la partie 15 des règles de la FCC. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles ; et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable.
