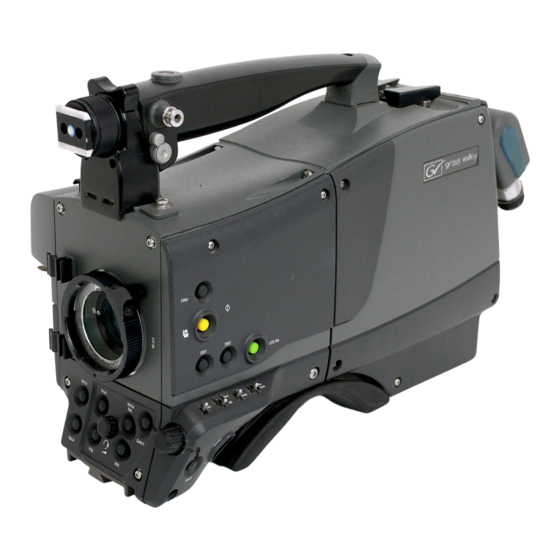

GRASS VALLEY LDX 80 Series Maintenance Manual
  1. Manuals
  2. Brands
  3. GRASS VALLEY Manuals
  4. Camera Accessories
  5. LDX 80 Series
  6. Maintenance manual

GRASS VALLEY LDX 80 Series Maintenance Manual

Hd camera head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LDX 80 Series - Focus 70-75
HD Camera Head Series
13-00062-000 v2.0
2020-06-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDX 80 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GRASS VALLEY LDX 80 Series

Summary of Contents for GRASS VALLEY LDX 80 Series

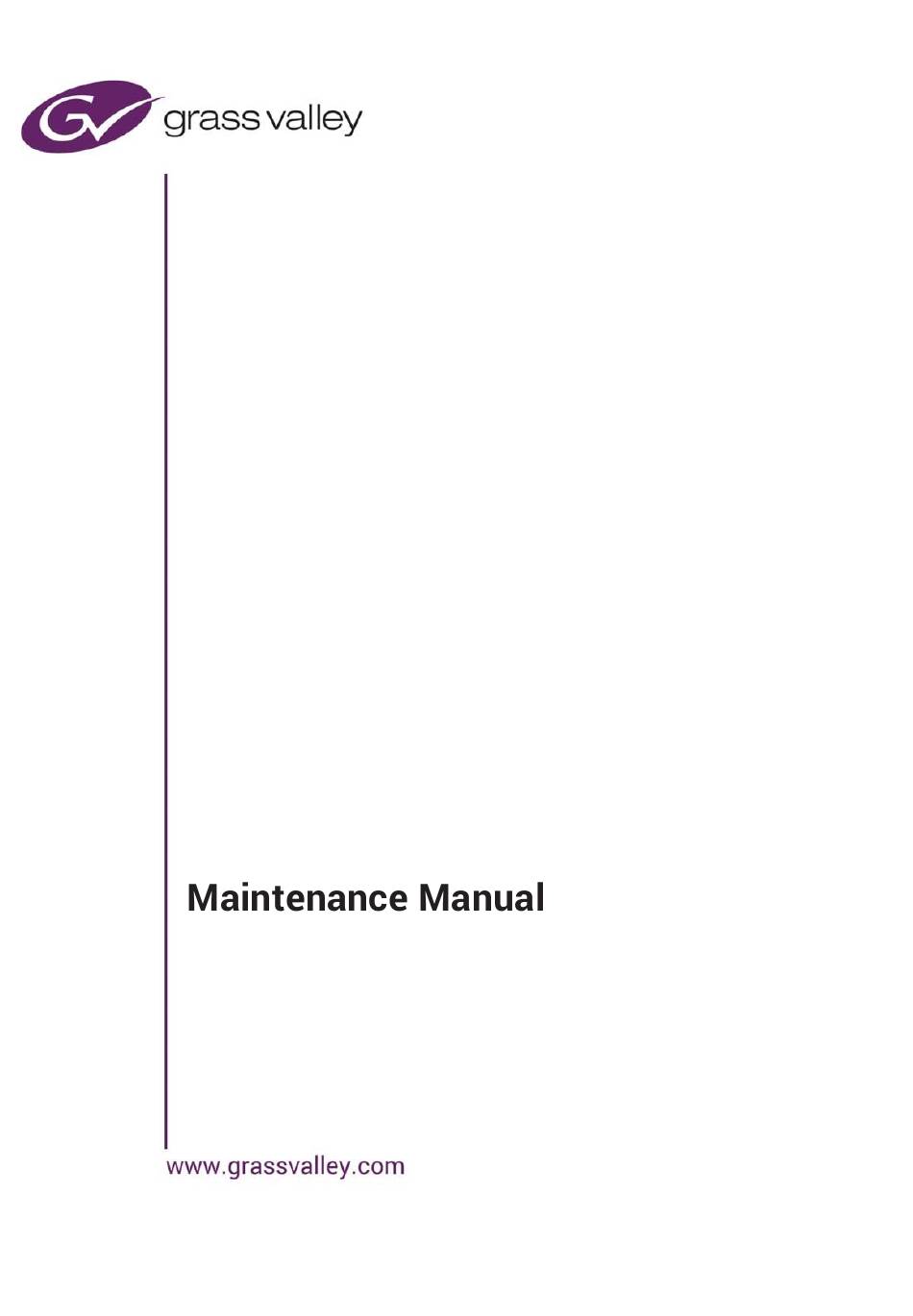

  • Page 1 LDX 80 Series - Focus 70-75 HD Camera Head Series 13-00062-000 v2.0 2020-06-22...

  • Page 2: Fcc Compliance

    Please read the following terms and conditions carefully. By using LDX IP Series documentation, you agree to the following terms and conditions. Grass Valley hereby grants permission and license to owners of LDX IP Series to use their product manuals for their own internal business use. Manuals for Grass Valley products may...

  • Page 3: Important Safety Information

    Use anti-static procedures, equipment and surfaces during servicing. The presence of this symbol in or on Grass Valley equipment means that it has been tested and certified as complying with applicable Underwriters Laboratory (UL) regulations and recommendations for USA.
  • Page 4 Notices Warnings A warning indicates a possible hazard to personnel, which may cause injury or death. Observe the following general warnings when using or working on this equipment: • Any instructions in this manual that require opening the equipment cover or enclosure are for use by qualified service personnel only.

  • Page 5: Electrostatic Discharge (Esd) Protection

    • Avoid extreme highlights as these can cause various kinds of optical reflections. • Be careful when connecting and disconnecting fiber cables. • Do not connect Grass Valley camera systems with other manufacturer’s camera system parts. • Make connections swiftly and firmly to avoid false error messages.

  • Page 6: Signification Des Symboles Utilisés

    Notices Mesures de sécurité et avis importants La présente section fournit des consignes de sécurité importantes pour les opérateurs et le personnel de service. Des avertissements ou mises en garde spécifiques figurent dans le manuel, dans les sections où ils s’appliquent. Prenez le temps de bien lire les consignes et assurez-vous de les respecter, en particulier celles qui sont destinées à...
  • Page 7 électrique, de compatibilité électromagnétique et de conformité environnementale. Le symbole ci-contre sur un appareil Grass Valley ou à l’intérieur de l’appareil indique qu’il est conforme aux normes applicables en matière de sécurité laser. Avertissements Les avertissements signalent des conditions ou des pratiques susceptibles d’occasionner des blessures graves, voire fatales.
  • Page 8 Notices • Ne pas utiliser cet appareil dans une atmosphère explosive. • Présence possible de courants de fuite. Un raccordement à la masse est indispensable avant la mise sous tension. • Après tout travail d’entretien ou de réparation, faites effectuer des contrôles de sécurité par le personnel technique qualifié.

  • Page 9: Environmental Information

    équivalent recommandé par le fabricant. Disposez des piles usagées conformément aux instructions du fabricant. Avant de vous séparer de votre équipement Grass Valley, veuillez consulter les informations de mise au rebut et de recyclage à: http://www.grassvalley.com/assets/media/5692/Take-Back_Instructions.pdf Précautions pour les écrans LCD et TFT Regarder l’écran pendant une trop longue période de temps peut nuire à...

  • Page 10: Lithium Batteries

    Lithium Batteries Battery Warning Your Grass Valley equipment usually comes with at least one button battery located on the main printed circuit board. The batteries are used for backup and should not need to be replaced during the lifetime of the equipment.

  • Page 11: Laser Safety

    LDX 100 User’s Guide Laser Safety - Fiber Output SFP and QSFP Modules Warning LASER SAFETY The average optical output power does not exceed 0 dBm (1mW) under normal operating conditions. Unused optical outputs should be covered to prevent direct exposure to the laser beam.

  • Page 12: Safety Standards

    Notices Safety and EMC Standards This equipment complies with the following standards: Safety Standards EN62368-1:2014 + AC:2015 Safety of Audio/video, information and communication technology equipment EMC Standards This unit conforms to the following standards: EN55032:2012 + C2:2013 Electromagnetic Compatibility - Emission EN55103-2:2009 Electromagnetic Compatibility - Immunity WARNING...
  • Page 13 EMC Performance of Cables and Connectors Grass Valley products are designed to meet or exceed the requirements of the appropriate European EMC standards. In order to achieve this performance in real installations it is essential to use cables and connectors with good EMC characteristics.
  • Page 14 LDX80-Focus 70/75 List of Field Replacable Units (FRUs): Part Number Description 510‐00006‐01 SIDEGRIP ASSY 3922 407 57423 V‐BLOCK MACHINED 510‐00009‐01 SHOULDERPAD ASSY...
  • Page 15 LDX80-Focus 70/75...
  • Page 16 GNDLS HEAD LDX80-Focus 70/75 List of Field Replacable Units (FRUs): Part Number Description Quantity 500-00014-01 FRONT MODULE FT CMOS 3922 407 51582 UV/IR FILTER ASSY 524-00022-03 PCB F--- SPIDERFLEX XENSIUM FT Au 3922 407 61233 OPTICAL SWITCH ASSY 4-000000030-00 FRU kit DUSTCAP 4-000000021-00 FRU kit COMBI SCR PAN STL ST M3X8 4-000000002-00 FRU kit Bajonet ring ↓...
  • Page 17 GNDLS HEAD LDX80-Focus 70/75...
  • Page 18 CAMERA HEAD BASIC CMOS List of Field Replacable Units (FRUs): Part Number Description Quantity 3922 407 40211 DIG.ZOOM HANDGRIP ASSY For LDX Series 3922 407 33621 HANDGRIP ASSY For FOCUS Series 4-000000029-00 FRU kit PCB F--- GENERIC FPC 45P 0.3MM L=68MM Au 524-00023-03 PCB F--- FPC 45P 0.3MM TL=160MM Au 4-000000020-00 FRU kit COMBI SCR PAN STL ST M3X6...
  • Page 20 3922 407 55801 - BOTTOM PLATE ASSY List of Field Replacable Units (FRUs): Part Number Description 3922 406 56001 INTERCON. POWER BRD 4-000000007-00 FRU kit CLB FLEX ↓ FRU kit contains Parts cannot be ordered separately 2422 015 18546 CLB FLEX 30P FFC 0.5 SUMICARD TL=81MM 30V 3922 205 00005 CLB FLEX 10P FFC 0.5 SUMICARD TL=46MM 30V 2422 015 19425...
  • Page 22 3922 407 55811 - FRONT PLATE ASSY List of Field Replacable Units (FRUs): Part Number Description Quantity 4-000000023-00 FRU kit PAN CAP SCR STL.ST M3x10 4-000000020-00 FRU kit COMBI SCR PAN STL ST M3X6 3922 406 55981 FRONT SWITCH PANEL 4-000000015-00 FRU kit Misc parts camera head ↓...
  • Page 24 3922 407 55831 TOP PLATE ASSY List of Field Replacable Units (FRUs): Part Number Description Quantity 3922 406 56021 PCBA Handgrip IF Board 4-000000020-00 FRU kit COMBI SCR PAN STL ST M3X6 4-000000007-00 FRU kit CLB FLEX ↓ FRU kit contains Parts cannot be ordered separately 2422 015 18546 CLB FLEX 30P FFC 0.5 SUMICARD TL=81MM 30V...
  • Page 26 3922 407 55841 - COVER LEFT ASSY List of Field Replacable Units (FRUs): Part Number Description Quantity 4-000000023-00 FRU kit PAN CAP SCR STL.ST M3x10 4-000000020-00 FRU kit COMBI SCR PAN STL ST M3X6 3922 406 55991 PCBA LSP BOARD 3922 406 56141 PCBA LSP Rotary Board 4-000000007-00 FRU kit CLB FLEX...
  • Page 28 3922 407 55851 COVER RIGHT ASSY List of Field Replacable Units (FRUs): Part Number Description 4-000000029-00 FRU kit PCB F--- GENERIC FPC 45P 0.3MM L=68MM 4-000000023-00 FRU kit PAN CAP SCR STL.ST M3x10 4-000000020-00 FRU kit COMBI SCR PAN STL ST M3X6 3922 406 55971 RIGHT COVER PANEL 3922 406 57401...
  • Page 30 HANDGRIP ASSY List of Field Replacable Units (FRUs): Part Number Description Quantity For LDX Series 3922 407 40211 DIG.ZOOM HANDGRIP ASSY 3922 407 33621 HANDGRIP ASSY For FOCUS Series 3922 407 39502 ZOOMCONTROL ASSY 4-000000015-00 FRU kit Misc parts camera head ↓...

This manual is also suitable for:

Ldx80-focus 70Ldx80-focus 75
