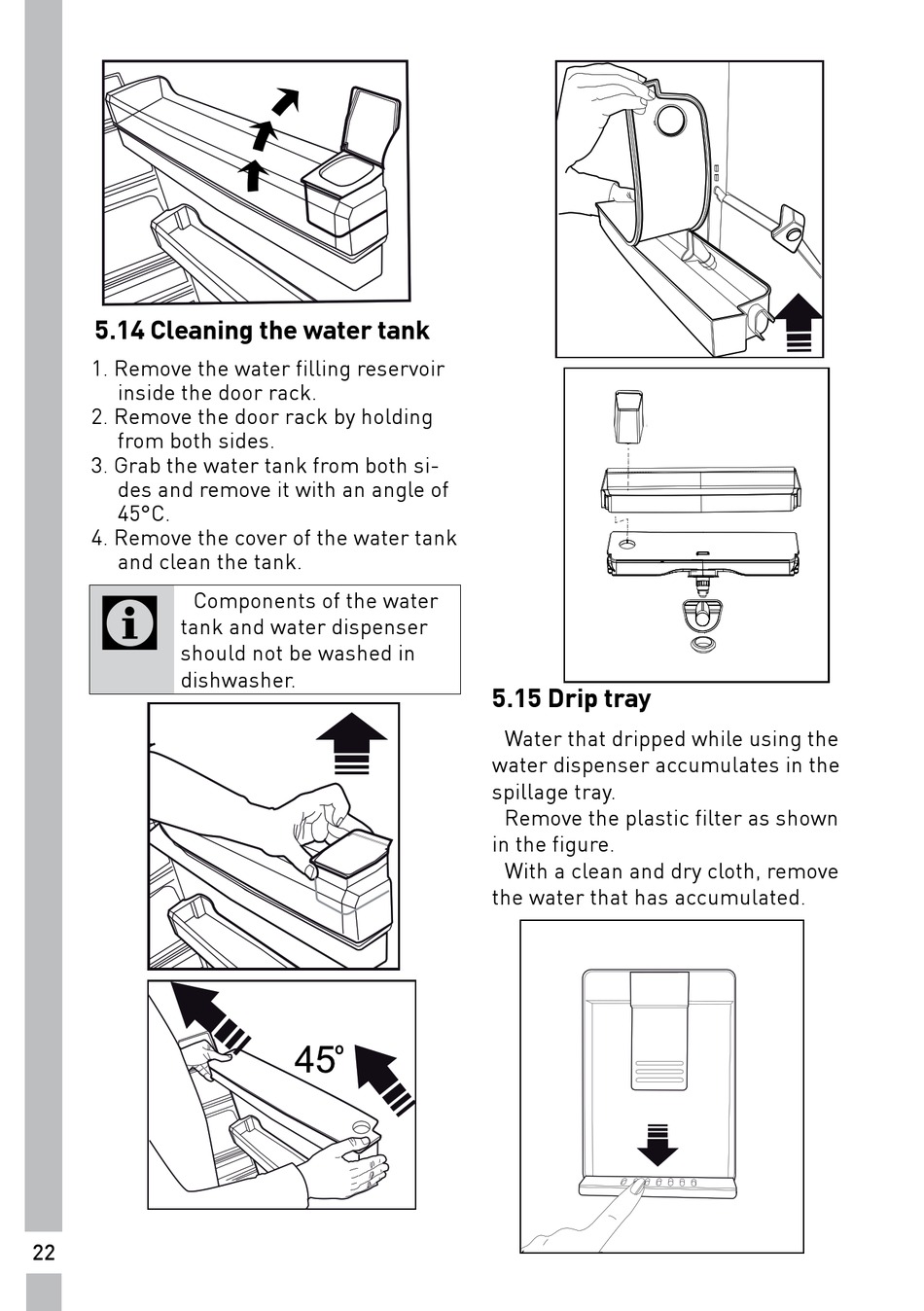

5.14 Cleaning the water tank

1. Remove the water filling reservoir
inside the door rack.
2. Remove the door rack by holding
from both sides.
3. Grab the water tank from both si-
des and remove it with an angle of
45°C.
4. Remove the cover of the water tank
and clean the tank.
C
Components of the water
tank and water dispenser
should not be washed in
dishwasher.
22

5.15 Drip tray

Water that dripped while using the
water dispenser accumulates in the
spillage tray.
Remove the plastic filter as shown
in the figure.
With a clean and dry cloth, remove
the water that has accumulated.
