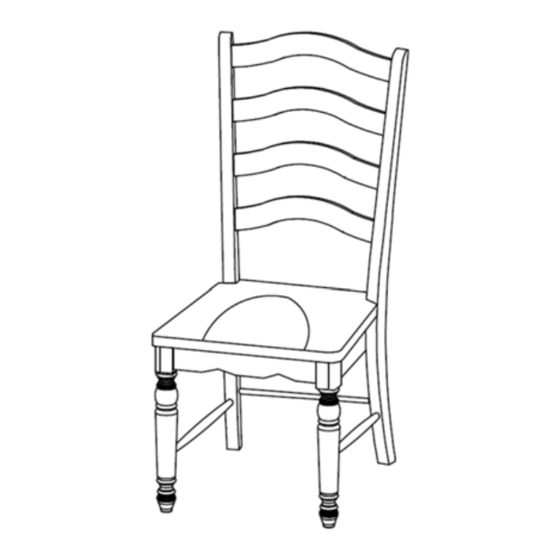

Furniture of America CM3122SC-2PK Assembly Instructions

Assembly Instructions

CM3122SC-2PK

ASSEMBLY RATING

Tools Required for Assembly:

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

Allen Wrench

(Included)

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

Phillips Screwdriver

(Not Included)

DIFFICULT

EASY

Page 1 of 5

Rev.14-05-16

Table of Contents

Do you have a question about the CM3122SC-2PK and is the answer not in the manual?

Page 1 Assembly Instructions CM3122SC-2PK ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult). For some products, two persons are recommended.
Page 2 Page 2 of 5...
Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc x 2 #A x 4 pcs x 2 Backrest w/Legs Bolt 5/16”x3”...
Page 4 Turn right (clockwise) to tighten #C x 1 pc #D x 1 pc #E x 1 pc Place the backrest with legs (#1) on a protected surface. Align the seat (#2) with the pre-drilled holes of the backrest with legs (#1). Prepare a bolt assembly by inserting FIRST the lock washer (#E) onto the bolt...
Page 5 Turn right (clockwise) to tighten #B x 4 pcs #D x 4 pcs #E x 4 pcs Align the two legs (#3) with the pre-drilled holes of the seat (#2). II. Prepare 4 bolt assemblies by inserting FIRST the lock washer (#E) onto the bolt (#B) and then the flat washer (#D) onto the SAME...
