VERSION
# 20-12-2 8
1 / 9
MODEL #
CM3182T-5PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3182T-5PK
Summary of Contents for Furniture of America CM3182T-5PK

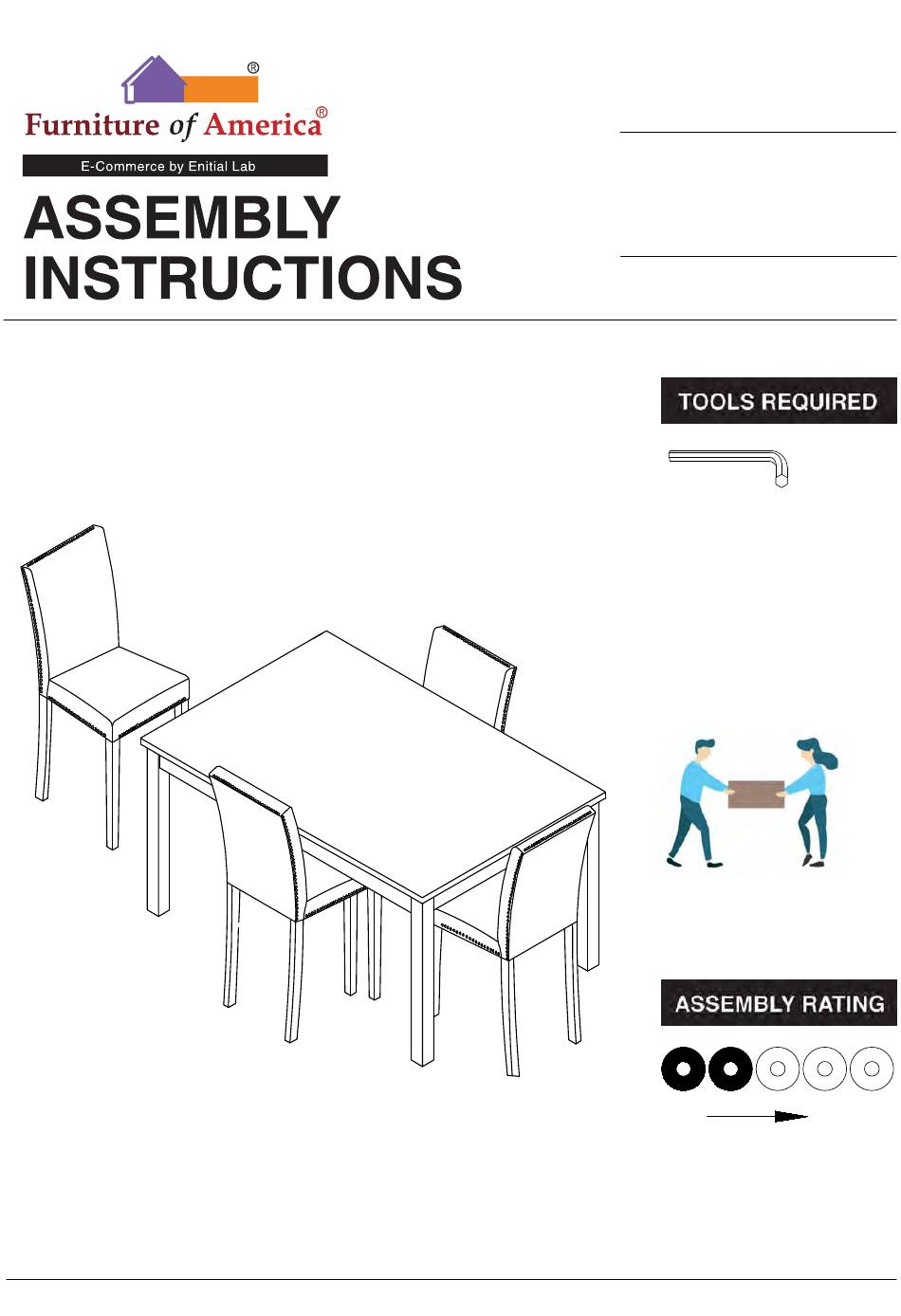

- Page 1 MODEL # CM3182T-5PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 9...
- Page 5 TABLE CM3182T-5PK #1 1pc #2 4pcs Table Top Table Legs #C 8pcs #A 8pcs #B 8pcs #D 1pc Bolt Ø5/16" x 2-1/4" Flat Washer Ø5/16" Lock Washer Ø5/16" Allen Wrench 5 / 9...
- Page 6 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #2 x4pcs Hardware #A x8pcs Align legs (#2) to the top (#1), then Hardware secure by using bolts (#A) with #B x8pcs washers (#B,C). Hardware #C x8pcs 6 / 9...
- Page 7 CHAIR CM3182T-5PK #1 1pc x4 #2 1pc x 4 #3 2pcs x 4 Chair Back Chair Seat Chair Legs #B 4pcs x4 #C 2pcs x4 #D 10pcs x4 #A 4pcsx4 Bolt Ø5/16" x 3-1/4" Bolt Ø5/16" x 2-1/4" Bolt Ø5/16" x 1-1/2"...
- Page 8 ASSEMBLY INSTRUCTIONS Align seat (#2) to the chair back Part #1 x1pc (#1), then secure by using bolts (#C) Part #2 x1pc with washers (#E,D). Hardware #C x2pcs Hardware #D x2pcs Hardware #E x2pcs Hardware #A x4pcs Secure corner holes of the seat Hardware #E x4pcs (#2) to the chair back (#1) by...
- Page 9 ASSEMBLY INSTRUCTIONS Align front legs (#3) to the seat, then secure by using bolts (#B) with Part # 3 x2pcs washers (#E,D). Hardware #B x4pcs Hardware #D x4pcs Hardware #E x4pcs 9 / 9...
