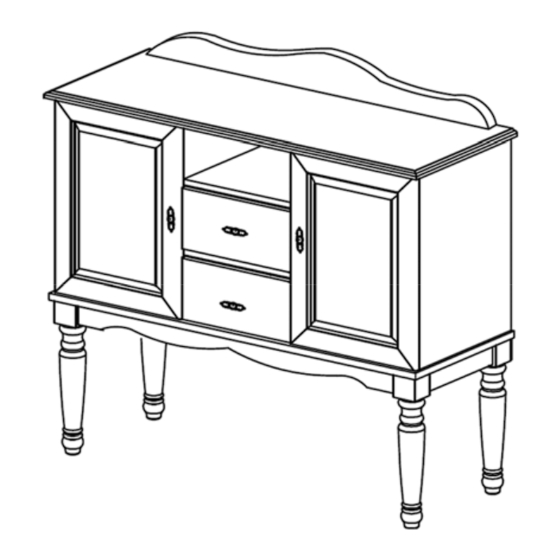

CM3122SV
ASSEMBLY RATING
Tools Required for Assembly
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
Allen Wrench
(Included)
assembling a specific product (with 1 being
easy and 5 being difficult). For some
Phillips Screwdriver
products, two persons are recommended.
(Not Included)
DIFFICULT
EASY
2 PERSONS RECOMMENDED
Page 1 of 4
Rev.14-05-19
Advertisement
Table of Contents
Related Manuals for Furniture of America CM3122SV
Summary of Contents for Furniture of America CM3122SV
- Page 1 Assembly Instructions CM3122SV ASSEMBLY RATING Tools Required for Assembly The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult). For some Phillips Screwdriver products, two persons are recommended.
- Page 2 Page 2 of 4...
- Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc #A x 8 pcs Server Bolt 5/16”x2-3/8” #B x 8 pcs #2 x 4 pcs Flat Washer #C x 8 pcs...
- Page 4 With the help of another person, carefully place the server (#1) upside down on a protected surface. Align the legs (#2) with the pre-drilled holes on the corners of the server (#1). Prepare 8 bolt assemblies by inserting FIRST the lock washer (#C) onto the bolt (#A) and then the flat washer (#B) onto the SAME bolt (#A), in that order.
