VERSION # 20 - 0 1- 04
9
1 / 8
MODEL #
CM3199PT
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3199PT
Summary of Contents for Furniture of America CM3199PT

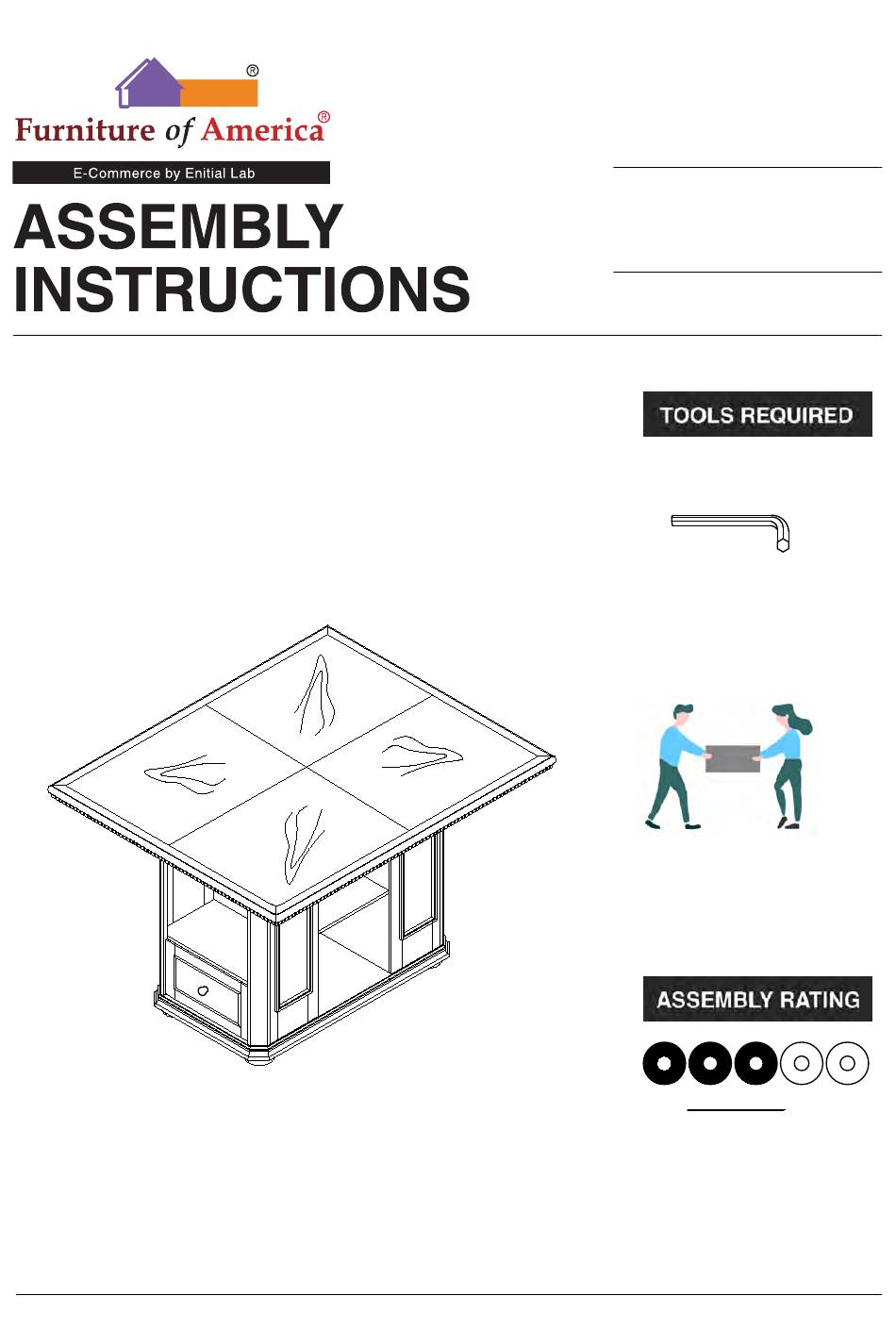

- Page 1 MODEL # CM3199PT Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 PUB TABLE CM3199PT #1 1pc #2 1pc #3 4pcs Cabinet Body Top Table Foot #4 1pc Center Leg #A 4pcs #B 4pcs #C 4pcs Lock Washer Flat Washer Bolt Ø5/16" x 1-3/4" Ø5/16"x13mm Ø5/16"x19mm #D 1pc Allen Wrench M4 5 / 9...
- Page 6 6 / 9 6 / 8...
- Page 7 CM3199PT is packed in 2 cases Carton Disignation Part Hardware #A x 4pcs #B x 4pcs CM3199PT-1 Top Table #C x 4pcs #D x 1pc Cabinet Body CM3199PT-2 Foot (4pcs) 7 / 9...
- Page 8 ASSEMBLY INSTRUCTIONS Part #2 x1pc OPEN FEET BOX Align legs (#3) to the cabinet body (#2), then adjust leveler on the legs (#3) according to ground level. Part #3 x4pcs Part #4 x1pc Attach support leg (#4) to the cabinet body (#2), then adjust leveler on the leg (#4) according to ground level.
- Page 9 ASSEMBLY INSTRUCTIONS Align table top (#1) to cabinet body (#2), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Hardware #A x4pcs Hardware #B x4pcs Hardware #C x4pcs 9 / 9 8 / 8...
