StarTech.com KEYBOARD-TRAY-CLAMP1 Quick Start Manual

Desk Clamp Keyboard Tray

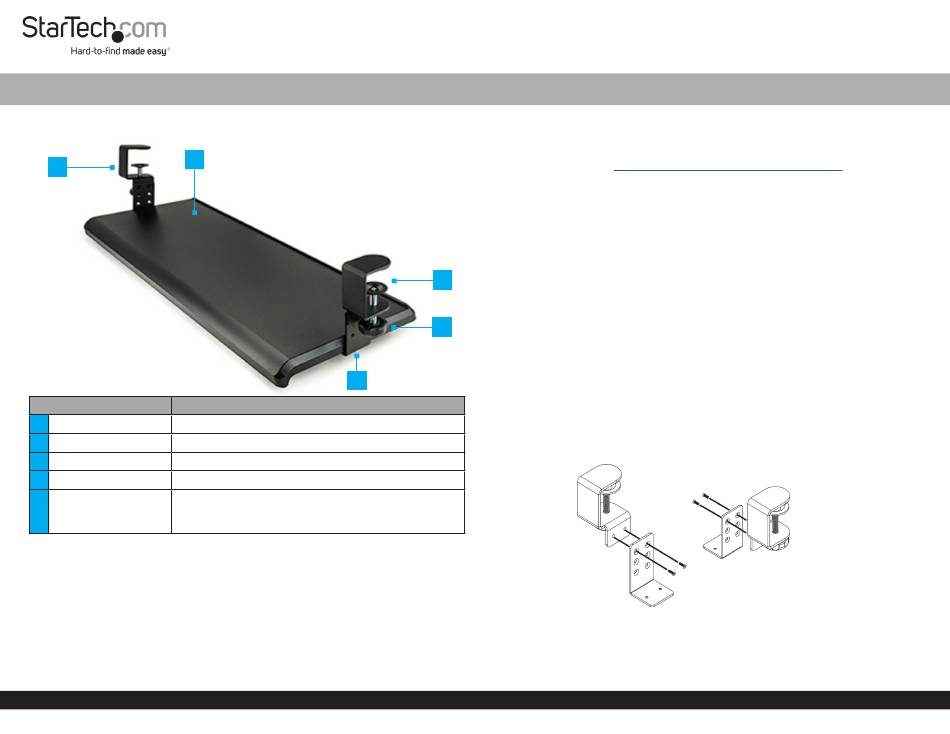

Product Diagram (KEYBOARD-TRAY-CLAMP1)

2
1
Component
1 Desk Clamp, Left • Attach the Keyboard Tray to the Desk
2 • Place a keyboard and a mouse on the Keyboard Tray
Keyboard Tray
3 Desk Clamp, Right • Attach the Keyboard Tray to the Desk
4 Clamp Knob • Turn by hand to secure the Clamp to the Desk
• Adjust the height between the Desk and the
Height Adjustment L
Keyboard Tray
5
Bracket
• Attach the Keyboard Tray to the Desk Clamp

Package Contents

• Keyboard Tray x 1
• Height Adjustment Screws x 5
• Tray Mounting Screws x 5
• Height Adjustments L Brackets x 2
• Desk Clamp Left x 1
• Desk Clamp Right x 1
• Quick-star Guide x1
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
3
4
5
Function

Requirements

For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit: www.startech.com/KEYBOARD-TRAY-CLAMP1
• Phillips Head Screwdriver

Installation

WARNING!
Do not exceed the weight capacity of this product. Overloading this product might
result in injury or property damage. This product can support the following weight: up
to 11.8 kg (26 lbs).
Ensure the mounted Keyboard Tray is properly secured to the Desk before use.
Attach the Desk Clamp to the Height Adjustment L
Brackets
1. Determine the desired height between the Desk and the Keyboard Tray: 100,
120, or 140 mm (3.9, 4.7, or 5.5 in). Each row of holes on the Height Adjustment
L Bracket are spaced 20 mm apart. The row of holes, located closest to the bend
of the Height Adjustment L Brackets, provides the minimum height adjustment
setting of 100 mm (3.9 in).
2. Secure the Height Adjustment L Bracket to the Desk Clamps using the Height
Adjustment Screws (x2 shorter screws) and tighten using a Phillips Head
Screwdriver to complete the first Desk Clamp Assembly (Figure 1).
3. Repeat steps 2 and 3 to install the second Desk Clamp Assembly

Attach the Desk Clamp Assemblies to the Keyboard Tray

1. Flip the Keyboard Tray upside down and align the mounting holes located on
Quick-Start Guide
Figure 1
