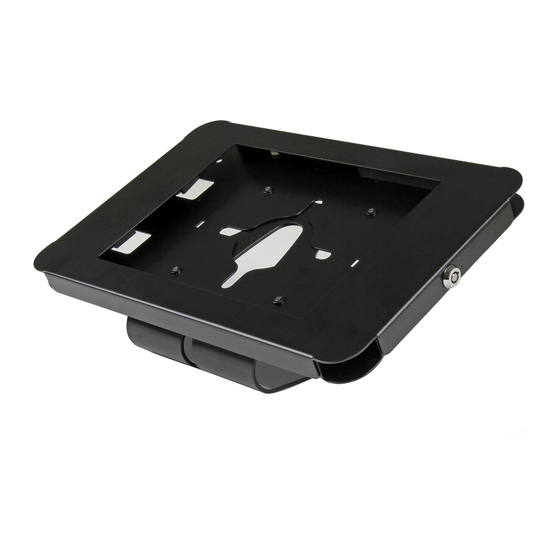

  • Page 1 Secure iPad Enclosure with Surface Mount SECTBLTPOS *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.startech.com/SECTBLTPOS.

  • Page 2: Table Of Contents

    Table of Contents Introduction ....................1 Packaging contents ..........................1 Product diagram ..................3 Front view ..............................3 Rear view ..............................3 Assemble the iPad enclosure ...............4 Attach the pads to the plates........................ 4 Insert an iPad .............................. 7 Attach the iPad enclosure to a wall ....................8 Attach the iPad enclosure to a table or desk ...................

  • Page 3: Introduction

    Introduction The SECTBLTPOS provides a secure way to mount your iPad to a table, wall, or standard VESA monitor mount. You can use the SECTBLTPOS to create a secure point-of-sale system, an interactive marketing kiosk, or an educational display. The SECTBLTPOS is designed to be used with the iPad, iPad 2, iPad (3 generation), iPad generation), or the iPad Air.
  • Page 4 45x15x2 mm EVA pads 12.7x2 mm rubber pads 5x20 mm self-tapping screws Qty: Eight Qty: Four Qty: Three 15.4x5.0x2.0t flat washers 35x1.0t flat washers Instruction manual Qty: Three Qty: Two Qty: One Instruction manual...

  • Page 5: Product Diagram

    Product diagram Front view Front plate Security lock Rear plate Bracket Rear view Front plate Rear plate Bracket Instruction manual...

  • Page 6: Assemble The Ipad Enclosure

    Assemble the iPad enclosure Attach the pads to the plates 1. Use one of the security keys (4) to unlock the plates. 2. Remove the front plate (2) from the rear plate (3) (figure 1). figure 1 Security lock 3. Turn over the front plate. 4.
  • Page 7 figure 3 8. Remove the backing from the two 25x100x15 mm foam pads (7). 9. On the rear plate, affix the pads in front of the tabs on the sides closest to the center of the plate (figure 4). figure 4 Depending on the version of iPad that you’re using, do one of the following: •...
  • Page 8 figure 5 figure 6 figure 7 Instruction manual...

  • Page 9: Insert An Ipad

    Note: Make sure that all of the necessary cables are plugged into the iPad before you insert it into the SECTBLTPOS. 1. Thread the iPad cables through the hole in the bottom of the rear plate (3). 2. Place the iPad in the rear plate so that it’s sitting on the two 25x100x15 mm foam pads (7) (figure 8).

  • Page 10: Attach The Ipad Enclosure To A Wall

    3. Make three holes in the wall in the location where you want to attach the SECTBLTPOS. Tip! To make sure that the holes are in the right location and are spaced correctly, hold the mounting bracket up to the wall and use a pencil to trace the holes in the mounting bracket onto the wall.

  • Page 11: Attach The Ipad Enclosure To A Table Or Desk

    Attach the iPad enclosure to a table or desk You have the option to attach the SECTBLTPOS to a table or desk in a fixed position or one that rotates. 1. Line up the holes on the mounting bracket (1) with the four holes on the back of the rear plate (3).

  • Page 12: Set Up The Ipad Enclosure On A Table Or Desk

    (3). 2. Use the four M4x8 mm hex screws (8) and the 2.5 mm Allen key (9) to attach the mounting bracket to the rear plate. 3. Place the SECTBLTPOS on the top of a table or desk. Instruction manual...

  • Page 13: Attach The Ipad Enclosure To A Universal Vesa Mount

    Attach the iPad enclosure to a universal VESA mount 1. Line up the universal VESA mount with the four holes on the back of the rear plate (3). 2. Use the four M4x8 mm hex screws (8) and the 2.5 mm Allen key (9) to attach the VESA mount to the rear plate (figure 15).

  • Page 14: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
