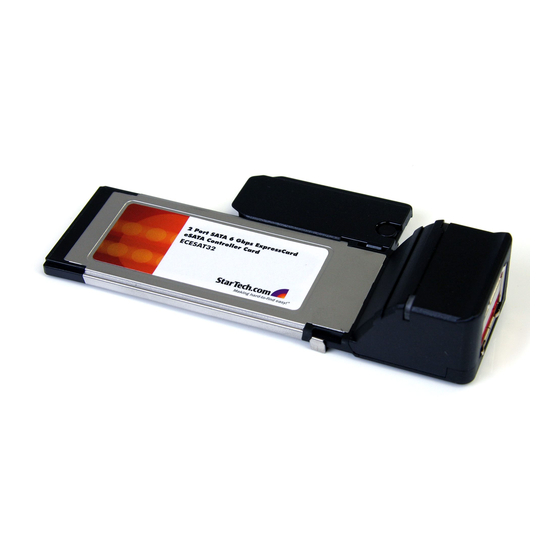

- Page 1 ECESAT32 Instruction Manual ExpressCard Serial ATA Adapter Card 2-Port SATA 6Gbps ExpressCard to eSATA Controller Card Manual Revision:07/12/2010 For the most up-to-date information, please visit www.startech.com...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Driver Installation .................2 ECESAT32 View ................2 Verifying Installation ..............3 How to Use ..............4 RAID Configuration ..............4 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction
Introduction The StarTech.com 2-Port eSATA ExpressCard Controller Cards offers simple connectivity between a laptop computer system and eSATA revision 3.0 devices. A cost-effective solution for connecting high RPM hard drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving. With full support for SATA revision 3.0 hard drives and data transfer speeds of up to 6 Gbps, as... -
Page 5: Installation
ECESAT32 View Installation Hardware Installation The ExpressCard adapter will simply slide into the ExpressCard slot on any compatible system. Push the card all the way in, until it ‘clicks’ and locks into place. To eject the card, simply push the card further into the slot until it clicks, and then release and it will then be automatically ejected from the slot. -
Page 6: Verifying Installation
4. Once Windows has located the drivers and installed them, the card should be ready for use. Windows 7 No driver installation is required for Windows 7, as the controller card is natively supported, so the drivers are already installed. Verifying Installation Windows XP/Server 2003/Vista/Server 2008 R2/7 From the main desktop, right-click on “My Computer”... -
Page 7: How To Use
How to Use RAID Configuration To setup a RAID array using the drives connected to the SATA controller card, the BIOS level configuration menu must be accessed. To access the configuration menu, during POST (computer startup), the status display for the controller card will display. When prompted, pressing [CTRL] + [m] will enter the configuration menu. -
Page 8: Specifications
Specifications ExpressCard 2.0* Bus Interface SATA revision 3.0 Form Factor ExpressCard/34 Chipset ID Marvell 9128 Connectors 2 x 7-pin eSATA Maximum Data Transfer Rate SATA: 6Gbps RAID Support 0, 1, JBOD (single) Port Multiplier Support Operating Temperature 5°C ~ 50°C (41°F ~ 122°F) Storage Temperature -25°C ~ 70°C (-13°F ~ 158°F) Humidity... -
Page 9: Technical Support
