Related Manuals for CASABREWS 5700 PRO
Summary of Contents for CASABREWS 5700 PRO
- Page 1 CASABREWS BRANDS INC. 1360 S Valley Vista Dr. , Suite 108 Diamond Bar, California 91765 United States of America support@casabrews.com www.casabrews.com Rev 1.0...
- Page 2 INSTRUCTION MANUAL Espresso Co ee Machine Model: 5700 PRO Scan & Save! Scan the QR code, register your product, and get a 6-month Extended Warranty! support@casabrews.com HOUSEHOLD USE ONLY Please read all instructions carefully before using the product...
-
Page 4: Table Of Contents
Contents IMPORTANT SAFEGUARDS ...................... 1-3 KNOW YOUR COFFEE MACHINE ....................4 CONTROL PANEL .......................... 5 SPECIFICATIONS .......................... 6 BEFORE FIRST USE ........................7 FILLING THE WATER TANK ....................... 7 ATTACHING THE BEAN CONTAINER .................. 7 ATTACHING THE FILTERHOLDER BRACKET ..............7 INITIAL USE ............................ -
Page 5: Important Safeguards
Do not use appliance for other than intended use and place it in a dry environment. Be careful not to get burned by the steam. Do not touch any hot surface of the appliance (such as steam wand, and the steel mesh . Use handle or knobs. support@casabrews.com | 1... - Page 6 If a long detachable power-supply cord or extension cord is used: 1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance; 2 | support@casabrews.com...
- Page 7 If you want to add more water to the water tank, press the power button until the appliance powers o . Do not touch the top cover of the machine after the machine has been working for a long time WARNING so as to prevent burns. support@casabrews.com | 3...
-
Page 8: Know Your Coffee Machine
14. Water Tank 23. Tamping Mat 6. Grind Bracket 15. Steam Knob 24. Decorating Pen 7. Main Body 16. Silicon Steam Tube 25. Milk Jug 8. Drip Plate 17. Steam Wand 9. Drip Tray 18. Single Espresso Filter 4 | support@casabrews.com... -
Page 9: Control Panel
C. DOSE Button: Press to select the single/double grind amount, turn to increase/decrease the grind time. D. SINGLE Button: Press to brew a single espresso. E. DOUBLE Button: Press to brew a double espresso. F. LCD Display Screen: With grinding and extracting progress animations. support@casabrews.com | 5... -
Page 10: Specifications
Length of power cord: Dear customer, Thank you for your purchase of the CASABREWS Espresso Co ee Machine. To ensure you get the best use of this machine, please take the time to read this manual and learn how to use this espresso machine with integrated grinder, even if you are an experienced home barista –... -
Page 11: Before First Use
To get the best flavor and extraction, we recommend changing the co ee beans in the bean container at least once a week. ATTACHING THE FILTERHOLDER BRACKET Hang the portafilter bracket onto the machine by lifting it slightly, then push it downwards. support@casabrews.com | 7... -
Page 12: Initial Use
Pour out the hot water and place the empty cup under the brew head. Press the single button once. Let the machine run through a cycle. After the brewing cycle has finished, pour the water out. Now your machine is ready to use. 8 | support@casabrews.com... -
Page 13: How To Use The Grinder
Only grind roasted co ee beans in this machine. Do not process any other foods, such as nuts, WARNING spices or liquids, to avoid damaging the grinder. Please do not operate the grinder when it is empty, i.e. without co ee beans. support@casabrews.com | 9... -
Page 14: Selecting The Filter Size
Insert the portafilter into the bracket. If required, press the DOSE button to select the filter basket size; Single or Double. If required, turn the DOSE dial to change the grind time; clockwise to increase the time and anti-clockwise to decrease. 10 | support@casabrews.com... -
Page 15: Manual Grinding
To manually grind the co ee bean, push and hold the portafilter in the bracket until the desired amount of ground co ee has been ground. To stop grinding, release the portafilter. The timer will count up, displaying the grind time. support@casabrews.com | 11... -
Page 16: How To Tamp The Ground Coffee
The surface of ground co ee should not be beyond the MAX mark after NOTE: tamping, otherwise the portafilter might not be able to be locked into the brew head. 12 | support@casabrews.com... -
Page 17: How To Make A Espresso
If the pressure shown on the LCD is between 6-12 bar, it means the espresso has been extracted at the ideal pressure. Features: * Slow flow like warm honey. * Crema is golden brown with a fine mousse texture. * Espresso is dark brown. support@casabrews.com | 13... -
Page 18: Under Extraction
Turn the DOSE dial to select the shot temperature you want, then press the DOSE dial. Selecting the shot temperature The machine will beep to indicate that the customer setting has been programmed. The machine will return to READY mode. 14 | support@casabrews.com... -
Page 19: How To Program The Volume Of Single/Double Espresso
The adjustable volume for a single espresso ranges between 20 ml/0.68 oz and 60 ml/2.03 oz, NOTE: and a double espresso ranges between 60ml/2.03 oz and 100 ml/3.38 oz. The machine will fail to program volumes outside of this range. support@casabrews.com | 15... -
Page 20: Resetting To Defaults
To stop the hot water, turn the knob back to the OFF position. Making hot water The hot water will stop after 45 seconds automatically, but the knob must be turned back manually NOTE: to the standby position. 16 | support@casabrews.com... -
Page 21: How To Froth The Milk
3 o’clock position. * Turn the STEAM knob to the STEAM position. * Keep the steam wand tip just under the surface of the milk until the milk is spinning clockwise, producing a vortex. support@casabrews.com | 17... - Page 22 Ensure the STEAM knob is in the OFF position before removing the steam wand from the milk jug. After frothing milk, it is recommended to flush the residual milk from the steam wand. The LCD will display CLEAN NOZZLE 5 times to remind you to clean the steam wand. 18 | support@casabrews.com...
-
Page 23: Cleaning And Mantainance
Running the FLUSH cycle Once the FLUSH cleaning cycle is complete, the machine will beep and return to READY mode. Empty and rinse the cup and portafilter, and clean the drip tray. support@casabrews.com | 19... -
Page 24: Descaling
DESCALE, then press to start the descaling cycle. Once the DESCALE cycle is complete, the machine will beep and return to READY mode. Remove and rinse the water tank. Dry thoroughly before reattaching it to the machine. 20 | support@casabrews.com... -
Page 25: Cleaning The Grinder
Periodically purge the machine. Place an empty filter basket and portafilter into the brew head. Press the single button and run a short flow of water to rinse out any residual co ee. Remove the portafilter and rinse thoroughly. support@casabrews.com | 21... -
Page 26: Cleaning The Filters And Portafilter
PLEASE EMPTY TRAY. Remove the drip tray from the machine and separate the parts. Wash all parts in warm soapy water with a soft cloth. Rinse and dry thoroughly before reassembling and attaching to the machine. 22 | support@casabrews.com... -
Page 27: Error Mode
If the machine shows “CLEAN GRINDER” on the LCD, remove and clean the grinder, then reattach the grinder to the machine. If the machine show “E01” on the LCD, check and return the STEAM knob to the “OFF” position. support@casabrews.com | 23... - Page 28 If the machine shows “E02” on the LCD, press either the single or double button. If the machine shows “E10” on the LCD, please contact our customer support team. If the machine shows “C00” on the LCD, please contact our customer support team. 24 | support@casabrews.com...
-
Page 29: Troubleshooting
Water tank is not fully inserted and Push water tank down completely to lock into locked into position. place. No steam. Machine needs to be descaled. Run descale cycle. Steam wand is blocked. Clean the steam wand. support@casabrews.com | 25... - Page 30 No ground co ee coming from grinder. Blockage or foreign object in grinder. Remove hopper, check for debris or blockage. If necessary, clean and clear grinder chamber and chute. NOTE: If your problem is not listed here, please contact Customer Support. 26 | support@casabrews.com...
-
Page 31: Warranty Information
If you have any questions or concerns about your new product, please contact our helpful Customer Support Team. Contact our team by email： Support@CASABREWS.com Or scan the QR code for an additional barista book and more support. * Please have your invoice and order ID ready before contacting Customer Support. support@casabrews.com | 27...
Need help?
Do you have a question about the 5700 PRO and is the answer not in the manual?
Questions and answers

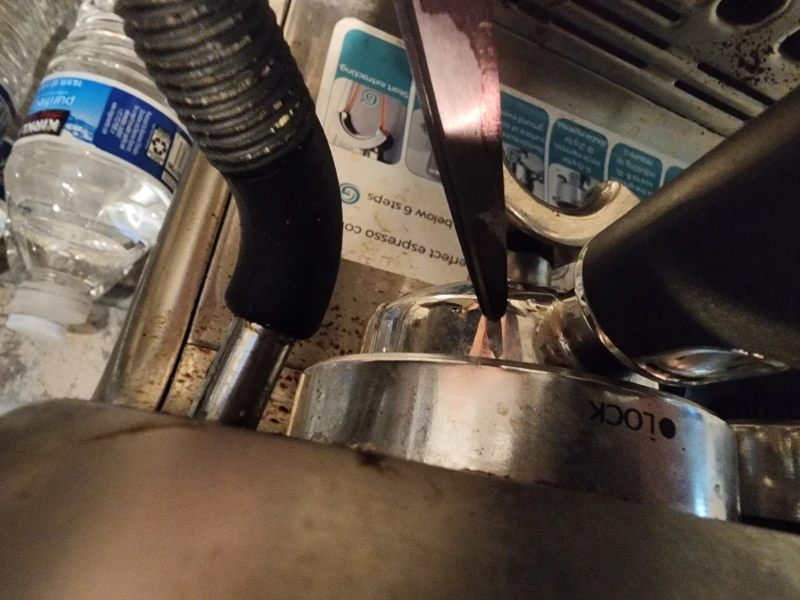

My expresso machine leaks around the extractor. What can cause this problem
