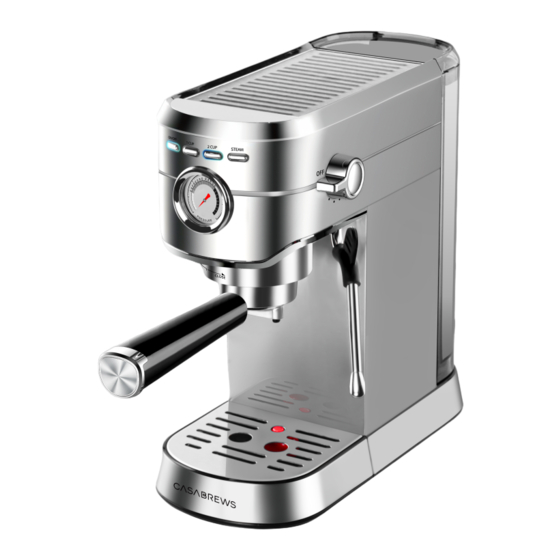

- Page 1 INSTRUCTION MANUAL Espresso Co ee Machine Model: CM����BC-UL Scan & Save! Scan the QR code, register your product, and get a 6-month Extended Warranty ! support@casabrews.com HOUSEHOLD USE ONLY Please read all instructions carefully before using the product...
-
Page 2: Table Of Contents
Contents IMPORTANT SAFEGUARDS ..................... SAVE THESE INSTRUCTIONS ..................... SPECIFICATIONS .......................... KNOW YOUR COFFEE MAKER ....................CONTROL PANEL ........................BEFORE FIRST USE ........................MAKING ESPRESSO ........................MAKING HOT WATER ........................FROTHING MILK/ MAKING CAPPUCCINO OR LATTE ............PROGRAMMING THE VOLUME ....................OVER HEATING PROTECTION .................... -
Page 3: Important Safeguards
Do not use the appliance other than for the intended use. Always supervise closely when the appliance is used by or near children. Be careful when using the appliance, as steam may escape and pose a risk of getting scalded. support@casabrews.com | 1... - Page 4 – sta kitchen areas in shops, o ces and other working environments; – farm houses; – bed and breakfast type environments. Do not use outdoors. Do not place on or near a hot gas or electric burner, or in a heated oven. 2 | support@casabrews.com...
-
Page 5: Save These Instructions
( 3 ) If the appliance is of the grounded type, the cord or extension cord should be a grounding-type 3-wire cord. SPECIFICATION: Model: CM����BC-UL ���V~ ��Hz Voltage: ����W Power: ��OZ Capacity of Water Tank: �x Single Filter, �x Double Filter, �x Portafilter, �x Co ee Spoon, �x Cleaning Needle Accessories: support@casabrews.com | 3... - Page 6 (Product may be subject to change without prior notice) Water Tank Cover Handle Water tank Control Panel Knob Pressure Gauge Steam handle Brewing filter Filter Holder Steam wand Portafilter Co ee spoon Drip plate Drip tray Cleaning Needle 4 | support@casabrews.com...
-
Page 7: Control Panel
A. Power Button: Press to turn on/o your co ee machine. B. 1 CUP Button: Press to start/stop brew a single shot espresso. C. 2 CUP Button: Press to start/stop brew a double shot or double shots espresso. D. STEAM Button: Press to enter/exit steam mode. support@casabrews.com | 5... -
Page 8: Before First Use
Using the co ee spoon, add ground co ee to the brewing filter (a spoonful of ground co ee will make about one cup of top-grade co ee) then tamp the ground co ee down tightly with the spoon. 6 | support@casabrews.com... -
Page 9: Making Hot Water
When the espresso is ready, fill a jug with about 120ml/4 oz of milk. Using cold, whole milk is recommended. A jug with a diameter of 70-75mm is recommended. Please bear in mind that the milk doubles in volume, so make sure the jug has su cient height. support@casabrews.com | 7... - Page 10 This will help to cool the boiler down quickly. Then the machine will be ready for the next brew. If you do not want to brew co ee when the high-temperature warning occurs, you can press the 1 cup or 2 cup button again to cancel. 8 | support@casabrews.com...
-
Page 11: Programming The Volume
If no operation is selected after 29 minutes of being powered on, the unit will power down automatically. If no operation is selected after 215ml/7.27 oz of water is pumped out, the pump will stop automatically. If no operation is selected after 180 seconds of frothing milk, the pump will stop automatically. support@casabrews.com | 9... -
Page 12: Cleaning And Maintenance
Immediately after frothing milk, turn steam on to purge out any residual milk from the steam wand. Clean the steam wand with a damp cloth. To clean it more thoroughly, you can unscrew the Steam Tube and wash it with running water. 10 | support@casabrews.com... -
Page 13: Cleaning The Brew Head
Press either the “1 CUP” or “2 CUP” button. The brewing will begin shortly. The appliance will stop automatically once the brewing process is finished. WARNING Do not try to disassemble the brew head. It will damage the brew head and lead to leakage. support@casabrews.com | 11... -
Page 14: Descaling The Appliance
Next, repeat the process two more times using only CLEAN TAP WATER without any descaling agent. After you have finished the descaling, you need to cancel the descaling warning: simultaneously press and hold the “1 cup” button, “2 cup” button and “Steam” button for 3 seconds. 12 | support@casabrews.com... -
Page 15: Troubleshooting
Let hot water run through the appliance with the inserted portafilter (with filter but without co ee grounds) before extracting the first co ee to warm Co ee is cold. up the brew system. Cups not pre-warmed. Pre-warm cups with warm water. support@casabrews.com | 13... - Page 16 Maker espresso after frothing milk or Use hot water function to cool down the boiler first. using the steam function immediatelly. The machine is faulty. Contact our customer support. NOTE: If your problem is not listed, please contact Customer Support. 14 | support@casabrews.com...
-
Page 17: Warranty Information
If you have any questions or concerns about your new product, please contact our helpful Customer Support Team. Contact our team by email： Support@CASABREWS.com Scan the QR code, register your product, and get a 6-month Extended Warranty ! * Please have your invoice and order ID ready before contacting Customer Support. support@casabrews.com | 15... - Page 20 CASABREWS BRANDS INC. ���� S Valley Vista Dr. , Suite ��� Diamond Bar, California ����� United States of America support@casabrews.com www.casabrews.com Rev �.�...
Need help?
Do you have a question about the CM5418BC-UL and is the answer not in the manual?
Questions and answers
My coffee is not hot… What **** I doing wrong?
Your CASABREWS CM5418BC-UL coffee maker may not be brewing hot coffee for the following reasons:
1. Machine is not pre-warmed: Let hot water run through the appliance with the inserted portafilter (with filter but without coffee grounds) before extracting the first coffee to warm up the brew system.
2. Cups are not pre-warmed: Pre-warm the cups with warm water before use.
This answer is automatically generated
