Summary of Contents for CASABREWS 5700 Gense
- Page 1 CASABREWS BRANDS INC. 1360 S Valley Vista Dr. , Suite 108 Diamond Bar, California 91765 United States of America support@casabrews.com www.casabrews.com Rev 2.0...
- Page 2 INSTRUCTION MANUAL Espresso Co ee Machine Model: 5700 Gense Scan & Save! Scan the QR code, register your product, and get a 6-month Extended Warranty ! support@casabrews.com HOUSEHOLD USE ONLY Please read all instructions carefully before using the product...
-
Page 4: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS ..................... 1-3 KNOW YOUR COFFEE MACHINE ....................4 CONTROL PANEL ......................... 5 SPECIFICATIONS ......................... 6 BEFORE FIRST USE ........................7-8 HOW TO USE THE GRINDER ....................9-11 SETTING THE GRIND SIZE....................... 9 SELECTING THE FILTER SIZE....................10 GRINDING THE COFFEE BEANS.................. -
Page 5: Important Safeguards
Do not place the co ee maker on a hot surface or beside a fire in order to avoid being damaged. To disconnect, remove the plug from the wall outlet. Always hold the plug, but never pull the cord. support@casabrews.com | 1... - Page 6 Children should not play with the appliance. This appliance is intended to be used in households. Do not use outdoors. Avoid contacting moving parts. 2 | support@casabrews.com...
- Page 7 If you want to add more water to the water tank, press the power button to turn the appliance o . Do not touch the top cover of the machine after the machine has been working for a long time so as to prevent burns. support@casabrews.com | 3...
-

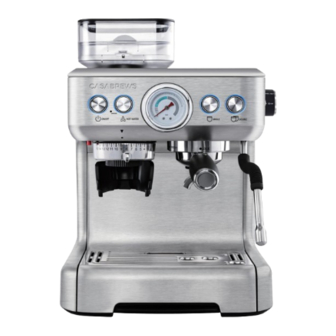

Page 8: Know Your Coffee Machine
14. Water Tank 23. Distributor 6. Grind Bracket 15. Steam Knob 24. Tamping Mat 7. Main Body 16. Brew Head 25. Decorating Pen 8. Drip Plate 17. Steam Wand 26. Milk Jug 9. Drip Tray 18. Steam Tip 4 | support@casabrews.com... -
Page 9: Control Panel
B. Hot Water Button: Press to start/stop making hot water. C. Pressure Gauge: Monitors espresso extraction pressure. D. Single Espresso Button: Press to start/stop making a single espresso. E. Double Espresso Button: Press to start/stop making a double espresso or double espressos. support@casabrews.com | 5... -
Page 10: Specifications
Length of power cord: Dear customer, Thank you for your purchase of the CASABREWS Espresso Co ee Machine. To ensure you get the best use of this machine, please take the time to read this manual and learn how to use this espresso machine with integrated grinder, even if you are an experienced home barista –... -
Page 11: Before First Use
To get the best flavor and extraction, we recommend changing the co ee beans in the container at least once a week. ATTACHING THE FILTER HOLDER BRACKET Attach the portafilter bracket to the machine by lifting it slightly, then pushing it downwards. support@casabrews.com | 7... - Page 12 Pour out the hot water and place the empty cup under the brew head. Press the single button once. Let the machine run a single shot cycle. After the brewing cycle has finished, pour the water out. Now your machine is ready to use. 8 | support@casabrews.com...
-
Page 13: How To Use The Grinder
Only grind roasted co ee beans in this machine. Do not process any other foods, such as nuts, WARNING spices or liquids, to avoid damaging the grinder. Please do not operate the grinder when it is empty, i.e. without co ee beans. support@casabrews.com | 9... -
Page 14: Selecting The Filter Size
Push and release the portafilter to activate automatic grinding. The default auto-grinding time is 14 seconds. The grinder will grind for 14 seconds then stop automatically. If you need to stop the grinding process, push and release the portafilter. The machine will stop grinding. 10 | support@casabrews.com... -
Page 15: Manual Grinding
To stop grinding, release the portafilter. The grinding time will vary depending on the co ee beans you use. You may need to experiment NOTE: with how long the grinder needs to run to achieve the correct amount. support@casabrews.com | 11... -
Page 16: How To Tamp The Ground Coffee
The surface of the ground co ee should not be beyond the MAX mark after tamping, otherwise NOTE: the portafilter might not be able to be locked into the brew head. 12 | support@casabrews.com... -
Page 17: How To Make Espresso
The gauge needle indicates the extraction pressure. When it is positioned anywhere within the 5-12 zone during extraction, it means the espresso has been extracted at the ideal pressure. Features: * Flows slowly like warm honey. * Crema is golden brown with a fine mousse texture. * Espresso is dark brown. support@casabrews.com | 13... - Page 18 * Select a coarser grind setting and retry. * Crema is dark and spotty. * Decrease the amount of ground co ee and retry. * Espresso is very dark brown. * Decrease the tamping pressure and retry. * Tastes bitter and burnt. 14 | support@casabrews.com...
-
Page 19: How To Program The Volume Of Single/Double Espresso
To reset the machine to the default volume of double espresso, press and hold the double e espresso button for 5 seconds. The double espresso button will flash twice indicating the default volume of double espresso has been reset. support@casabrews.com | 15... -
Page 20: How To Make Hot Water
Position the steam wand over the drip tray and turn the STEAM knob to the PRE-HEAT position. The machine starts to preheat, and the indicator will flash. Once the preheating has finished, the indicator will light up continuously. Turn the knob to MAX position. 16 | support@casabrews.com... - Page 21 * Wipe the steam wand with a clean, damp cloth. Then return to a lowered position over the drip tray. NOTE: Ensure the STEAM knob is in the OFF position before removing the steam wand from the milk jug. After frothing milk, it is recommended to purge the residual milk from the steam wand. support@casabrews.com | 17...
-
Page 22: Cleaning And Maintenance
Press and hold the HOT WATER button for 5 seconds to start the rinse cycle. Once the rinse cycle is complete, the machine will beep and return to READY mode. Remove and rinse the water tank. Dry thoroughly before reattaching it to the machine. 18 | support@casabrews.com... -
Page 23: Cleaning The Grinder
If the holes remain blocked, soak filter and portafilter in hot water for approx. 20 minutes. Rinse thoroughly. All parts should be cleaned by hand using warm water and a gentle dishwashing liquid. NOTE: Do not clean any of the parts or accessories in the dishwasher. support@casabrews.com | 19... -
Page 24: Cleaning The Steam Wand
PLEASE EMPTY TRAY. Remove the drip tray from the machine and separate the parts. Wash all parts in warm soapy water with a soft cloth. Rinse and dry thoroughly before reassembling and reattaching to the machine. 20 | support@casabrews.com... -
Page 25: Error Mode
flash in red when brewing, this means the machine is in OVERPRESSURE protection mode. Press either the single or double espresso button. The machine will start to release the pressure automatically. All the buttons will light up in white continuously when the pressure is released. INSERT LOCK support@casabrews.com | 21... -
Page 26: Troubleshooting
Use a Medium Espresso Roast Co ee Bean. does not contain enough oil. Machine needs to be descaled. Run descale cycle. The pressure gauge does not work (the needle does The machine is faulty. Contact our customer support team. not move at all). 22 | support@casabrews.com... - Page 27 Empty the drip tray. Water tank is not properly attached. Push water tank down completely to lock into Water leaks from the place. bottom. Water tank or the silicon tube inside Contact our customer support team. the machine is broken. support@casabrews.com | 23...
- Page 28 Contact our customer support team. flashing in white when the machine is turned on. The single and double The machine is faulty. Contact our customer support team. espresso buttons flash red when the machine is turned on. 24 | support@casabrews.com...
- Page 29 60 ml/2.03 oz, and a double espresso ranges double espresso. between 60 ml/2.03 oz and 100 ml/3.38 oz. Machine does not heat up. The machine is faulty. Contact our customer support team. NOTE: If your problem is not listed here, please contact Customer Support. support@casabrews.com | 25...
-
Page 30: Warranty Information
If you have any questions or concerns about your new product, please contact our helpful Customer Support Team. Contact our team by email： Support@CASABREWS.com Or scan the QR code for an additional barista book and more support. * Please have your invoice and order ID ready before contacting Customer Support. 26 | support@casabrews.com...
