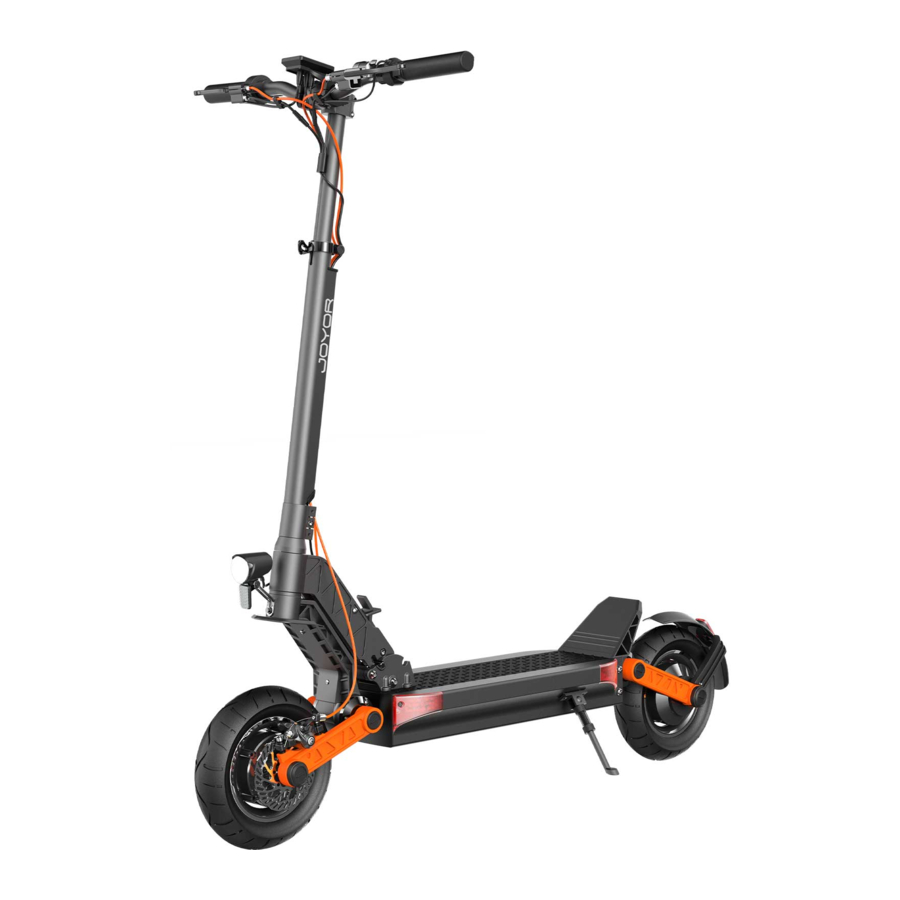

JOYOR S5, S10-S - Electric Scooter Manual

THE MAIN PARTS & TECHNICAL SPECIFICATIONS

The Main Parts S5/S10-S

1. LCD display
2. Lever lock for handlebar height adjustment
3. Handlebar sleeve
4. Brake wire
5. Brake handle
6. Front suspension
7. Front light
8. Front mudguard
9. Front air tire
10. Front disc brake (hydraulic on S10-S)
11. Front motor (only S10-S)
12. Folding system
13. Rear light
14. Side lights
15. Parking stand
16. Rear motor
17. Rear air tire
18. Rear mudguard
19. Rear disk brake (hydraulic on S10-S)
20. Rear suspension

Technical Specifications S5/ S10-S

Vibrations:

• The vibration value exposed to the hand-arm system is 2.5 m/s2.
• Measurement uncertainty 0.5 m/s2. The vibration can be altered due to the rough terrain where the scooter is circulated. However, this alteration will not depend on the scooter.

Airborne noise:

• The A-weighted emission sound pressure level is 35 db (A)

Command systems:

The electric scooter does not have the possibility of remote control. It is not necessary to use any additional means to prevent unauthorized use for safety measures because this machine is not considered a dangerous industrial machine but a vehicle for individual transport for public use.
From the driver's position, the driver can operate all the drive components necessary for the operation of the machine: brake, display with accelerator, handlebar, light switch, bell.
The displacement of the electric scooter with driver on board can only be implemented if the driver is at his command post, is prepared and only if the speed of the electric scooter is greater than 0 km/h, being started mechanically by pushing the scooter forward and applying the electric throttle only afterwards.

OPERATIONAL INSTRUCTIONS

First assembling

Folding/Unfolding

Display

Start Screen

(Factory default password is 0000)

Home Screen

1. Walk function
2. Power-assisted gear
3. Current speed
4. Bluetooth
5. Headlight
6. Fault directive Please refer to the Error Code definition table
7. Single-drive or dual-drive switching
8. Cruise function
9. Power display
10. Speed unit
11. Battery level
12. Range/ Speed/ Error code display

Home screen description

Walk function: In the home screen, long press the "-" button for 3secs. to turn on the "walk" function, it will auto cancel after loosening the "-" button.
Power-assisted gear: In the home screen, short press the "+/-" button to adjust the gears.
Headlight: In the home screen, short press the power button to turn on/off the headlight.
Single-drive or dual-drive: In the home screen, short press the M button to switch.

Button Function Instructions

Button	Operation	Function
	Press and hold for 3 seconds	In the home screen, enter the setting menu. In the setting screen, return to the home screen.
	Short press	In the home screen, turn on/ off the "front wheel drive" function. In the setting screen, switch the options.
	Press and hold for 3 seconds	Not applicable.
	Short press	In the home screen, change gears up. In the password screen, increase the number of the password.
	Press and hold for 3 seconds	In the home screen, turn on the "walk" function (The scooter should in the gear mode, release this button to cancel).
	Short press	In the home screen, change gears down. In the password screen, decrease the number of the password.
	Press and hold for 3 seconds	In any screen, turns off the display.
	Short press	Turn on when it is off. In the home screen, turn on/ off the headlight. In the password screen, switch the number of password digits.

Parameter Settings and Functions

The parameter settings and functions of this display are shown below:

P0: Speed unit (kilometer/mile) switch setting
Press and hold the M button for 3 seconds. On the settings screen, the first page is P0 screen, you can use the "+/-" buttons to switch the speed unit.

P1: Password enter screen (for system setting). Press the M button into P1 from P0.
You need to enter the password 1159 (which is immutable) to enter the system settings. You can use the "+/-" buttons to select a number, press the button to switch digits. The password is four digits, you can press the "+/-" buttons to select 1 for the first digit, then press the button into the second digit, by the same way, until the fourth digit. After entering the password 1159, press the M button into the system settings.

P2: Password function on/off setting (for power on)
In the P2 screen, you can press the "+/-" button to toggle between ON and OFF. ON: turn on this function; OFF: turn off this function.

P3: Password setting (for power on)
After setting the power-on password, press the M button into P3. Then you can use the "+/-" buttons to select numbers, press the ON/OFF button to switch digits. The password is four digits, you can press the "+/-" buttons to select the number you like for the first digit, then press the ON/OFF button into the second digit, by the same way, until the fourth digit. After entering the password you like, long press the M button to return to the home screen, your password is set. The new password will be used when you start up next time.

Attention If the user changes the power-on password, please be careful to remember it; if you forget your password, Press and hold the M button and the "-" button for 2 seconds to reset the factory password.

P4: Wheel diameter setting
After setting the password (in the home screen), press and hold the M button into the settings screen, then short press the M button into P4, press the "+/-" buttons to change the wheel diameter.

P5: Battery voltage setting
Press the M button into P5 from P4, then press the "+/-" buttons to change the battery voltage.

P6: Blocked

P7: Blocked

P8: Zero start or non-zero start setting
Press the M button into P8 from P7, then press the "+/-" buttons to switch. ON is the Zero start, OFF is the non-zero start.

P9: Cruise function on/off setting
Press the M button into P9 from P8, you can press the "+/-" button to toggle between ON and OFF. After turning on the cruise function, press the accelerator for a certain period of time to lock the cruise speed. Meanwhile, if you are not holding the accelerator, the speed will not change. However, if you switch gears, the function speed will be changed. When the setting is done, press and hold the M button again to return to the home screen.

Error Codes

Riding Operations Instructions

Before Riding

• Choose a suitable venue for riding.
• Unfold the electric scooter according to the instructions.
• Adjust the height of the handlebar tube according to your height.

Riding

• Press the power button to turn on the power. The speed is set by default to gear level 1.
• For safety purposes, Joyor electric scooter has a safe start design which means the motor can start only when the speed of the vehicle is above 0. It prevents motor start when the acceleration handle is pressed by mistake. To start the riding operations, put one foot on the standing board and the other foot on the ground and kick scoot it like a classic kick scooter. When the scooter is in motion and its speed is above 0, smoothly use the acceleration handle to start the motor. Once the motor starts, put the other foot on the standing board and continue riding.
• When riding, adjust the gear level from 1 to 3, use lights and horn according to the road conditions and according to the situation.
• Be aware of the cruise control function. Cruise control function is activated when the acceleration handle is pressed with the same pressure for 3 seconds.
• Be aware of the possibility of unpredictable sudden obstacles on your way and control the speed level.

Braking

• Use the rear brakes handle for braking under normal circumstances. Use front brake handle for braking in emergency situations.
• The greater pressure you put, the greater braking force will be applied. Be aware that hard braking may result in an accident due to slipping of the wheels, loss of balance and fall of the vehicle. Hard braking might also cause damage to the tire.

MAINTENANCE

Cleaning and maintenance to be carried out by the user cannot be carried out by children under 16 years of age.

Tires

• Joyor electric scooter uses rubber elastic tires. When the tires are worn out or have a puncture, they need to be replaced timely.
• Contact the official distributor to replace the original tires.
• Inspect your scooter and its tires every month, check if the screws are tightened enough. If they are loose, tighten them.

Battery

• Joyor electric scooter is equipped with a lithium polymer battery. The average lifespan of the battery is 1000 cycles. Under normal use and maintenance, the battery lifespan can generally reach more than 1000 cycles.
• Before using the scooter for the first time, please charge the battery to the full charge.
• Avoid totally depleting your scooter's battery before charging. Always make sure it is minimum 10% charged. For satisfactory vehicle performance, the battery has to be charged minimum 50%.
• Do not leave your electric scooter with a significantly discharged battery for a few hours. Charge it promptly.
• When storing the electric scooter for a long period, make sure the battery is at least 40-50% charged. It is advisable to charge your scooter minimum once per 30 days.
• Always use only the original Joyor charger that corresponds to the model of the scooter.
• Do not leave your electric scooter in the cold temperature below 0 or under the direct sun. Keep the battery dry. Negative environmental conditions can damage the battery.
• Polymer lithium batteries have to be treated with extreme caution. Unappropriated charging, damage or overheating can result in a fire. Do not leave your electric scooter to charge without supervision. Do not leave the electric scooter to charge overnight. Always supervise the electric scooter while it is charging and avoid battery over-charge. Do not use, charge or leave a damaged battery unattended and follow the disposal protocols immediately.

Charger

Joyor S series chargers:
54.6V (S5), 67.2V (S10-S)

• 54.6V: Input 100-240V ~, 2.8A (MAX) 50 / 60Hz; Output 54.6V = 2.0A; Manufacturer - DONGGUAN ANGDI TECHNOLOGY CO., LTD.
• 54.6V: Input 100-240V ~, 3A (MAX) 50 / 60Hz; Output 54.6V = 2.0A; Manufacturer – MFRS POWSUN ELECTRONIC CO., LTD.
• 67.2V: Input 100-240V ~, 2.8A (MAX) 50 / 60Hz; Output 67.2V = 2.0A; Manufacturer - DONGGUAN ANGDI TECHNOLOGY CO., LTD.

The dedicated charger provided by Joyor has a charging protection timing function.

Charging instructions

• Open the charging port cover on the electric scooter and insert the charger output connector into the charging port.
• Insert the charger input power plug into the power socket (AC110V-220V).
• Charger light is red to indicate that charging is in progress; when the charger light turns green, it indicates that the battery is fully charged.
• When charging the battery, place it in a dry, ventilated environment.

General Recommendations

• Please check and adjust screws monthly. Under conditions of professional or intensive use, it is recommended to change the screws every 6 months.
• Please frequently check and adjust the breaks.

IMPORTANT SAFETY INSTRUCTIONS

• Joyor electric scooter is a personal transportation vehicle and is designed for one person only. Please do not transport a passenger on this electric scooter.
• Joyor electric scooter is designed for adults only. People under the age of 16 cannot use this vehicle. Children should not use the vehicle or play with it.
• Please wear a safety helmet when riding the electric scooter.
• The vehicle cannot be used in unauthorized spaces and the user has to comply with the current local norms and regulations of the circulation of the personal mobility vehicles
• Do not ride the electric scooter on the unsafe surface.
• Please practice on an open traffic-free space on gear level 1 before riding on the bicycle lane.
• Please during the riding operations always keep both hands on the handlebar and both feet on the standing board. Please do not jump on the standing board.
• Do not turn off the motor power while riding the scooter.
• Do not try to ride over a gap of more than 3 cm. This may cause injury to the rider or damage the vehicle.
• When riding on the rough or bumpy road, please slow down the electric scooter or stop riding the vehicle.
• A user must adjust the height of the handlebar tube according to their height to ensure a safe, stable and comfortable ride.
• Do not ride Joyor electric scooter on slippery surfaces such as oil or ice.
• Do not use Joyor electric scooter in the weather conditions with the temperature below -5.
• Do not leave the product immersed in a water depth of more than 3 cm to avoid damage to the electrical parts of the vehicle. Do not store the vehicle in a place with high humidity levels.
• Avoid riding the Joyor electric scooter in adverse weather conditions like rain, snow or wind storm to prevent an accident. If riding in these conditions, never exceed the speed of 10 km/h.
• If the electric scooter is not used for a period of longer than 30 days, regularly charge it at least every 30 days. The charging port must be kept clean and dry at all times.
• When unfolding the vehicle, please press the folding system handle till it clicks and make sure that it is in place.
• When charging, always ensure that somebody is supervising the charging site. If the charger temperature increases too much, stop the charging process.
• Always only use the original charger that corresponds to your scooter's model.
• Please keep all plastic bags of the packaging of the product away from children to avoid suffocation.

Instructions regarding installation and assembly, aimed at reducing noise and vibrations:
Before using the equipment, tighten all the fastening screws of the screen with the accelerator and the brake lever, making sure that these components are fixed and do not move, to avoid vibrations.
To prevent the handlebar vibrations and shaking adjust and, if necessary, loosen the screws inside the handlebar sleeves when folded.
Before using the equipment, make sure that there are no loose cables on the rear wheel and motor part, to avoid high noise from the motor.
Every 2 months it is recommended to check and tighten the nuts on the rear wheel of the motor, to avoid vibrations and high noise from the motor.

Joyor E-Moving S.L.
Carrer dels Remences 136, 08304,
Mataró, Barcelona, Spain
info@joyorscooter.com
www.joyorscooter.com
