Bticino HC4690 Technical Sheet

Multimedia Touch Screen
Description
Multimedia Touch Screen is a device that enables controlling all the functions of the
MY HOME system by means of simple and intuitive icons displayed on the 10" 16:9 LCD
Touch Screen.
In addition to the management of the automation functions, lights, temperature
control, sound system, burglar alarm, and scenarios, by using the device it is also
possible to answer to video door entry system calls, and display the images transmitted
by the entrance panel, or the connected cameras. Thanks to the USB device and SD card
inputs, Multimedia Touch Screen can manage multimedia files, allowing the users to
listen to their favourite music or to view films and images.
When integrated with a domestic LAN network with internet connection, the device
enables (following the activation of specific icons) receiving RSS services such as "news"
and weather information, displaying images transmitted through webcams, and
listening to internet radio channels.
Related items
Surround plate: HA4690XC, HA4690VBB, HA4690LTK, HA4690VNB, HA4690VSW
Power supply: 346020
Technical data
Power supply from SCS BUS: 18 – 27 Vdc
Local power supply (1 – 2): 18 – 27 Vdc
Max. local absorption (1 – 2): 600 mA
Absorption from SCS BUS: 50 mA
Operating temperature: 5 – 45 °C

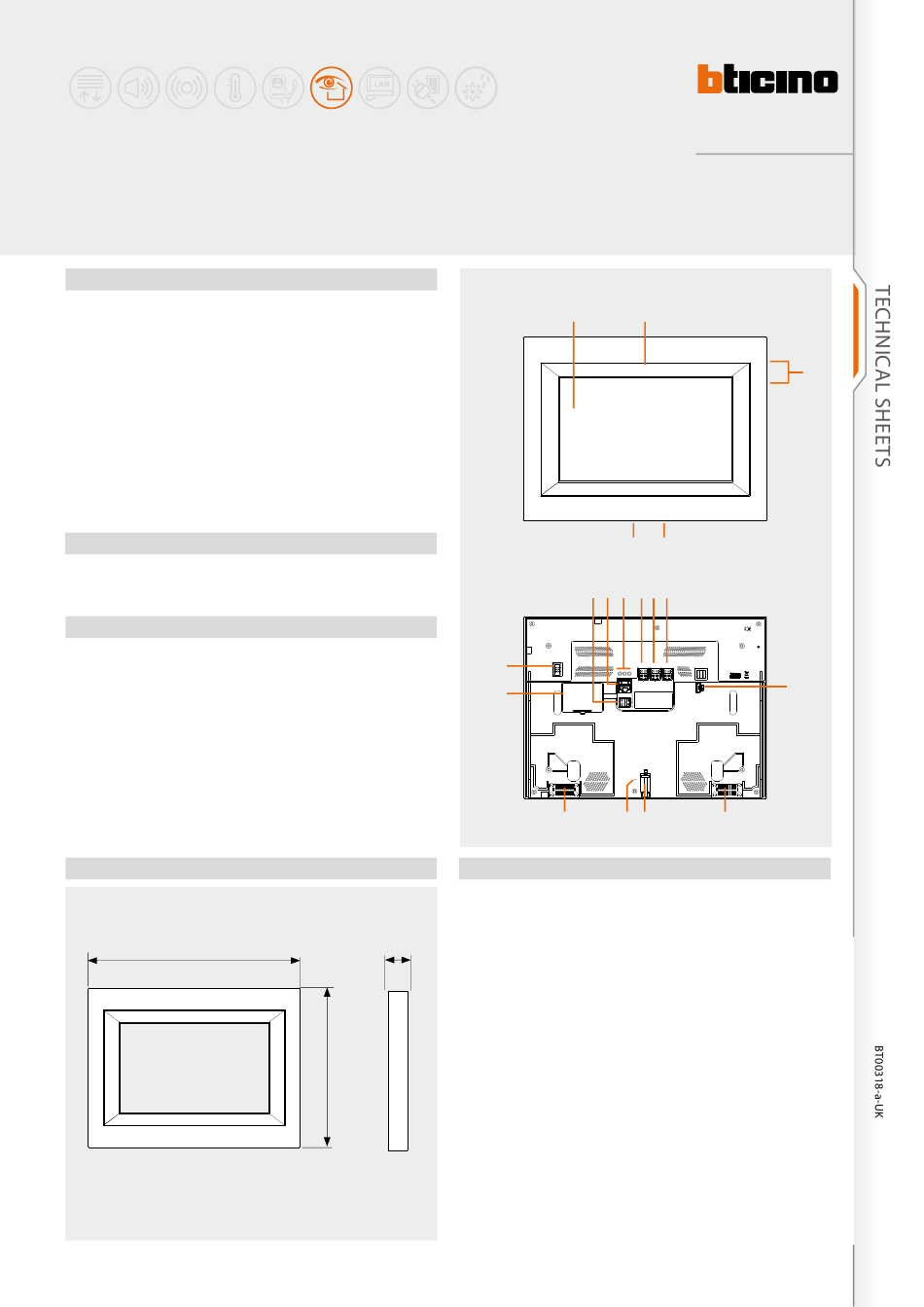

Dimensional data
305 mm
Front view
Rear view
17
16
Legend
10" Touch Screen colour LED display
1.
Microphone
2.
USB connection
3.
17 mm
Mini USB PC connection
4.
SD card connector
5.
Sound system source output connector
6.
RJ45 connector for Ethernet connection
7.
LAN connection signalling LED
8.
228 mm
9. PSTN telephone line connector (future application)
10. 2 wire video BUS/SCS connector
11. 1-2 power supply connector
12. End of line ON/OFF micro switch
Loudspeaker
13.
Bracket fixing screw
14.
Factory configuration reset pushbutton
15.
NiMh 7.2 V battery compartment; 160 mAh
16.
RS232 PC connector
17.
1 2
5 4
6 7 8 9 10 11
PSTN BUS 2 1
ON
OFF
ETH
13 15 14 13
HC/HS 4690
3
12
1
