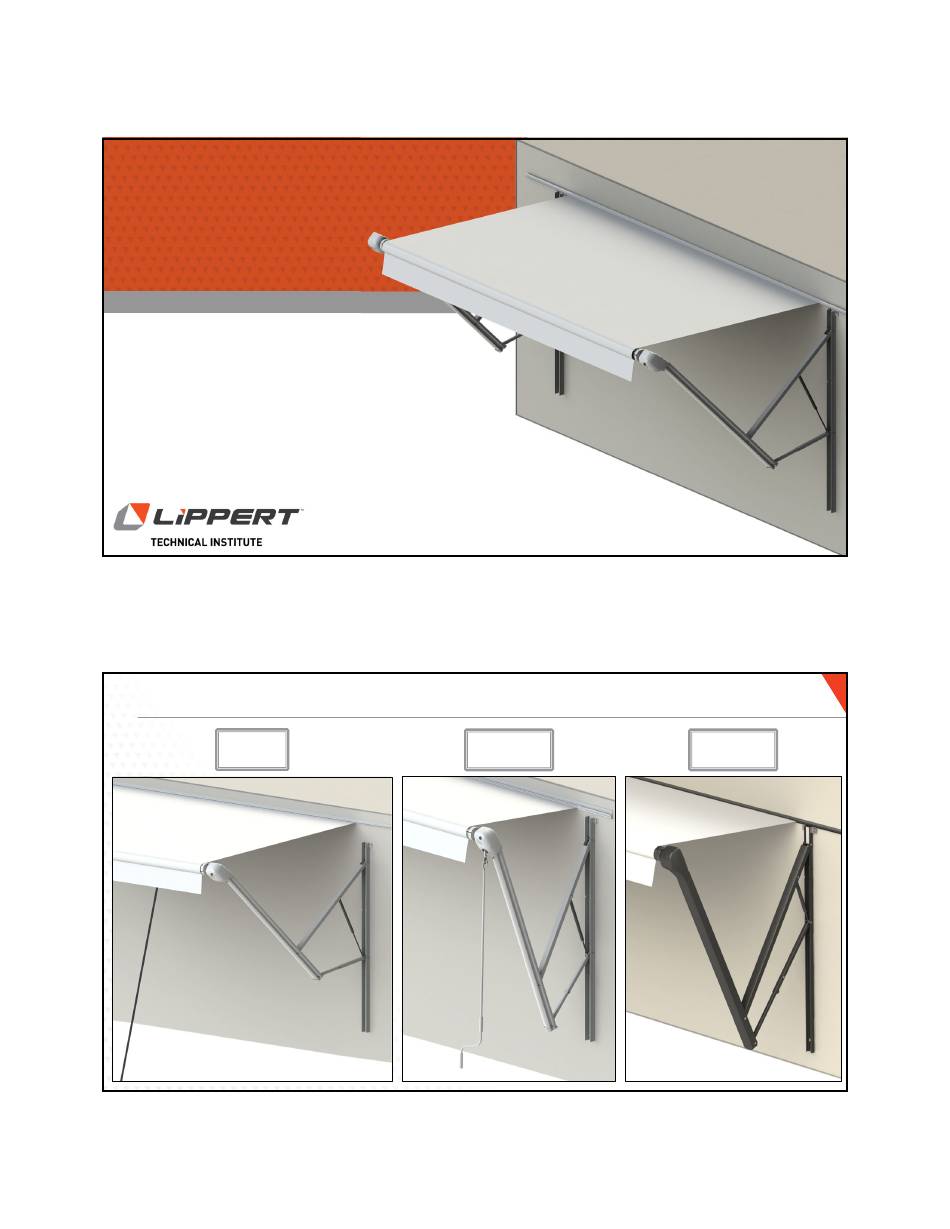

- Page 1 12/15/2022 AWNINGS AWNING SERIES IDENTIFICATION Manual 1500 Series 2000 Series Pull Strap Hybrid Edge...
-
Page 2: Component Identification
12/15/2022 AWNING SERIES IDENTIFICATION 3000 4000 3500 5000 12V Power 18V Power Smart Arm Elite COMPONENT IDENTIFICATION Rail Roll Tube Fabric Polychord End Cap Valance Drive Head... - Page 3 12/15/2022 COMPONENT IDENTIFICATION Mount Arm Inner Arm Support Arm Assembly Strut Pitch Arm Outer Arm PITCH ARM OPERATION Pitch can be set by adjusting the articulating arm to tip one side of the awning to allow water runoff. • Pull Arm Down •...
- Page 4 12/15/2022 AWNING LABELS Awning Label Roll Tube Variant Code Hardware Label AWNING MEASUREMENTS Awning Rail Roll Tube Support Arm Size of awning = center of arm to center of arm. Fabric will be ordered to that size but will come in 10” shorter. Example: 10’...
- Page 5 12/15/2022 LEDS OPTIONS Bezel LED Strip Installed LED Strip Installed Serenity Light on Fabric on Rail Awning Fabric Polycord Manual Spring MANUAL PULL STRAP AWNING 3 Point Tension Head Cam Lock...
- Page 6 12/15/2022 MANUAL PULL STRAP AWNING DRIVE HEAD INSTALLATIO N TO RO LL TUBE Drive Head Knob/Lock Cord Cord No Cord Line Location 3 Way Pivot Arm Roll Tube Cord Rail No Cord Screw Drive Head Knob/Lock Line Location MANUAL PULL STRAP AWNING Awning Length # of ADDING TENSIO N...
- Page 7 12/15/2022 1500 SERIES (HYBRID) AWNING M ANUAL Drive Head Eye Bolt Crank 2000 SERIES (EDGE) AWNING Support Arm Drive Head Idler Head Assembly 1 2V POWER Pitch Arm...
- Page 8 12/15/2022 2000 SERIES (EDGE) AWNING Power Wires 1 2V POWER Gear Pack Switch Kit Switch Harness Motor Switch Switch Plate 3000 SERIES (POWER) AWNING 1 2V POWER Idler Head Drive Head Original Current...
- Page 9 12/15/2022 3000 SERIES (POWER) AWNING Power Wires 1 2V P OWER Motor Switch Kit Switch Harness Switch Switch Plate 3500 SERIES (SMART ARM) AWNING 1 2V POWER Main Harness Touch Pad Extend Retract Light Wind IR Sensor Lock...
- Page 10 12/15/2022 4000 SERIES (18V) AWNING 1 8V POWER Idler Head Drive Head Original Current 4000 SERIES (18V) AWNING Drive Head 1 8V P OWER Battery Battery Pack Pack Extend Retract Charger...
-
Page 11: Awning Installation
12/15/2022 5000 SERIES (ELITE) AWNING 1 2V POWER Idler Head Drive Head AWNING INSTALLATION 1. On the awning rail, mark the position of the centerlines of the support arm assemblies. Ensure that the support arm assemblies will not interfere with any lights, vents or other obstructions. 2. - Page 12 12/15/2022 AWNING INSTALLATION Top of Mount Arm 3. Lift the support arm assembly up and secure by setting the awning assembly to the desired height and attaching it to the side of the unit with two (2) #14 x 1 1/4” screws at the top and two (2) #14 x 1 1/4”...
- Page 13 12/15/2022 AWNING INSTALLATION 7. Insert the drive head assembly shaft into end cap. Align the holes and secure with waxed screw and repeat for idler head. Keep the head of 8. To protect the fabric from damage during installation, file any the wax screw 1/8”...
- Page 14 12/15/2022 AWNING RAIL LED INSTALLATION 1. Seal the back of the LED light rail. 2. Mount the LED light rail directly below the Awning Rail awning rail and secure to the side of the unit. 3. Remove the wire covers in the drive side mount arm.
-
Page 15: Manual Override
12/15/2022 MANUAL OVERRIDE 1. Remove the rubber grommet from the drive head assembly, exposing the manual override nut on the motor. 2. Using a 7/16” socket and cordless or electric drill or screw gun, spin the manual override nut counterclockwise to retract the awning. 3. - Page 16 12/15/2022 AWNING WIRING TROUBLESHOOTING All electrical measurements need to be done under retract Check amps at motor connection Check voltage at Harness from Lippert harness motor to OEM connection with connection OEM wiring Additional harness if OEM connection is at the bottom of...
- Page 17 12/15/2022 If the awning is retracted while wet, extend the awning and let MAINTENANCE it dry as soon as conditions allow before retracting. This will help prevent the formation of mildew and add greatly to the life of the awning. NOTE: Fibernew fabric repair kit –...
-
Page 18: Technical Support
12/15/2022 Question and Answer If you have questions, please feel free to ask us now. Otherwise, we are available and happy to discuss anything presented with you. TECHNICAL SUPPORT www.Lippert.com 432–LIPPERT customerservice@lci1.com...
