1000 Series Manual
Pull Strap Awning
OWNERS MANUAL
Scan for product support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solera 1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lippert Solera 1000 Series

Summary of Contents for Lippert Solera 1000 Series

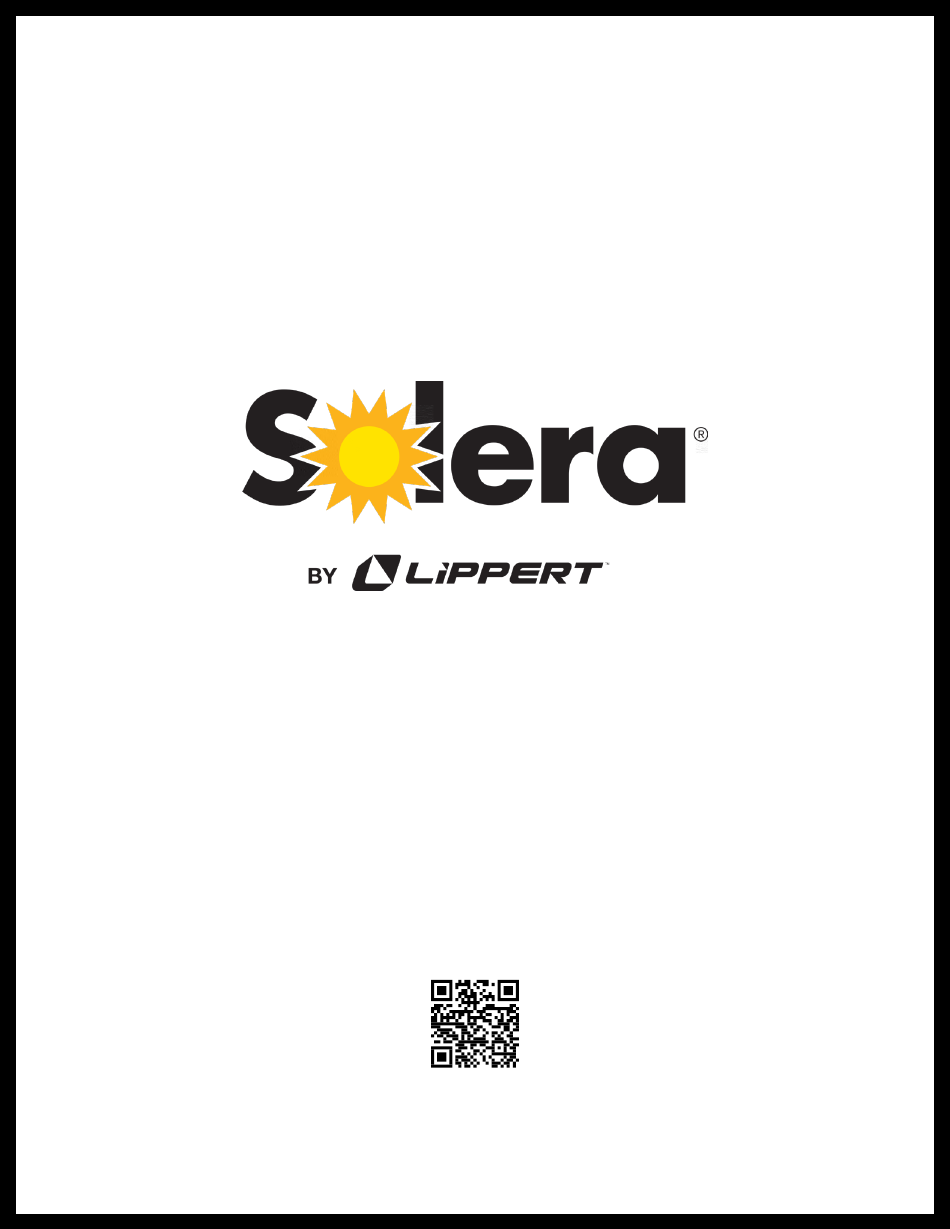

  • Page 1 1000 Series Manual Pull Strap Awning OWNERS MANUAL Scan for product support...

  • Page 2: Table Of Contents

    The friction joint also provides added stability. Additional information about this product can be obtained from lippert.com/support or by downloading the free LippertNOW app. The app is available on Apple App Store® for iPhone® and iPad® and also on Google Play™...

  • Page 3: Safety

    Solera Manual Pull Strap Awning in any other manner than described may result in personal injury, damage to the recreational vehicle or the awning assembly as well as voiding the Lippert Components Limited Warranty. Page 3 Rev: 11.18.24...

  • Page 4: Operation

    operation Extending the Awning IMPACt oR CRUSH HAZARD - Pitch MUSt be set to lower one side of the awning after the awning is extended. Failure to set pitch could lead to water, snow or debris accumulating on the awning fabric, which could cause the awning to move unpredictably, become unstable, and bend or collapse causing death or personal injury or property damage.

  • Page 5: Retracting The Awning

    Fig. 4 Fig. 5 Fig. 6 - Complete extension Valance Seam Fabric Roll tube Valance exposed Roll Awning tube Section Head tying the roll tube down once extended will not allow the free floating support arms to work as designed and may cause damage to the awning or RV. Retracting the Awning the awning MUSt be retracted completely during incidents of high wind, heavy rain and/or during any extended time away from the unit.

  • Page 6: Set Pitch Using Pitch Arms With Gas Strut

    Scan this QR Code to watch the video on How to Correctly Pitch a Lippert Awning. Note: Before manually adjusting pitch, make sure there is no water or snow pooling or debris present on top of the awning fabric.

  • Page 7: Maintenance

    Maintenance Fabric Care If the awning is rolled up while wet, roll it out and let it dry as soon as conditions allow before rolling it up again. This will help prevent the formation of mildew and add greatly to the life of the awning. Note: Mildew does not form on the fabric itself, but on the accumulated dust, dirt and grime.
  • Page 8 What’s Happening? Why? What Should Be Done? If optional travel locks are installed, make sure that they have been unlocked. Awning won’t open. Locked Make sure cam lock is flipped to the extend position. Check for bad gas strut which will not allow awning to open all the way.

  • Page 9: Notes

    Notes Page 9 Rev: 11.18.24 CCD-0001400...
  • Page 10 Any unauthorized use shall void any applicable warranty.  The information contained in this manual is subject to change without notice and at the sole discretion of Lippert.  Revised editions are available for free download from www.lippert.com.
