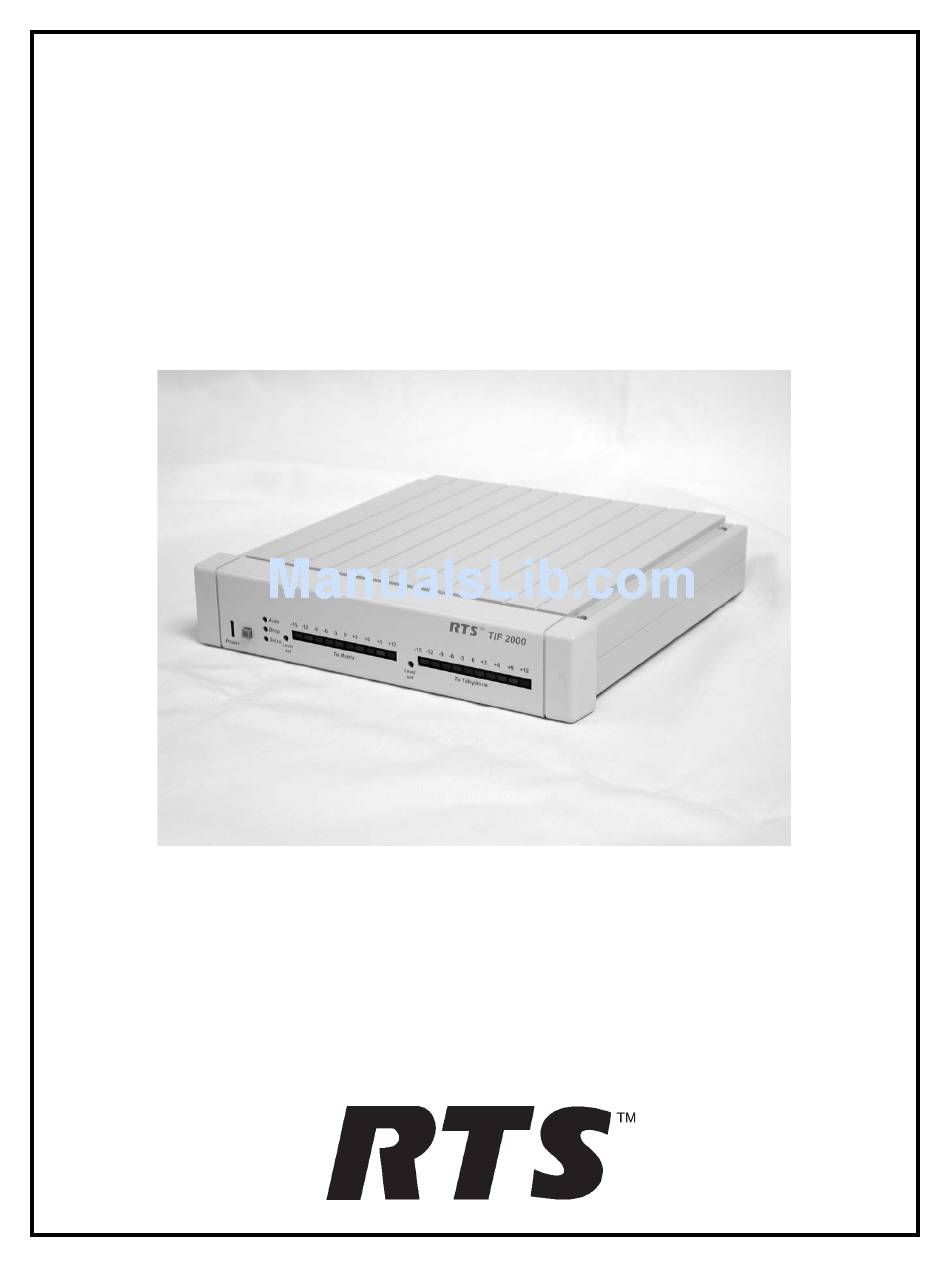

Page 1: User Manual
USER MANUAL Model TIF 2000 Digital Hybrid Telephone Line Interface 9350-7674-000 Rev A, 11/2001... - Page 2 The sole obligation of Telex during the warranty period is to provide, without charge, parts and labor necessary to remedy covered defects appearing in products returned prepaid to Telex. This...
-
Page 3: Table Of Contents
Configuring for Country’s Telephone System ... 9 OPERATION ... 9 Operation From A Keypanel ... 9 Programming a key to use the TIF 2000 ... 9 Dialing a call ... 10 Hanging up ... 10 Re-dialing the last number ... 10 Dialing a speed dial number ... -
Page 4: Introduction
DIP switch (S202). If auto answer is turned off, the line will ring until someone at a keypanel answers the call or until the Select button on the TIF 2000’s front panel is pressed. To turn on auto answer, place switch 1 in the down position. - Page 5 Table 1- Correspondence between address numbers and intercom port numbers for ADAM, ADAM CS, and Zeus systems...
-
Page 6: Full Duplex Method
When using full duplex mode, users may hear an increased amount of echo on the line. This may be more pronounced when the TIF 2000 is forced into full duplex mode all of the time (switch 8 up) rather than only when audio is present (switch 8 down). -
Page 7: Dtmf Or Pulse Dial Selection
One Touch Dial works as follows: If a number is stored in Auto Dial memory 1 on the TIF 2000, and the line is on hook, then the TIF 2000 will autodial the number stored in Auto Dial memory 1 when- ever any keypanel closes a point-to-point talk key to the TIF 2000. -
Page 8: Power Supply
Power Supply Insert the round connector from the brick type power supply into the power connector on the rear of the TIF 2000. Turn the locking ring on the connector to secure the connection. Plug the female end of the IEC type power cord into the power supply and then plug the other end into an appropri- ate power outlet. -
Page 9: Setting Audio Levels
Any keypanel with a keypad may use a TIF 2000. All that is necessary is to program a key to talk to the TIF 2000, as if it were a keypanel. The alpha numeric display or tally LED for that key then provides information about the phone line. -
Page 10: Dialing A Call
Note: The TIF 2000 only responds to commands which are sent via a point-to-point key assignment. If you wish to use the TIF 2000 primarily on a PL, you must add a point to point assignment as the L2 talk assignment on the talk key for any panels which are going to either answer the line, or dial out on the line. -
Page 11: Tif 2000 System Setup To Receive Calls
Talk keys 8 to 15 have a special purpose. If you are not using auto answer mode, but have set up the TIF 2000 to be manually answered, talk keys 8 to 15 will be programmed for the keypanels which are to receive the ring signal. -
Page 12: Dtmf Codes
It is up to the operator who programs the TIF 2000 to convey to the user what to expect. If the user is not familiar with the operation of the TIF 2000, it is best keep the operation as simple as possible, until they are familiar with its operation. -
Page 13: Specifications
2 nn # *K Program a listen key to a PL. 3 2 # *K Program a listen key to auto follow. 3 3 # *K Program a listen key to auto Mute 01 nn # *K Program a listen key to a special list. 02 nn # *K Program a listen key to an IFB. -
Page 14: Telephone Interface Requirements Form
TIF 2000. Additionally, some countries require governmental approval for connection of the TIF 2000 to the public telephone system. Telex handles these requirements on a case by case basis and may require a one- time engineering fee to adapt the TIF 2000 for a specific telephone system or to obtain governmental approval. Additionally, Telex may require the customer to initiate the government approval process of the TIF 2000 for their particular telephone system.
