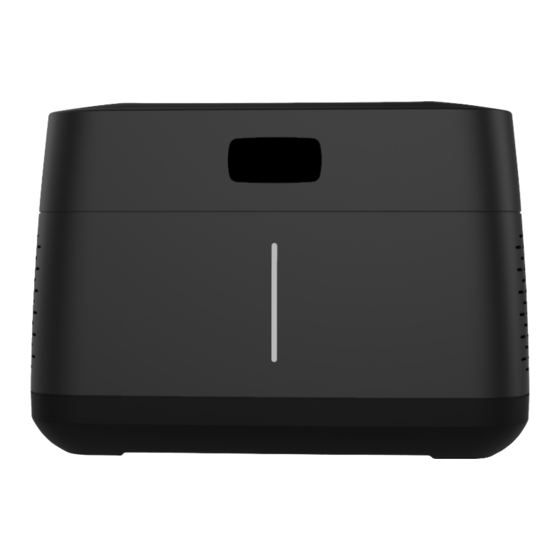

- Page 1 Franklin™ three9 ISP Real-Time PCR Thermocycler Last Updated: 04/07/2021...
-
Page 2: Table Of Contents
Transferring Data Wired (USB) Wireless (Bluetooth) Recovering & Reattaching Test Data Common Scenarios Common Questions Scenario A Scenario B Scenario C Scenario D Maintenance & Cleaning Safety Notice Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... - Page 3 General Safety Warnings Electrical Safety Warnings Troubleshooting Frequently Asked Questions (FAQ) Failure Modes Disclaimer Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual...
-
Page 4: Brief Overview
Brief Overview The Biomeme Franklin™ three9 ISP transforms your smartphone into a thermocycler with Integrated Sample Prep for real-time PCR. The time to result is approximately 70 minutes, depending on the specific test protocol. Our mobile thermocycler automatically extracts and purifies nucleic acid (DNA/RNA) from crude liquid samples and then detects and differentiates up to 27 PCR targets in 1... -
Page 5: Technical Specifications
(via smartphone app) Up to 1mL (see protocol for the specific test you Sample Capacity intend to run) Max Samples per Run Max PCR Targets per Run Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... - Page 6 Note: Transport your Franklin™ three9 ISP thermocycler in its carrying case. Moving your thermocycler while thermocycling could result in errors. We highly recommend not moving or opening the device while thermocycling to avoid losing your PCR run. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual...
-
Page 7: Thermocycler Button Layout
Thermocycler Button Layout There are a total of 4 buttons located on the top of your Franklin™ three9 ISP thermocycler: Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... -
Page 8: Led Status Indicators
Note: If the battery is in the red, the device will not start a run until it has been charged to 30%. 5 blinking indicates your test is complete and data is ready to be transferred to your smartphone Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... -
Page 9: Turning Your Thermocycler On And Off
If your battery is running low, simply plug the AC power adapter into an outlet and insert the power connector into the back of your thermocycler. The Charging Indicator LED on the back of the thermocycler will illuminate blue. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... - Page 10 If your device has not been charged in more than six months and you cannot get the thermocycler to turn back on, please contact support@biomeme.com. Franklin™ three9 ISP PCR Thermocycler User ©...
-
Page 11: Enabling & Disabling Bluetooth (Ble )
The LEDs on the front of the device will flash white as well. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... -
Page 12: Connecting Via Wire (Usb)
If done incorrectly, you risk damaging the thermocycler. Insert the short USB cable into the smartphone. Then connect the two cables. Tap OK in the pop-up in the smartphone app. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... -
Page 13: Loading Sample Into Isp Cartridge
A sharp tap on the work surface can be performed to force any remaining fluid off the funnel surface into the sample cup but do not squeeze or apply force to the ISP cartridge. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... - Page 14 Close the sample well rubber lid and be careful not to push deeply on the center of the cap because it could displace the sample funnel below. Once the sample is loaded ensure the cartridge is not tilted, inverted, or jostled. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual...
-
Page 15: Placing Cartridge Into Franklin™ Three9 Isp
For further instructional information, please contact support@biomeme.com. Note: When your test comes to an end and it's time to dispose of your test cartridge, please do so according to your local, regional or national-waste disposal guidelines. -
Page 16: Transferring Data
USB-A end of the cable into the computer. On the smartphone, swipe down from the top of the screen and tap "Use USB for Charging" then select file transfers. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... -
Page 17: Wireless (Bluetooth)
In the Biomeme mobile app, navigate through View Results and select a test. Once on the test result screen in the app, tap Send in the top right corner. -
Page 18: Recovering & Reattaching Test Data
Note: Instructions could vary depending on your computer and/or smartphone Operating System. If you require further assistance, please contact support@biomeme.com. Note: Cutting and pasting OR deleting the .xlsx files will permanently delete them off the smartphone. If you want them to remain, make sure to only copy and paste. -
Page 19: Common Questions
SCENARIO A My thermocycler is ON, my test is currently running or has recently completed, the thermocycler’s front LED lights are flashing blue, and my Biomeme smartphone app is still OPEN. 1. Power cycle the Bluetooth. Press the Bluetooth button on top of the thermocycler to turn OFF the Bluetooth Pairing. -
Page 20: Scenario B
SCENARIO B My thermocycler is ON, my test is currently running or has recently completed, but my Biomeme smartphone app has CLOSED. 1. Relaunch the Biomeme smartphone app by selecting the icon on your smartphone’s home screen. 2. Press the Bluetooth button on top of the thermocycler to turn it OFF the bluetooth. -
Page 21: Scenario C
SCENARIO C My thermocycler is OFF but my Biomeme smartphone app is OPEN. 1. Press the Power button on top of your Franklin™ three9 ISP thermocycler to turn it back on. If your thermocycler doesn’t turn back on, make sure it’s connected to a power source as your battery may have died. - Page 22 4. Press the Bluetooth button on top of your thermocycler. 5. Relaunch the Biomeme smartphone app by selecting the icon on your smartphone’s home screen. 6. From the Biomeme app’s home screen, tap Incomplete Runs.
-
Page 23: Maintenance & Cleaning
Maintenance & Cleaning The Biomeme Franklin™ three9 ISP thermocycler is maintenance-free and has no user-serviceable parts. In the case of thermocycler failure or damage, please contact support@biomeme.com. The outside of the Franklin™ three9 ISP thermocycler can be cleaned using Lysol or equivalent wipes. -
Page 24: Safety Notice
Do not use the instrument in extreme heat, humidity, dust, or vibration conditions Electrical Safety Notice. Electrical Safety Warnings Unplug AC power cord from the wall outlet in case of an emergency. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual... - Page 25 Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual...
- Page 26 It will prompt you to reconnect to the thermocycler if you are able to. Upon reconnecting, the test data will update on the smartphone a er a short delay (1-2 seconds). Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual...
- Page 27 If your test fails, the smartphone will notify you of the error returned from the thermocycler. Your last run will be saved in the Biomeme mobile app up to the point of failure, but if your run failed or stopped with less than 20 cycles, the data will not be processed so no Cq values will be calculated and the PCR amp plot data will not be baselined or smoothed.
- Page 28 What should I do if I receive an error message? Retry running your test, but if the error persists please contact support@biomeme.com. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual...
- Page 29 ● Turn OFF Bluetooth on your smartphone. Then, turn Bluetooth back ON and attempt to reconnect to the thermocycler. ● Close the Biomeme mobile app completely, then relaunch it and attempt to access Incomplete Runs from the app home screen to recover your test results.
- Page 30 The LEDs will remain on the progress bars until the flush is completed, then move to blinking red. Once the LEDs are blinking red, it is safe to open the lid. Franklin™ three9 ISP PCR Thermocycler User © Biomeme, Inc. 2020 Version 1.2 Manual...
- Page 31 For Research Use Only. Not for use in human or veterinary diagnostics. The performance characteristics of this product have not been established. Biomeme products may not be transferred to third parties, resold, modified for resale or used to manufacture commercial products or to provide a service to third parties without written approval of Biomeme, Inc.
