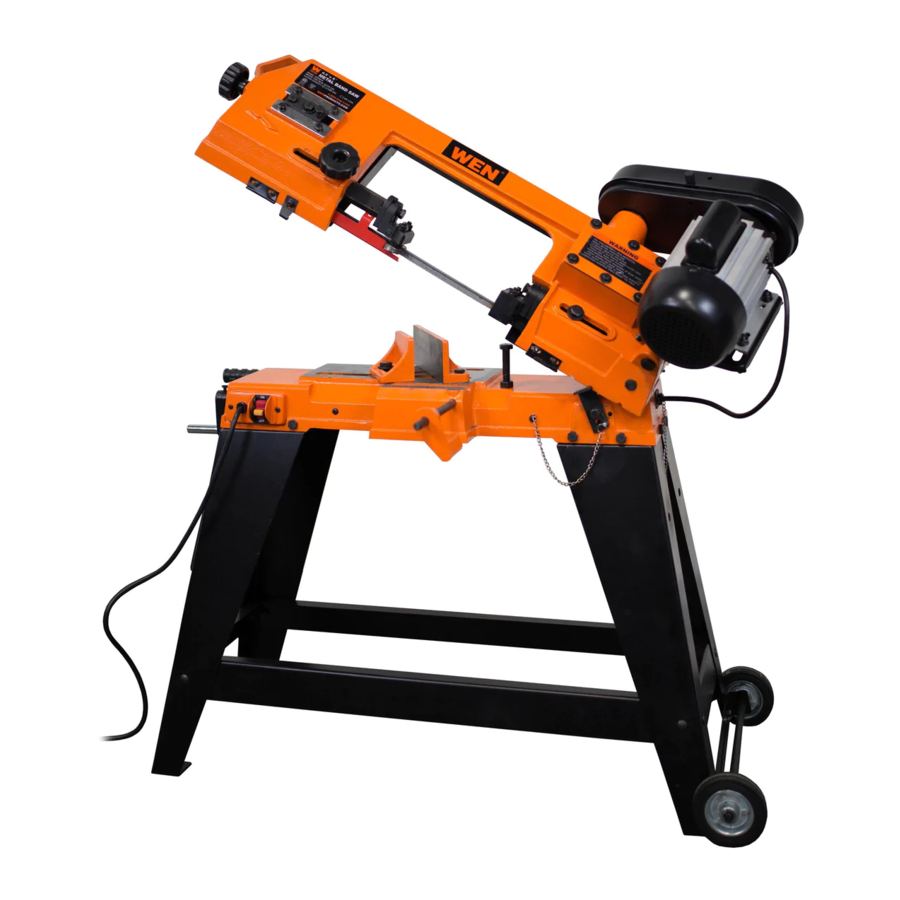

WEN BA4664 - 4-by-6-Inch Metal-Cutting Band Saw with Stand Manual

WEN BA4664 - 4-by-6-Inch Metal-Cutting Band Saw with Stand Manual

Also See for BA4664:

Advertisement

WEN BA4664 - 4-by-6-Inch Metal-Cutting Band Saw with Stand Manual


Your new tool has been engineered and manufactured to WEN 's highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

INTRODUCTION

We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator's manual and all the labels affixed to the tool. This manual provides information regarding potential safety concerns, as well as helpful assembly and operating instructions for your tool.

warning SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock or personal injury. However, please note that these instructions and warnings are not substitutes for proper accident prevention measures.

NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur. WEN reserves the right to change this product and specifications at any time without prior notice.

At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual, please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-800-232-1195.

Keep this manual available to all users during the entire life of the tool and review it frequently to maximize safety for both yourself and others.

SPECIFICATIONS

Model Number BA4664
Motor 120V, 60 Hz, 4.6A
Saw Blade 64-1/2 in. x 1/2 in. x 0.025 in., 14 TPI, Bimetal
Square Cutting Capacity At 90º: 4 in. x 6 in.
At 45º: 3-1/2 in. x 3 in.
Round Cutting Capacity At 90º: Ø 4-1/2 in.
At 45º: Ø 3 in.
Cutting Angle Adjustment 0º to 45º
Blade Speed 80, 120, 180 FPM
Oil Type L-CKE gear oil, ISO VG 220 (SAE 90, AGMA 5)
Oil Quantity 3 fl oz. (90 mL)
Weight 109 pounds
Product Dimensions 37 in. x 20-1/2 in. 38 in.

GENERAL SAFETY RULES


Read all safety warnings and all instructions. Failure to follow the warnings and may result in electric shock, fire and/or serious injury.

Safety is a combination of common sense, staying alert and knowing how your item works. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE THESE SAFETY INSTRUCTIONS.

WORK AREA SAFETY

  1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

  1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
  2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
  3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
  5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  6. If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

PERSONAL SAFETY

  1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a respiratory mask, non-skid safety shoes and hearing protection used for appropriate conditions will reduce the risk of personal injury.
  3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
  4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  6. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
  7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

POWER TOOL USE AND CARE

  1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
  2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
  5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  7. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
  8. Use clamps to secure your workpiece to a stable surface. Holding a workpiece by hand or using your body to support it may lead to loss of control.
  9. KEEP GUARDS IN PLACE and in working order.

SERVICE

  1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

CALIFORNIA PROPOSITION 65 WARNING

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling. Some examples of these chemicals are:

  • Lead from lead-based paints.
  • Crystalline silica from bricks, cement, and other masonry products.
  • Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area with approved safety equipment such as dust masks specially designed to filter out microscopic particles. and the warning labels.

SPECIFIC RUES FOR YOUR METAL BANDSAW


Do not operate the power tool until you have read and understood the following

SAW BLADE SAFETY

  1. Always wear protective gloves when handling saw blades.
  2. Only use blades with correct size and type for both your Metal Bandsaw and your workpiece.
    • The size of the saw blade is 64-1/2 x 1/2 inches.
    • The blade material is bimetal with 14 TPI.
  3. Never use damaged or deformed saw blades. Only use sharp blades.
  4. Install the saw blade in the correct orientation indicated in the instructions (see "Changing the Saw Blade").
  5. Keep hands out of path of saw blade. Never use your hands to remove metal chips by hangd. Use a brush at all times.
  6. Never reach around saw blade or reach in back of the saw blade.
  7. The use of accessories or attachments not recommended by the manufacturer may result in a risk of personal injury.

PERSONAL SAFETY

  1. Operate in a well ventilated area. Keep the floor area around the Metal Bandsaw level and free of slippery substances or other tripping hazards.
  2. Wear ANSI-approved safety goggles to protect your eyes from sparks and metal chips. Use hearing protection to protect yourself from hearing loss.
  3. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to pacemakers could cause pacemaker interference or pacemaker failure.
  4. Wear work gloves when handling saw blades. DO NOT wear gloves, neckties, jewelry, or loose clothing while operating the saw.
  5. Metal chips are harmful to your health. Use NIOSHapproved dust masks or other respiratory protection during operation and cleaning.
  6. Always turn off and unplug the Metal Bandsaw before making any adjustments or repair tasks. Never adjust the Metal Bandsaw or the workpiece while the saw is running.
  7. Only use the Metal Bandsaw to cut metal.

PREPARING THE METAL BANDSAW

When transporting the Metal Bandsaw, use the transportation handle and roll the assembled saw with the wheels. Never carry the device by its guards or its accessories.

  1. Examine the Metal Bandsaw for any damaged or missing parts. Replace or repair damaged parts before operation. Periodically check that all nuts, bolts and other fasteners are properly tightened.

SECURE YOUR WORKPIECE

  1. To avoid blade binding or loss of control, always secure the workpiece to a stable platform, ensuring that body exposure is minimized. Use clamps to secure the workpiece. Never perform any operation freehand.
  2. Ensure that work is correctly supported. Supports must be placed under the workpiece on both sides, close to the line of cut and near the edge of the workpiece.
  3. For accuracy of cut, and to avoid blade binding, always use a rip fence or straight edge guide.
  4. Never hand-hold a workpiece that is too small to be clamped, as it can be launched away and cause injury. Use proper support and guides to secure the small workpiece.

DURING CUTTING OPERATIONS

  1. Always stand to one side when operating the saw. Never have any part of the body in line with the path of the saw. Never hold a workpiece in your hand or across your legs while cutting.
  2. Ensure hands are away from the cutting area and blade. Keep one hand on the rear handle, and the other on the front grip. If both hands are holding the tool they cannot be cut by the blade.
  3. Feed work into the blade against the direction of rotation of the blade only.
  4. If you are interrupted when operating the saw, complete the process and switch the saw off before looking up.
  5. Power tools must always be held by the insulated gripping surfaces when performing an operation, ensuring protection if the cutting tool makes contact with its own cord or hidden wiring. Contact with a 'live' wire will make exposed metal parts of the power tool 'live' and shock the operator if the insulated gripping surfaces are not used.
  6. Do not use the Metal Bandsaw unless all guards are in place. Do not operate with any guard disabled, damaged, or removed. Moving guards must move freely and close instantly.
  7. Turn on the Metal Bandsaw and let it reach full speed, then slowly slide the saw into the workpiece. This will help produce safer and cleaner cuts.
  8. Never cut more than one piece ata time. Do not stack workpieces together. Do not attempt to cut material thicker than specified in this manual. Adjust the cutting depth to the thickness of the workpiece.
  9. If a cut does not extend to the edge of the workpiece, or if the blade binds in the cut, allow the blade to come to a complete stop and lift the saw out of the workpiece.
  10. Turn off tool and wait for saw blade to stop before moving workpiece or changing settings. Do not slow or stop a blade with a piece of wood or by hand. Let the blade come to rest naturally. Do not attempt to free a jammed blade while the machine is still running and connected to power.
  11. Always raise the blade to be covered by the blade guard after use.

ELECTRICAL INFORMATION

GROUNDING INSTRUCTIONS

In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet that is properly installed and grounded in accordance with ALL local codes and ordinances.

  1. Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a licensed electrician.
  2. Improper connection of the equipment grounding conductor can result in electric shock. The conductor with the green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or replacement of the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor to a live terminal.
  3. Check with a licensed electrician or service personnel if you do not completely understand the grounding instructions or whether the tool is properly grounded.
  4. Use only three-wire extension cords that have three-pronged plugs and outlets that accept the tool's plug (INSERT CR). Repair or replace a damaged or worn cord immediately.


In all cases, make certain the outlet in question is properly grounded. If you are not sure, have a licensed electrician check the outlet.

GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS

When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The smaller the gauge number, the heavier the cord.

AMPERAGE REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
4.6A 18 gauge 16 gauge 14 gauge 14 gauge
  1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it.
  2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord. Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
  3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running at a lower voltage will damage the motor.

UNPACKING & TRANSPORTATION


Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure to follow the safety instructions may result in serious personal injury.

UNPACKING

With the help of a friend or trustworthy foe, carefully remove the Metal Bandsaw from the packaging. Make sure to take out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact our customer service at 1-800-232-1195 (M-F 8-5 CST), or email techsupport@wenproducts.com.

PACKING LIST

(NOTE: The key is tied to the motor shaft. Hardware bag included but not shown below.)

PACKING LIST

ASSEMBLY/ADJUSTMENT TOOLS

The tools listed below are not included but are required for either assembly or adjustment:

  • 14mm open end wrench (2)
  • 10mm open end wrench (2)

TRANSPORTING

When transporting the Metal Bandsaw, use the transportation handle and roll the assembled saw with the wheels. Never carry the saw by its guards or its accessories.

KNOW YOUR METAL BANDSAW

TOOL PURPOSE

Metal Bandsaws are used to cut flat and round pieces of metal. Refer to the following diagrams to become familiarized with all the parts and controls of your Metal Bandsaw. The components will be referred to later in the manual for assembly and operation instructions.

KNOW YOUR METAL BANDSAW

  1. Blade Guides
  2. Blade Tension & Adjustment Knob
  3. Blade Guard Adjustment Knob
  4. Feed Rate Adjustment Handle
  5. Power Switch
  6. Vise Adjustment Handle
  7. Transportation Handle
  8. Wheel
  9. Work Stop Assembly
  10. Blade
  11. Motor
  12. Belt Housing

ASSEMBLY & ADJUSTMENTS


Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your tool. Failure to follow the safety instructions may result in serious personal injury.

ASSEMBLING THE STAND

  1. With the help of an assistant, lift the bandsaw onto a suitable support (Fig. 2).
    ASSEMBLING THE STAND - Step 1
  2. Attach the legs to the bandsaw with the M8-1.25x25 hex bolts, 8mm flat washers, 8mm lock washers, and the M81.25 hex nuts. Hand tighten.
  3. Attach the short braces (Fig. 2) to the legs with the M61.0x16 carriage bolts, 6mm flat washers, 6mm lock washers, and M6-1.0 hex nuts. Hand tighten.
  4. Lift the bandsaw off of the support and onto the floor. Attach the long braces (Fig. 3) to the legs with M6-1.0x16 carriage bolts, 6mm flat washers, 6mm lock washers, and M6-1.0 hex nuts. Hand tighten.
    ASSEMBLING THE STAND - Step 2
  5. Use the M6-1x12 hex bolts, M6-1 hex nuts, 6mm lock washers, and the 6mm flat washers to install the wheel mounting brackets (Fig. 4) onto the legs. Hand tighten.
    ASSEMBLING THE STAND - Step 3
  6. Slide the shaft through the holes in the wheel mounting bracket. Slide the wheels onto the shaft on the outside of the mounting bracket and secure them with the cotter pins. see Fig. 5.
    ASSEMBLING THE STAND - Step 4
  7. Check to see if the bandsaw is relatively level, then the tighten all of the nuts using the proper wrenches.
  8. Locate the holes on the legs opposite the wheels. Insert the transportation handle into the holes and secure it with the cotter pins (Fig. 6).
    ASSEMBLING THE STAND - Step 5
  9. Remove the screws and washers from where the belt housing needs to be mounted. Place the belt housing over the motor and gear shafts. Secure it with the removed screws and washers (Fig. 7 & Fig. 8).
    ASSEMBLING THE STAND - Step 6
  10. Open the pulley cover. Remove the key from the motor shaft and clean the motor shaft. Install the key and motor pulley to the motor shaft (Fig. 9).
  11. Install the worm gear pulley on the shaft closest to the gear box, opposite of the motor (Fig. 9).
    NOTE: Make sure to pay attention to the direction of the pulley's installation.
  12. Use a straight edge to check the alignment of the pulley wheels and adjust them as needed (Fig. 9).
  13. When the pulley wheels are aligned, tighten the set screws on both pulleys and install the V-belt. The belt tension can be adjusted with the motor lock bolt (Fig. 10).
  14. Slide the work stop shaft into the side of the bandsaw. Lock it into place by tightening the upper set screw. See Fig. 11.
  15. Slide the work stop onto the end of the work stop shaft and lock it into place with the lower set screw.

ADJUSTING THE VISE

  1. Loosen the two hex bolts on the large jaw. Use the scale as a guide to set your angle. Retighten the hex bolts. See Fig. 12.
    ADJUSTING THE VISE - Step 1
  2. Loosen the hex bolt on the small jaw. Match the angle of the workpiece. Retighten the hex bolt. See Fig. 13.
    ADJUSTING THE VISE - Step 2
  3. Use the handle (Fig. 14) to open or close the jaws. Tighten the vise against the workpiece.
    ADJUSTING THE VISE - Step 3

ADJUSTING THE BLADE GUIDE

Loosen the knob and slide the blade guide as close to the workpiece as possible, then re-tighten the knob. See Fig. 15.
ADJUSTING THE BLADE GUIDE

ADJUSTING THE FEED RATE

The feed rate has been set at the factory and should not need any adjustment. If adjustment is necessary follow the steps below.

  1. The feed rate is controlled by the spring and handle. See Fig. 14
    • Twist the handle clockwise to add tension to the spring and decrease the feed rate.
    • Twist the handle counterclockwise to remove the tension from the spring and increase the feed rate.


Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your tool. Failure to follow the safety instructions may result in serious personal injury.

ADJUSTING THE BLADE SPEED

The bandsaw is capable of operating at 80, 120 or 180 FPM. The speed can easily be adjusted by changing the V-belt placement (Fig. 16).
SPEED

To change the blade's speed:

  1. Loosen the motor lock bolt (Fig. 17) to allow the motor to pivot freely.
    ADJUSTING THE BLADE SPEED
  2. Raise the motor to relieve the belt tension and position the belt into the desired pulley alignment.
  3. Release the motor and let its weight tension the belt.
  4. Tighten the motor lock bolt back against the frame of the band saw. Tighten the nut against the motor plate.

USING THE HEAD LOCK PIN

The head locking pin (Fig. 18) safely secures the head in the down position. To ensure the head does not unexpectedly spring up and tip the bandsaw over, this locking pin must be properly inserted when the band saw is not in use or before moving it.
USING THE HEAD LOCK PIN

To use the head locking pin:

  1. Fully lower the head down.

Insert the locking pin through the holes in the head pivot arm and base, locking the head into the down position (Fig. 18).

OPERATION


Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your tool. Failure to follow the safety instructions may result in serious personal injury.

HORIZONTAL CUTTING (FIG. 19)

HORIZONTAL CUTTING

Use the work stop to quickly and accurately cut multiple pieces of stock to the same length.

  1. Clamp the material firmly in the vise jaws to ensure a straight cut through the material.
  2. Let the blade reach full speed before engaging the workpiece. Never start a cut with the blade in contact with the workpiece. NOTE: Chips should be curled and silvery. If the chips are thin and powder-like, increase your feed rate. If the chips are burned, reduce the blade speed.
  3. Wait until the blade has completely stopped before removing the workpiece from the vise. Avoid touching the cut ends, as they could be very hot.

VERTICAL CUTTING

Workpieces that cannot be properly supported or stabalized without a vise should not be cut in the vertical position. Make sure that the vertical table assembly is securely fastened to the band saw frame so it will adequately support the workpiece.

Always keep your fingers away from the blade. Adjust the blade guides as close as possible to the workpiece to minimize side-to-side blade movement.

To assemble the bandsaw for vertical cutting:

  1. Disconnect the bandsaw from the power supply.
  2. Install the safety bracket and lock it into place with the pin to keep the saw from falling. The bracket should catch on the notch. See Fig. 20.
    VERTICAL CUTTING - Step 1
  3. Remove the two flat head screws and the blade guide cover. See Fig. 21.
    VERTICAL CUTTING - Step 2
  4. Install the table and replace the two screws that you removed in step 3. See Fig. 22.
    VERTICAL CUTTING - Step 3
  5. Install the table support (Fig. 22) with the pre-installed hex bolt, the flat head screw, and the hex nut.

MAINTENANCE


To avoid accidents, turn OFF and unplug the tool from the electrical outlet before cleaning, adjusting, or performing any maintenance work.


Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts. Use of other parts may be hazardous or induce product failure.

ROUTINE INSPECTION

Before each use, inspect the general condition of the tool. If any of these following conditions exist, do not use until parts are replaced or the saw is properly repaired.

Check for:

  • Loose hardware,
  • Damaged or dull blades,
  • Misalignment or binding of moving parts,
  • Damaged cord/electrical wiring,
  • Cracked or broken parts, and
  • Any other condition that may affect its safe operation.

CLEANING & STORAGE

  1. Keep the ventilation openings free from dust and debris to prevent the motor from overheating.
  2. Use a brush and a shop vacuum to remove chips and other debris from the machine.
  3. Wipe the tool surfaces clean with a clean cloth. Make sure water does not get into the tool.

    Most plastics are susceptible to damage from various types of commercial solvents. Do not use any solvents or cleaning products that could damage the plastic parts. Some of these include but are not limited to: gasoline, carbon tetrachloride, chlorinated cleaning solvents, and household detergents that contain ammonia.
  4. Store the tool in a clean and dry place away from the reach of children. Store in temperatures between 41º to 86ºF. If you do not intend to use the sawing machine for a long time, remove the blade entirely (recommended) or relieve tension on the blade. This will prevent warping and prolong your blade's life.
  5. Cover the bandsaw in order to protect it from dust and moisture. It is preferable to store it in its original packaging with the instruction manual and all accessories.

LUBRICATION

The bearings of your bandsaw are permanently sealed and require no extra lubrication.

REPLACING THE OIL

If undergoing normal usage, replace the oil approximately once every year. The oil quantity is 3 fl oz. (90 mL). For professional or industrial use, replace more often.

  1. Open the gear box by removing the 6 screws (Fig. 23).
    REPLACING THE OIL
  2. Drain the oil and replace it. The oil type used with your bandsaw is L-CKE gear oil, ISO VG 220 (SAE 90, AGMA 5).

CHANGING THE SAW BLADE

  1. Use the head locking pin to lock the saw in the vertical position. Remove the blade cover screw and loosen the blade cover lock knob. See Fig. 24. Open the blade cover.
    CHANGING THE SAW BLADE - Step 1
  2. Move the motor-side blade guide as far as it will go toward the motor.
  3. Remove the two screws holding the red blade guard onto the blade guide, then remove the blade guide. See Fig. 25.
    CHANGING THE SAW BLADE - Step 2
  4. Loosen the tension knob and slip the blade off the wheels.
  5. Install the new blade through both blade guide bearings and around the bottom wheel in the same orientation as the old blade.
  6. Hold the blade around the bottom wheel with one hand and slip it around the top wheel with the other hand, keeping the blade between the blade guide bearings.
  7. Tighten the tension knob so the blade will not slip on the wheels upon startup. Re-install the red safety guard.

ADJUSTING THE BLADE TRACKING

Blade tracking has been set at the factory and should not require adjustment on your existing blade. If a tracking problem occurs, before making any tracking adjustments, try replacing with a new blade (see "Changing the Saw Blade" section above) and see if the tracking issue is resolved. Warped or worn blades will not track properly.

If the problem persists, adjust the machine as follows:

  1. Use the head locking pin to lock the saw in the vertical position. Remove the blade cover screw and loosen the blade cover lock knob. See Fig. 24. Open the blade cover.
  2. Confirm that the blade tension is set properly. Using a gloved finger, lightly press on the side of the saw blade. The blade should flex about 1/8 inch if properly tensioned. Adjust tension if necessary.
  3. Run the saw and observe the blade. The blade should run next to but not tightly against the wheel flange.
  4. To adjust the blade tracking, loosen the two shaft locking bolts. Slowly and carefully turn the shaft tracking bolt with a wrench, while observing the blade tracking on the wheel. See Fig. 26.
    ADJUSTING THE BLADE TRACKING
    • Turn the tracking bolt clockwise to track the blade closer to the wheel flange.
    • Turn the tracking bolt counterclockwise to track the blade away from the wheel flange.

      Blade tracking adjustment requires running the saw with the back cover open. This adjustment must only be completed by a qualified person. Failure to comply may cause serious injury.

      If the blade tension or tracking is improper, the blade can spring off, causing serious injury. Stand behind the saw and cover at all times when adjusting blade tracking to minimize the risk of injury. Make sure to wear safety glasses, work gloves, long work pants and a long sleeve shirt.
  5. Once the blade tracking is complete, tighten the two shaft locking bolts. See Fig. 26.
  6. Close the blade cover door. Tighten drive wheel cover screws. See Fig. 26.

BLADE ALIGNMENT

Check Blade tension

  1. Remove the black back cover and make sure the blade is properly aligned on both wheels.
  2. Adjust the blade tension until the blade sits properly centered (or does not move) on both wheels during operation

Check Blade Guard

Without the left blade guard, there is a twist on the blade due to the way it sits on the two wheels and how it is assembled. This is unavoidable (Fig. 27).
Check Blade Guard

Blade Guard

Arrows show the direction the bearings can be adjusted.
Blade Guard

Using the Blade Guard to Straighten the Blade

  1. Loosen the nut on the left blade guard (Fig. 29).
    Using the Blade Guard to Straighten the Blade - Step 1
  2. Adjust the blade guard (Fig. 30). The rear bearing will be in contact with the blade (Fig. 31).
    Using the Blade Guard to Straighten the Blade - Step 2
    NOTE: It is important to twist/adjust the blade guard in the direction as shown in figure 30. Because of how the blade is positioned on the wheels, this will help prevent the blade from sliding off of the wheel during operation.
  3. Adjust the thrust bearing so that it is in contact with the blade (Fig. 32).

    NOTE: If the blade still continues to slip off the wheels, check if the right blade guard is causing any unnecessary twist on the blade.

TROUBLESHOOTING GUIDE


Stop using the tool immediately if any of the following problems occur. Repairs and replacements should only be performed by an authorized technician. For any questions, please contact our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com.

PROBLEM POSSIBLE CAUSE SOLUTION
Motor does not start.
  1. Unit is not plugged in.
  1. Plug unit in.
  1. Defective power switch.
  1. Contact customer service at 1-800-232-1195 for assistance.
  1. Defective power cord.
  1. Contact customer service at 1-800-232-1195 for assistance.
  1. Defective start capacitor.
  1. Contact customer service at 1-800-232-1195 for assistance.
  1. Defective motor.
  1. Contact customer service at 1-800-232-1195 for assistance.
Machine stalls or is underpowered.
  1. Wrong blade for workpiece material.
  1. Use a different blade more suited to the material type.
  1. V-belt is worn or loose.
  1. Inspect belt or replace as need be.
  1. Pulley is loose.
  1. Re-align pulleys; tighten set screws.
Machine vibrates or operates noisily.
  1. V-belt is hitting belt cover.
  1. Verify that belt cover was installed properly.
  1. V-belt is worn or loose.
  1. Inspect belt or replace as need be.
  1. Pulley is loose.
  1. Re-align pulleys; tighten set screws.
  1. Worn bearing(s).
  1. Contact customer service at 1-800-232-1195 for assistance.
Teeth are ripping from the blade.
  1. Feed rate too high, blade speed too slow, or blade too coarse for workpiece.
  1. Decrease feed rate, adjust blade speed, or replace blade.
  1. Workpiece not clamped securely.
  1. Re-clamp workpiece. Use a jig if need be.
  1. Blade teeth gullets loading up with chips.
  1. Use a coarser-tooth blade.
Inaccurate cut squaring.
  1. Excessive cutting pressure (incorrect choice of feed rate).
  1. Decrease feed rate.
  1. Incorrect choice of blade tooth count.
  1. Use a different blade more suited to the material type.
  1. Incorrect adjustment of sliding blade guides.
  1. Check blade guide adjustment - they should be as close to the workpiece as possible.
  1. Incorrect choice of cutting speeds.
  1. Adjust cutting speed.
  1. Workpiece not securely clamped in vise, or improperly positioned in vise.
  1. Re-clamp or re-position the workpiece in the vise.
  1. Poor blade tension.
  1. Check blade tension.
  1. Warped blade.
  1. Contact customer service at 1-800-232-1195 for assistance.
Blade tends to protrude from guide bearings.
  1. Excessive blade tension.
  1. Check blade tension.
  1. Incorrect tracking adjustment.
  1. Adjust blade tracking.
  1. Blade is slipping on guide bearings (cutting oil has been used).
  1. We do not recommend using lubricant or coolant with this bandsaw. Contact customer service at 1-800-232-1195 for assistance.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

1-800-232-1195 (M-F 8AM-5PM CST) | TECHSUPPORT@WENPRODUCTS.COM

For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM

To purchase accessories for your tool, visit WENPRODUCTS.COM

Replacement Blades (Part No. 3970-044 or BB6450)

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download WEN BA4664 - 4-by-6-Inch Metal-Cutting Band Saw with Stand Manual

Advertisement

Need help?

Need help?

Do you have a question about the BA4664 and is the answer not in the manual?

Questions and answers

Table of Contents
