Wen BA1411 Instruction Manual

Wen BA1411 Instruction Manual

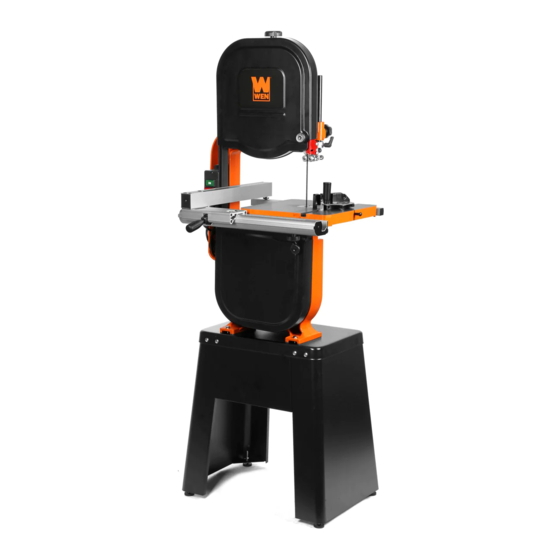

14-inch two-speed band saw

Advertisement

MODEL BA1411
14-INCH TWO-SPEED
BAND SAW
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BA1411 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wen BA1411

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ......................3 Specifications ....................3 SAFETY General Safety Rules ..................4 Specific Rules for Your Bandsaw ..............6 Electrical Information ..................8 BEFORE OPERATING Unpacking & Packing List ................10 Know Your Bandsaw ..................11 Assembly & Adjustments ................12 OPERATION &...
  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Band Saw. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.
  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6: Specific Rules For Your Bandsaw

    SPECIFIC RULES FOR YOUR BANDSAW WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. SAW BLADE SAFETY 6. Always turn off and unplug the band saw before mak- ing any adjustments or repair tasks. Never adjust the 1.
  • Page 7 SPECIFIC RULES FOR YOUR BANDSAW WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. DURING CUTTING OPERATIONS 8. Turn on the band saw and let it reach full speed, then slowly slide the workpiece into the blade.
  • Page 8: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.
  • Page 9 ELECTRICAL INFORMATION VOLTAGE CONVERSION This machine is prewired for operation on a 110V - 120V, 60Hz circuit, but can be converted to operate on a properly-grounded, 220V - 240V, 60Hz AC circuit, rated for not less than 15 amps. The voltage conversion MUST be performed by a licensed professional electrician according to the instructions here.
  • Page 10: Before Operating

    UNPACKING & PACKING LIST WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure to follow the safety instructions may result in serious personal injury. UNPACKING With the help of a friend or trustworthy foe, carefully remove the band saw from the packaging. Make sure to take out all contents and accessories.
  • Page 11: Know Your Bandsaw

    TOOL PURPOSE Make continuous and precise cuts with your WEN Band Saw. Refer to the following diagrams to become familiar- ized with all the parts and controls of your band saw. The components will be referred to later in the manual for assembly and operation instructions.
  • Page 12: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read through and become familiarized with the following procedures of handling and adjusting your tool. Failure to follow the safety instructions may result in serious personal injury. ASSEMBLING THE STAND Fig.
  • Page 13 ASSEMBLY & ADJUSTMENTS MOUNTING THE BANDSAW TO THE STAND Fig. 4 1. Locate the four mounting holes on the top of the stand. With the help of a friend, or trustworthy foe, carefully lift the bandsaw onto the stand and align the four holes with the four mounting bracket holes (Fig.
  • Page 14 ASSEMBLY & ADJUSTMENTS ASSEMBLING THE FENCE Fig. 8 1. Install the front fence rail (Fig. 8 - 1) on the front side of the table using two M6x20 hex bolts, two 6mm lock washers, and two 6mm flat washers (Fig. 8 - 2). NOTE: There are two sets of threaded holes on the front of the table.
  • Page 15 ASSEMBLY & ADJUSTMENTS SAW BLADE TENSION & TRACKING Fig. 12 Before initial cutting and after every blade change, check and adjust blade tracking so that the blade runs on the center of the wheels. 1. Turn off the band saw and unplug it from the power source. Make sure that the blade is not moving, then adjust the upper and lower blade guides away from the blade.
  • Page 16 ASSEMBLY & ADJUSTMENTS BLADE GUIDE BEARING ADJUSTMENT Fig. 15 The blade guide bearings need to be readjusted after every blade change or blade tracking adjustment. 1. Upper Thrust Bearing: 1. Loosen the assembly lock lever (Fig. 15 - 1) and ensure that the blade guide assembly is perpendicular to the blade.
  • Page 17 ASSEMBLY & ADJUSTMENTS TILTING THE TABLE Fig. 18 1. Unlock the two table lock knobs (Fig. 18 - 1). Use the bevel scale indicator (Fig. 18 - 2) to adjust the table to the correct angle. The table can be beveled to the right 45° and to the left 15°. 2.
  • Page 18 ASSEMBLY & ADJUSTMENTS ALIGNING THE FENCE Fig. 22 1. Make sure that the tool is OFF and disconnected from the power source. 2. Make sure that the table is aligned with the blade. See "ALIGNING THE TABLE". 3. Install the fence on the right side of the blade and align it against the miter gauge slot.
  • Page 19 ASSEMBLY & ADJUSTMENTS WARNING! The blade is extremely sharp. Only handle the blade when wearing protective gloves. REMOVING & REPLACING THE BLADE Removing the blade: 1. Make sure that the tool is OFF and disconnected from the power source. 2. Push the blade tension quick release lever to the UP position to release the tension on the blade. 3.
  • Page 20: Operation & Maintenance

    OPERATION TURNING THE SAW ON / OFF Fig. 25 The bandsaw can be powered ON and OFF by pressing the ON / OFF switch (Fig. 25 - 1). The ON / OFF switch can also be disabled and locked by inserting a padlock through the hole in the ON button (Fig.
  • Page 21: Maintenance

    OPERATION GENERAL CUTTING WARNING! Operating a band saw involves a certain amount of risk. Make sure to read all the instructions and plan your work before cutting a workpiece. Wear safety goggles to protect your eyes from possible injury. NOTE: Before cutting the actual workpiece, it’s best to use a scrap piece of lumber to check the settings and to get the feel of operating the band saw.
  • Page 22: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST BANDSAW...
  • Page 23 EXPLODED VIEW & PARTS LIST BANDSAW Part No. Description Qty. Part No. Description Qty. BA1411-1001 Base BA1411-1025 Power Cord BA1411-1026 Motor Cord BA1411-1002 Hex Bolt, M6x55 Flat Washer, 16mm BA1411-1027 Strain Relief BA1411-1003 x 40 BA1411-1028 Upper Frame BA1411-1004 Nut, M16...
  • Page 24 EXPLODED VIEW & PARTS LIST BANDSAW Part No. Description Qty. Part No. Description Qty. Thumb Screw, BA1411-1050 Star Washer, 8mm BA1411-1080 M6x16 BA1411-1051 Door Latch Stud Upper Thrust Phillips Head BA1411-1081 BA1411-1055 Bearing Post Screw, M5x12 Ball Bearing, BA1411-1056 Catch...
  • Page 25 EXPLODED VIEW & PARTS LIST BANDSAW Part No. Description Qty. Part No. Description Qty. BA1411-1108 Pointer BA1411-1130 Set Screw, M5x10 Flange Screw, Upper Tension BA1411-1109 BA1411-1131 M5x6 Block Flat Washer, 10mm BA1411-1110 Table Knob, M10 BA1411-1132 x 20 BA1411-1111 Hex Bolt, M10x50...
  • Page 26 EXPLODED VIEW & PARTS LIST STAND Part No. Description Qty. Part No. Description Qty. Top Panel with Flat Washer, 6mm BA1411-2001 BA1411-2008 Cross Braces x 13 BA1411-2003 Large Side Panel BA1411-2009 Flanged Nut, M6 BA1411-2004 Small Side Panel BA1411-2010 Foot...
  • Page 27 EXPLODED VIEW & PARTS LIST FENCE & RAIL ASM-1 ASM-3 ASM-2...
  • Page 28 EXPLODED VIEW & PARTS LIST FENCE & RAIL Part No. Description Qty. Part No. Description Qty. Fence BA1411-3012.15 Nut, M8 ASM-1 BA1411-3012ASM Assembly Phillips-head BA1411-3012.16 Fence Rail Screw, M4x6 ASM-2 BA1411-3013ASM Assembly BA1411-3013.17 Rail End Cover ASM-3 BA1411-4001 Square Tube Fence End BA1411-3012.18...
  • Page 29 Qty. Saw Body Top Panel with BA1411-3001ASM BA1411-2001 Assembly Cross Braces Miter Gauge Large Side BA1411-1114ASM BA1411-2003 Assembly Panel Small Side BA1411-3003ASM Table Assembly BA1411-2004 Panel Trunnion Hardware Bag, BA1411-1105 Support BA1411-3010 Stand Bracket Fence, Rail, and BA1411-3005 Manual BA1411-3012ASM...
  • Page 30: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
  • Page 31 NOTES...
  • Page 32 THANKS FOR REMEMBERING V. 2022.07.12...
