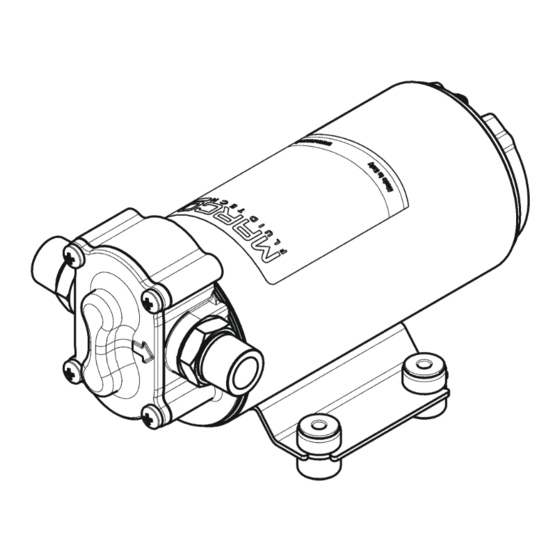

Self-priming electric pump for transferring various liquids

Advertisement

Quick Links

SELF-PRIMING ELECTRIC PUMP
FOR TRANSFERRING VARIOUS LIQUIDS
INSTRUCTIONS FOR USE
164 322 12-US - UP12-LO 12V
164 322 13-US - UP12-LO 24V
©
S.p.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the UP12-LO 12V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Marco UP12-LO 12V

  • Page 1 SELF-PRIMING ELECTRIC PUMP FOR TRANSFERRING VARIOUS LIQUIDS INSTRUCTIONS FOR USE 164 322 12-US - UP12-LO 12V 164 322 13-US - UP12-LO 24V © S.p.A.
  • Page 3 PRODUCT DESCRIPTION Self-priming electric particularly designed for the transfer of lubricating oils or viscous liquids. The pumping elements are made up of bronze gears which can possibly even run dry for brief periods. TECHNICAL DETAILS Tab.1 EN FUSE FLOW RATE (*) WEIGHT WIRE SIZE (**) CODE...
  • Page 4: Ambient Conditions

    AMBIENT CONDITIONS TEMPERATURE: min.-10°C/14°F - max.60°C/140°F RELATIVE HUMIDITY: max. 90 % WARNING: the above indicated temperature ranges are applicable to all components of the pump and these limits must be respected in order to avoid any possible damage or malfunctioning. OPERATING CYCLE The pump can operate on a continuous cycle with the following conditions: Ø...
  • Page 5 To ensure the correct directional flow of the fluid as indicated by the arrow on the top plate, it is necessary to connect the positive pole (+) of the battery supply to the red wire on the motor end-cap and the negative pole (-) to the black wire. Electrical connections must be made using adequate terminal blocks and connectors ensuring a tight fitment of the electrical cables.
  • Page 6: Troubleshooting

    TROUBLESHOOTING CHECK POINTS IF THE PUMP HAS STOPPED OR WILL NOT START Ø Check the effectiveness of the battery power supply (voltage activity); Ø Check if the fuse has blown; Ø Check for any foreign matter present in the pump body. To do this, disconnect the power supply and unscrew the four fixing screws, remove the front cover plate and inspect the chamber.
  • Page 7: Warranty

    5) The Warranty does not cover any related installation costs involved. 6) Transport costs are refundable only in the case where warranty has been duly accepted by Marco Spa and they will be limited to the actual shipment costs between Marco Spa warehouse and the client's delivery address.
  • Page 8 EXPLODED VIEW © S.p.A.
  • Page 9 DIMENSIONS © S.p.A.
  • Page 10 DIAGRAMS FLOW RATES DIAGRAM (water) 14,5 43,5 72,5 AMPERE-DRAW DIAGRAM (water) 14,5 43,5 72,5 © S.p.A.
  • Page 11 DIAGRAMS FLOW RATE DIAGRAM (T46 oil) °F AMPERE-DRAW DIAGRAM (T46 oil) © S.p.A.
  • Page 12 DIAGRAMS © S.p.A.
  • Page 13 E.C. DECLARATION OF CONFORMITY We confirm that the product: 164 322 12-US - UP12-LO 12V Gear Pump 164 322 13-US - UP12-LO 24V Gear Pump is in conformity with the Directive 2014/30/EU (ex. 2004/108/EC) relating to electromagnetic compatibility and with the Directive 2006/42/EC relating to the machines.
  • Page 14 NOTES © S.p.A.
  • Page 16 Property of MARCO S.p.A reproduction prohibited. All rights reserved. For further information visit our web site - www.marco.it Marco S.p.A Via Mameli 10 - 25014 Castenedolo (Brescia) – Italy tel. +39 030 2134.1 / Fax +39 030 2134.300...
