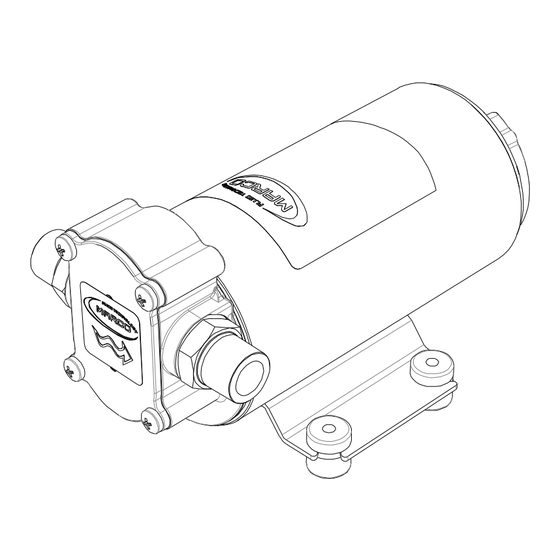

- Page 1 SELF-PRIMING ELECTRIC PUMP FOR TRANSFERRING VARIOUS LIQUIDS INSTRUCTIONS FOR USE 164 320 12-US - UP12/OIL 12V 164 320 13-US - UP12/OIL 24V © S.p.A.
- Page 2 Tab.1 EN FUSE FLOW RATE (*) WEIGHT WIRE SIZE (**) CODE TYPE VOLT 164 320 12-US UP12/OIL Ø12 Ø16 164 320 13-US (*) Internal tube Ø 0.6 in / (**) Length up to 6.6 ft IP 67 Protection APPLICATIONS Ø...
- Page 3 AMBIENT CONDITIONS TEMPERATURE: min.-10°C 14°F-max.60°C 140°F RELATIVE HUMIDITY: max. 90 % WARNING: the above indicated temperature ranges are applicable to all components of the pump and these limits must be respected in order to avoid any possible damage or malfunctioning. OPERATING CYCLE The pump can operate on a continuous cycle with the following conditions: Ø...
- Page 4 To ensure the correct directional flow of the fluid as indicated by the arrow on the top plate, it is necessary to connect the positive pole (+) of the battery supply to the red wire on the motor end-cap and the negative pole (-) to the black wire. Electrical connections must be made using adequate terminal blocks and connectors ensuring a tight fitment of the electrical cables.
- Page 5 TROUBLESHOOTING CHECK POINTS IF THE PUMP HAS STOPPED OR WILL NOT START Ø Check the effectiveness of the battery power supply (voltage activity); Ø Check if the fuse has blown; Ø Check for any foreign matter present in the pump body. To do this, disconnect the power supply and unscrew the four fixing screws, remove the front cover plate and inspect the chamber.
- Page 6 5) The Warranty does not cover any related installation costs involved. 6) Transport costs are refundable only in the case where warranty has been duly accepted by Marco Spa and they will be limited to the actual shipment costs between Marco Spa warehouse and the client's delivery address.
- Page 7 EXPLODED VIEW Pos. Q.ty Description Pos. Q.ty Description PUMP BODY IDLE GEAR O-RING DRIVING GEAR ARMATURE O-RING PUMP FRAME TOP PLATE BRUSH HOLDER SCREW O-RING TUBE OUTLET WASHER O-RING ANTIVIBRATION MOUNT * SCREWS NOT INCLUDED © S.p.A.
- Page 8 DIMENSIONS © S.p.A.
- Page 9 DIAGRAMS FLOW RATE DIAGRAM ø 16 ø 12 °F AMPERE-DRAW DIAGRAM (12V) (24V) °F © S.p.A.
- Page 10 E.C. DECLARATION OF CONFORMITY We confirm that the product: 164 320 12-US - UP12/OIL 12V Gear pump 164 320 13-US - UP12/OIL 24V Gear pump is in conformity with the Directive 2014/30/EU (ex. 2004/108/EC) relating to electromagnetic compatibility and with the Directive 2006/42/EC relating to the machines.
- Page 12 Property of MARCO S.p.A reproduction prohibited. All rights reserved. For further information visit our web site - www.marco.it Marco S.p.A Via Mameli 10 - 25014 Castenedolo (Brescia) – Italy tel. +39 030 2134.1 / Fax +39 030 2134.300...
