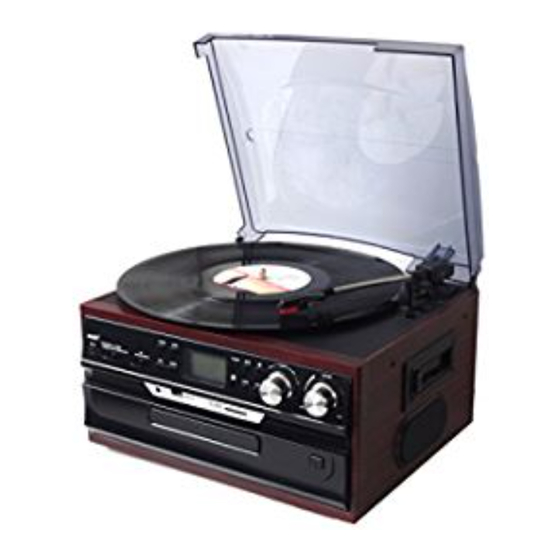

- Page 1 CLASSICAL TURNTABLE WITH AM/FM RADIO CD, CASSETTE PLAYER & USB/SD SLOT/BLUETOOTH MODEL: PTTCDS72UBT Operating Instructions Manual...
-
Page 2: Important Safety Instructions
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE SHOCK HAZARD, DO EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 3: Unpacking And Setup
Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas, places subject to constant vibration and/or humid or moist areas. Do not attempt to clean this unit with chemical solvents as this might damage the finish. -
Page 4: Protect Your Furniture
plug. If this plug does not fit into your existing AC outlet, do not try to defeat this safety feature by filing the wide blade to make it fit into your outlet. If this plug will not fit into your outlet, you probably have an outdated non-polarized AC outlet. - Page 5 Dust cover LC display Mode (CD/USB/SD) Power LED indicator Record button 15) Play/Pause button Radio band selector (AM/FM/FM-Stereo) 16) Stop button Function selector(LP/CD/USB/SD/TAPE/BT) 17) Volume knob Auxiliary input 18) Tuning knob 3.5mm headphone socket 19) Skip up button Delete button 20) Skip down button Program button...
-
Page 6: Back Panel
29 ) Speed selector (33/45/78 rpm) Tone arm BACK PANEL 31) Cassette EJ/FF Button (Eject/Fast Forward.) Cassette Player Slot. RCA Line out jack 34 ) FM wire antenna AC power cord REMOTE CONTROL 36) Mute button 37) Program button 38) Repeat button 39) Mode button 40) Skip down button... -
Page 7: Phono Operation
start searching automatically and stop when a radio station is found. Release the knob once a station has been found. Repeat the above step until your desired radio station is found. Adjust the volume knob to your desired volume level. AM reception: the receiver has a built-in AM bar antenna. - Page 8 6. Move the lift lever towards the back to raise the tone arm from the arm park, then slowly move the arm to the record, as illustrated on the right. The turntable will start rotating. 7. Move the lift lever towards the front, the tone arm will gently drop onto the record and playback will start.
- Page 9 6. Lower the tone arm to start playback of the record. During encoding, the USB or SD icon will be flashing on the display. 7. To finish encoding, press the stop button. The display will show “END” and return to PHONO mode.
- Page 10 USB or SD icon will be flashing on the LC display. 3. Press the skip up or skip down button to select the desired mode (USB or SD) for encoding, then press the record REC button again to confirm. (You can skip this step if only a USB drive or an SD/MMC card is inserted.) 4.
- Page 11 2. Press the record REC button, it will take 3 - 4 second to read the memory device, then the USB or SD icon will be flashing on the LC display. 3. Press the skip up or skip down button to select the desired mode (USB or SD) for encoding, then press the record REC button again to confirm.
- Page 12 label next to the memory card slot), making sure to insert it straight without bending. IMPORTANT: Connecting the USB device upside down or backwards could damage the audio system or storage media (USB drive, SD or MMC card). Check to ensure the direction is correct before connection.
- Page 13 format, it is not a malfunction of the system. There are numerous USB and SD device producers and their products vary in solution and format. We therefore cannot guarantee that this unit will support all USB and SD devices from every brand.
- Page 14 the display and the system will revert to USB or SD mode. Copying a folder 1. Insert a USB storage device and SD card, then select USB/SD mode (as described previously). When the system has recognised the device, press the stop button.
- Page 15 flashing on the display. Press the delete DEL button again to confirm. 3. “DEL” will show on the display while the file/track is being deleted until the deletion is complete. Deleting a folder 1. Insert a USB storage device and SD card, then select USB/SD mode (as described previously). When the system has recognised the device, press the stop button.
- Page 16 3, Press the MODE button on the front panel once to Bluetooth mode,and the LCD will show “BT” all the time. 4, Turn on your bluetooth device and scan , “Pyle Turntable” will be found on your bluetooth device. Paired and connect the unit and your bluetooth device.
-
Page 17: Troubleshooting Guide
4. The system will start the encoding mode after a few seconds. During encoding, the USB or SD icon will be flashing on the display. 5. To finish encoding, press the stop button. The display will show “END” and return to TAPE/AUX mode. - Page 18 If FM reception is weak, try the following to improve reception: Completely unravel the wire aerial at the back of the cabinet. Slightly move the wire aerial for better reception. If none of these measures improve stereo reception, try the same station on the FM (mono) band. ...
