Summary of Contents for Pyle Vintage PTTCSM70BT

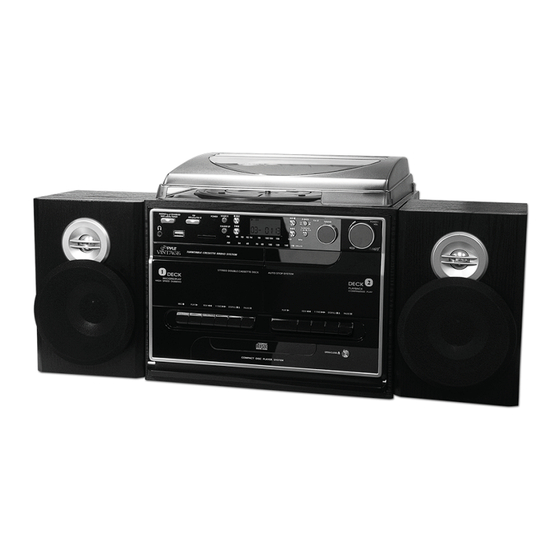

- Page 1 CD/MP3 TURNTABLE WITH AM/FM RADIO DOUBLE CASSETTE, USB/SD ENCODING AND BLUETOOTH FUNCTION PTTCSM70BT User's Manual www.Pyleaudio.com...
-
Page 2: Location Of Controls
LOCATION OF CONTROLS 1) DUST COVER 2) LCD DISPLAY 3) RECORD BUTTON 4) SOURCE BUTTON 5) BLUETOOTH INDICATOR 6) FUNCTION SELECTOR 7) 3.5MM HEADPHONE JACK 8) USB SOCKET 9) CASSETTE DECK (1) DOOR 10) BAND/FM STEREO SELECTOR 11) SD/MMC CARD SLOT 12) MP3 FOLDER UP BUTTON 13) SKIP DOWN BUTTON... - Page 3 CONNECTION BEFORE CONNECT THE POWER CORD TO THE AC OUTLET, PLEASE SELECT THE PROPER(110/220V) INPUT VOLTAGE OF THE UNIT BY VOLTAGE SELECTOR(37) TO MATCH THE VOLTAGE SUPPLIER FROM AC OUTLET OF YOUR AREA. CONNECT THE POWER CORD (35) TO AC OUTLET AND CONNECT THE SPEAKER JACK TO THE SPEAKER TERMINAL (33) LOCATED ON THE REAR SIDE OF UNIT.
-
Page 4: Random Play
SONG TITLE/FOLDER NAME SEARCH FUNCTION (BY REMOTE HANDSET) YOU CAN SEARCH THE TRACK BY THE TITLE/FLODER NAME IN DISC DURING STOP MODE:- PRESS THE “ FIND “ BUTTON ONCE, THEN PRESS THE “SKIP UP” (OR SKIP DOWN) BUTTON (24,13), YOU CAN SEARCH THE TITLE OF EACH SONG ONE BY ONE UNDER ALPHABET ORDER ON LCD DISPLAY, THEN PRESS THE CD “... - Page 5 CD DISC PROGRAMMING (BY REMOTE CONTROL) UP TO 32 TRACKS CAN BE PROGRAMMED FOR CD OR MP3 FILE AND PLAY IN ANY ORDER. BEFORE USE, BE SURE THE SYSTEM IS AT STOP MODE BEFORE PROGRAMMING:- SET IN CD/USB MODE & STOP THE CD PLAYBACK. PRESS THE “PROGRAM”...
-
Page 6: Line Out Connection
REMARK : DUE TO AUX AND PHONO WERE DESIGNED AT THE SAME POSITION OF THIS SYSTEM. WHEN AUX IN JACK(36) PLUGGED BY 3.5MM STEREO PLUG. THE CHANNEL WILL CHANGE TO AUX AUTOMATICALLY AND TURNTABLE WILL STOP TO ROTATE. PLEASE ENSURE THE AUX IN JACK(36) WITHOUT PLUGGED BY ANYTHING BEFORE PLAYING PHONO. - Page 7 PRESS THE “ DUBBING “ BUTTON (23) TO “ HI “ POSITION AND THEN FOLLOW THE SAME PROCEDURES AS STIPULATED IN “DUBBING AT NORMAL SPEED”. WHEN DUBBING A PRE-RECORDED CASSETTE TAPE AT HIGH SPEED, A CHATTERING SOUND IS BEING HEARD. TO AVOID THIS, SET THE VOLUME CONTROL TO A MINIMUM LEVEL. DO NO ACTIVE/DE-ACTIVE THE “HI-NOR.
- Page 8 IV) COPYING OF MP3 FILE IF PUTTING A MP3 DISC INSTEAD OF A CD-DISC, THE SYSTEM WILL COPY THE FILES TO THE USB OR SD/MMC CARD IF PRESS THE “ RECORD “ BUTTON (3). THE OPERATION PROCEDURES IS SAME AS CD ENCODING AS STIPULATE ON ABOVE, AND THE SYSTEM WILL SWITCH TO COPYING MODE ONLY IF MP3 FILE BEING READ.
- Page 9 FILE DELETE AT USB / SD CARD (BY REMOTE CONTROL) THE SYSTEM IS ABLE TO ERASE THE FILE STORED INSIDE THE USB PEN DRIVE OR SD CARD BY FOLLOWING:- A) SINGLE FILE DELETE 1 SELECT AT “ USB “ OR “ SD “ MODE. 2 PRESS AND HOLD THE “...
-
Page 10: Button Description
REMOTE CONTROL TRANSMITTER BATTERY INSTALLATION (BATTERY NOT PROVIDED) THE INFRA-RED TRANSMITTER REQUIRES 2 PC AAA SIZE BATTERY FOR OPERATION BUTTON DESCRIPTION 1) FIND IN MP3 PLAYBACK, PRESS TO ACTIVE FILE/FOLDER NAME SEARCH FUNCTION. 2) INFO PRESS TO SELECT ENCODING BITRATE 3) REC PRESS TO ACTIVE ENCODING OR RECRRDING FUNCTION 4) REP/INTRO/RAN...
