Summary of Contents for Pyle PTR8U

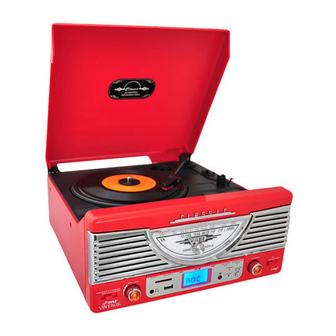

- Page 1 TURNTABLE PLAYER WITH STEREO RADIO AND USB/SD ENCODING PTR8U INSTRUCTION MANUAL...
- Page 2 LOCATION OF CONTROLS 1) DUST COVER 2) DIAL POINTER 3) LEFT SPEAKER 4) PLAY/PAUSE/STOP BUTTON 5) SKIP DOWN BUTTON 6) SOURCE BUTTON 7) RECORD BUTTON 8) POWER OFF/FUNCTIONS SELECTOR 9) VOLUME UP/DOWN CONTROL KNOB 10) 3.5 MM HEADPHONE JACK 11) SD/MMC CARD SLOT 12) USB SOCKET 13) LCD DISPLAY 14) RIGHT SPEAKER...
- Page 3 SET THE RADIO BAND SELECTOR (18) AT “FM-ST” POSITION FOR RECEIVING STEREO PROGRAMS. THE FM-STEREO LED INDICATOR (22) WILL LIGHT UP TO SHOW FM STEREO PROGRAM IS RECEIVING. HINTS FOR BEST RECEPTION:- AM : THE RECEIVER HAS A BUILT-IN AM BAR ANTENNA. IF AM RECECPTION IS WEAK, SLIGHTLY ROTATE OR RE-POSITIONING OF THE UNIT WILL USUALLY IMPROVE THE AM RECEPTION.
- Page 4 REMARK:- - IN THAT CASE OF NO NAME HAD BEEN ASSIGNED FOR THE TRACK, “ NOFILE “ IS BEING DISPLAYED” ON LCD DISPLAY (13). - THE LCD DISPLAY (13) SUPPORT ENGLISH LANGUAGE ONLY MP3 TRACK FORMAT REQUIREMENT:- MP3 BIT RATE : 128 KBPS. THE PERFORMANCE OF PLAYING MP3 FILE IS VARIOUS FROM THE QUALITY OF RECORDING DISC AND...
-
Page 5: Line Out Connection
IF BOTH MEDIA (USB/SD) INSERTED TO THE UNIT, UNIT DEFAULTED RECORD TO USB MEDIA WHEN ENCODING FROM PHONO. DUE TO THIS UNIT DEFAULTED AT USB MODE ENCODE, THUS, DURING ENCODING TO SD CARD, PLEASE DO NOT INSERT THE USB MEDIA, IT WILL CAUSE THE UNIT HAD ABNORMAL PHENOMENON. TRACK SEPARATION (BY REMOTE HANDSET) YOU CAN DIVIDE THE RECORDING MUSIC FROM PHONO TO USB/SD TRACK BY TRACE DURING ENCODING. -
Page 6: Remote Control Transmitter
REMOTE CONTROL TRANSMITTER BATTERY INSTALLATION (BATTERY NOT PROVIDED) THE INFRA-RED TRANSMITTER REQUIRES 2 PC AAA SIZE BATTERY FOR OPERATION BUTTON DESCRIPTION 1) FIND IN MP3 MODE, PRESS TO ACTIVE FILE NAME SEARCH FUNCTION. 2) INFO IN USB/SD MODE, PRESS TO ACTIVE THE ID3 FEATURE 3) REC PRESS TO ACTIVE RECORDING 4) REP/INTRO/RAN...
