Summary of Contents for TEFAL RK901

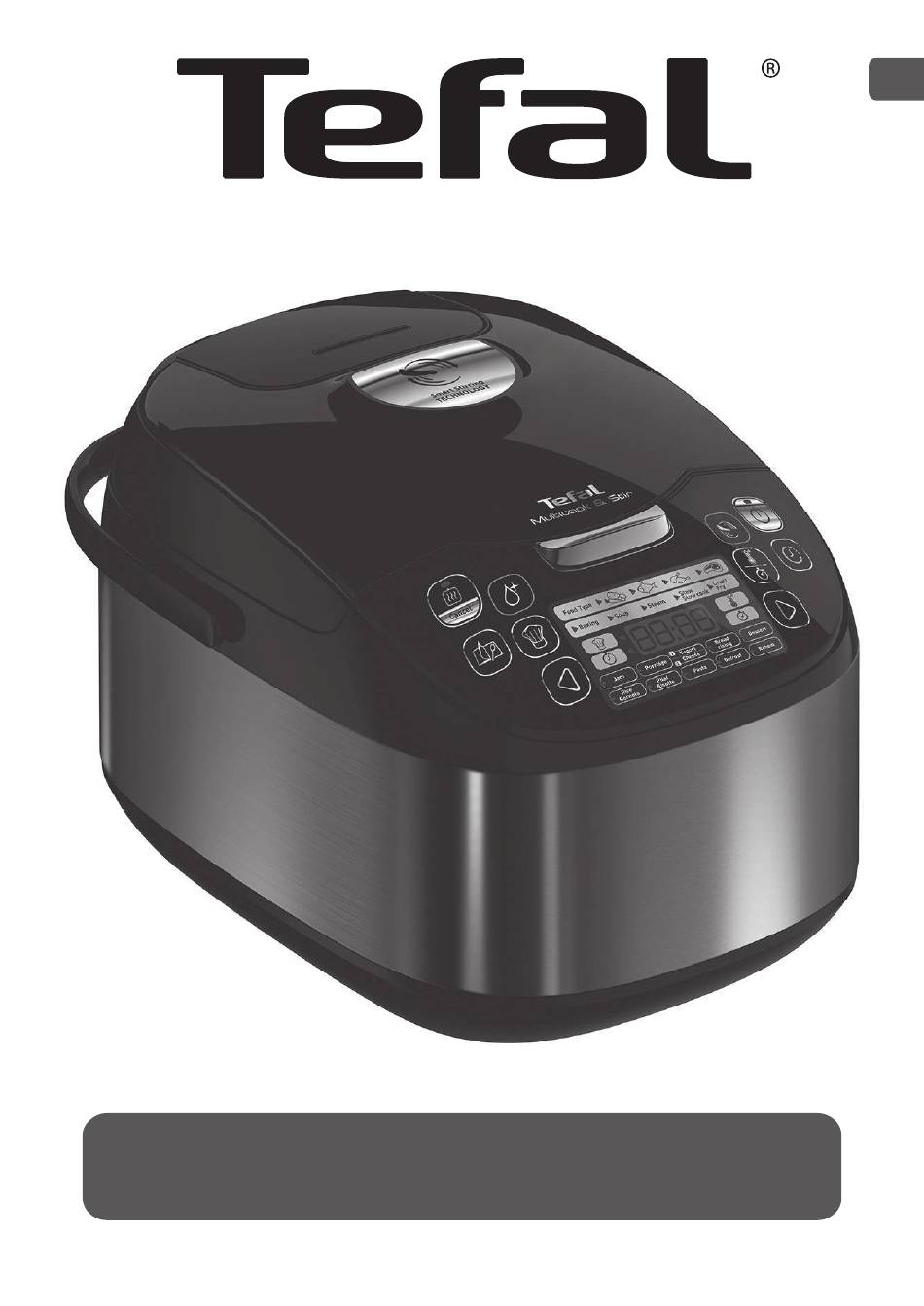

- Page 1 MULTICOOK & STIR www.tefal.com...
- Page 2 16&17...
- Page 3 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6 Fig.7 Fig.8 cups MAX. Fig.9 Fig.10 Fig.11 Fig.12 Fig.13 Fig.14 Fig.15 Fig.16 Fig.17 Fig.18 Fig.19 Fig.20...
- Page 4 Fig.21 Fig.22...
-
Page 5: Control Panel
CONTROL PANEL m h n... - Page 6 DESCRIPTION 1 Steam basket 17 Function indicators 2 Graduation for water and rice a Baking function 3 Removable pot b Soup function 4 Measuring cup c Steam function 5 Rice spoon d Stew/Slow cook function 6 Soup spoon e Crust/Fry function 7 Lid f Jam function 8 Removable inner lid...
-
Page 7: Safety Instruction
SAFETY INSTRUCTION IMPORTANT SAFEGUARDS SAFETY INSTRUCTIONS Read and follow the instructions for use. Keep them safe. • This appliance is not intended to be operated by means of an external timer or a separate remote- control system. • This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they... - Page 8 use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • As this appliance is for household use only, it is not intended for use in the following applications and the guarantee will not apply for: −...
- Page 9 • If the symbol is marked on the appliance, this symbol means “ Caution: surfaces may become hot during use ”. • Caution: the surface of heating element is subject to residual heat after use. • Caution: risk of injury due to improper use of the appliance.
-
Page 10: Connecting To The Power Supply
• Check that the power supply voltage corresponds to that shown on the appliance (alternating current). • Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved service centre. -
Page 11: Protect The Environment
• Respect the levels indicated in the recipes. • Should any part of your appliance catch fire, do not attempt to put it out with water. To smother the flames use a damp tea towel. • Any intervention should only be made by a service centre with original spare parts. -
Page 12: Before The First Use
BEFORE THE FIRST USE Unpack the appliance • Remove the appliance from the packaging and unpack all the accessories and printed documents. • Open the lid by pushing the opening button on the housing – fig.1. Read the Instructions and carefully follow the operation method. Clean the appliance •... - Page 13 Never place your hand on the steam vent during cooking, as there is a danger of burns – fig.12. After start the cooking, if you wish to change the selected cooking menu because of an error, press «KEEP WARM/CANCEL» key and re- choose the menu you want.
- Page 14 MENU KEY • Under standby status, press the «Menu» key to cycle through the following functions: Baking Soup Steam Stew/ Slow cook Crust/Fry Porridge Yogurt – cheese Bread rising Dessert Rice/ Cereals Pilaf / Risotto Pasta Defrost Reheat • The screen displays the default cooking time of each function (except Rice/Cereals, Pilaf/Risotto and Yogurt/Cheese).
-
Page 15: Steam Function
SOUP FUNCTION • Press «Menu» key to select function «Soup». The screen displays the default cooking time, the light of «Start» and “Stir” will flash red. Then press «<» or «>» to select the food type : Vegetables, Fish, Poultry or Meat. - Page 16 STEW/ SLOW COOK FUNCTION • Press «Menu» key to select function «Stew/Slow cook». The screen displays the default cooking time, the light of «Start» will flash red. Then press «<» or «>» to select the food type : Vegetables, Fish, Poultry or Meat. •...
-
Page 17: Jam Function
Note: • Always use this function with oil and food. With oil only, it may cause a failure or danger. • Do not use the steam basket to cook with this function, it may cause melting of the steam basket. JAM FUNCTION •... -
Page 18: Yogurt Function
YOGURT FUNCTION • Press «Menu» key to select function «Yogurt/Cheese». The screen displays “P1” for Yogurt program, then the default cooking time «08:00», , the light of «Start» will flash red. • Press «Temperature / Timer» key to activate the time setting function and then press «<»... - Page 19 The ferment For yogurt This is made either from: • One shop-bought natural yogurt with the longest expiry date possible; your yogurt will therefore contain more active ferment for a firmer yogurt. • From a freeze-dried ferment. In this case, follow the activation time specified on the ferment instructions.
- Page 20 CHEESE FUNCTION This function is to make soft cheese. It is preferably to use full-cream milk and some chilled soft cheese. • Press «Menu» key to select function «Yogurt/Cheese». The screen displays “P1” for Yogurt program. Press «<» or «>» to switch to “P2” for Cream cheese function.
- Page 21 DESSERT FUNCTION • Press «Menu» key to select function «Dessert». The screen displays the default cooking time, the light of «Start» will flash red. • Press «Temperature / Timer» key to activate the time setting function and then press «<» and «>» to change the cooking time. Press again «Temperature / Timer»...
- Page 22 PILAF/RISOTTO FUNCTION • Press «Menu» key to select function «Pilaf/Risotto». The screen displays « », the light of «Start» will flash red. • Press “Stir” key and the “Stir” light will come on. Press again and the stir function will be off. If no action is done before starting the cooking, the stirring function will be off.
-
Page 23: Defrost Function
Please note that there are 7 steps: Preheat => Water absorb => Temperature quick rise => Keep boiling => Water evaporation => Braise rice => Keep warm. The cooking time depends on the quantity and type of rice. PASTA FUNCTION To cook pasta it is important to wait until the water reaches good temperature before adding pasta. -
Page 24: Reheat Function
Frozen Vegetables : 50 min Frozen Fish : 1h50min Frozen Poultry : 85 min Frozen Meat : 3h Note: No keep warm function for this function For a better defrosting, place your ingredients in the steam basket and cut your ingredients into small pieces. At the end of the defrosting, you have to cook your food immediately. - Page 25 DIY FUNCTION Press «DIY» key to select DIY function under standby status, the multicooker will first enter “DIY” setting status with the screen displaying the default cooking time, and the light of “Start” will flash red. You can save until 4 DIY programs •...
-
Page 26: Timer Function
Recommandation: In order to preserve the taste of your food, keep warm function should not exceed 12 hours. In case that you need to pre-cancel the automatic keep warm when the cooking will be finished : long press «Keep warm» for 5 s before starting the cooking program. -
Page 27: Temperature Function
TEMPERATURE FUNCTION • To use the Temperature function, choose a cooking program and the cooking time first. Then, press the key «Temperature/Timer» and choose the temperature. The default cooking temperature will change depending on the selected cooking program. Each press of «<» and «>» key can increase or decrease the temperature. -
Page 28: Cleaning And Maintenance
ON COMPLETION OF COOKING • Open the lid – fig.1. • Glove must be used when manipulating the cooking bowl and steam tray – fig.13. • Serve the food using the spoon provided with your appliance and reclose the lid. •... - Page 29 Cleaning the micro pressure valve • When clean the micro-pressure valve, please remove it from the lid – fig.17 and open it by rotating in the direction «open» - fig.18a and 18b. After cleaning it, please wipe dry it and meet the two parts together and rotate it in the direction of «close», then put it back to the lid of the multicooker –...
- Page 30 TECHNICAL TROUBLESHOOTING GUIDE Malfunction Causes Solutions description Any indicator Check the power cord is lamp off and no Appliance not plugged. plugged in the socket and heating. on the Mains. Problem of the Any indicator connection of the Send to authorized lamp off and indicator lamp or service center for repair.
-
Page 31: Environmental Protection
Malfunction Causes Solutions description Rice half cooked Not sufficient or overtime simmered. cooking Automatic The keep warm warm-keeping function has been fails (product cancelled by user Send to the authorized stay in cooking during the setting. See service center for repair. position, or no keep warm function heating). - Page 32 5 – 32 9100033204...
