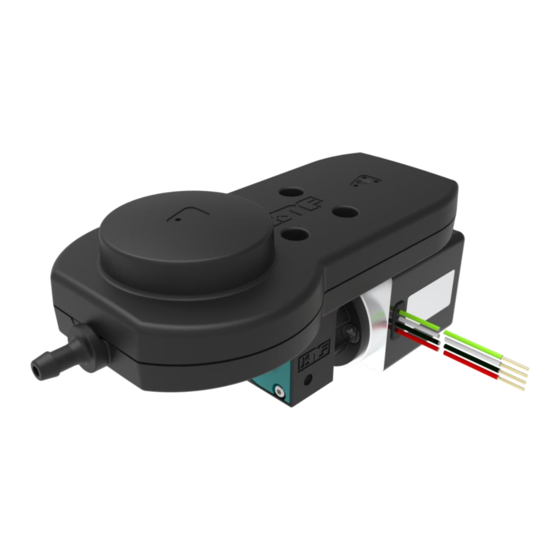

- Page 1 FP25 / FP1.25 INSTALLATION INSTRUCTIONS DIAPHRAGM PUMP Before operating the pump and the accessories, please read the Installation Instructions and safety precautions.
-
Page 3: Table Of Contents
Connecting the fluid system Electrical connection Initial start-up ................10 Maintenance ................12 Cleaning Preparing for dismantling Dismantling the pump head Assembling the pump head Rectifying transfer problems ..........15 Spare parts ................16 Returning the pump ..............18 KNF Flodos 338092_MA_FP25_EN_00... -
Page 4: General
This indicates a dangerous situation that may cause death or seri- ous injury if not prevented. CAUTION This indicates a dangerous situation that may cause moderate or slight injuries if not prevented. NOTICE This indicates a situation that may cause damage to property if not prevented. KNF Flodos 338092_MA_FP25_EN_00... -
Page 5: Disclaimer
The listed documents must also be observed. The valid versions are available at www.knf.com. ▪ Data sheet ▪ 3D model The following must also be observed: ▪ Local T&Cs ▪ Sales documents and agreement between KNF and the cus- tomer ▪ Drive specification KNF Flodos 338092_MA_FP25_EN_00... -
Page 6: Safety
➢ Operate the pump only when you are sure it has no tech- nical malfunctions. ➢ Operate the pump in accordance with the technical data. ➢ Work on the pump or fluid circulation system only after they have been decontaminated and/or a decontamination decla- ration is present. KNF Flodos 338092_MA_FP25_EN_00... -
Page 7: Customer Service And Repairs
➢ Install a shut-off valve in the fluid circulation system. 2.5 Customer service and repairs All repairs to the pumps must be carried out by the responsible KNF customer service team. Use only genuine parts from KNF for servicing work. KNF Flodos 338092_MA_FP25_EN_00... -
Page 8: Installation Location
▪ have appropriate precautions if flammable media are used Mounting orientation The following points are recommended for optimal filling and venting of the pump head. ▪ horizontal mounting position ▪ Filling / emptying pump with nominal rpm (nominal voltage). Figure 1: Horizontal orientation KNF Flodos 338092_MA_FP25_EN_00... -
Page 9: Mechanical Mounting
The pumps must be fused individually. ▪ Contact protection and additional insulation ▪ Ground connections ▪ Protection against vibrations, tensile stress, and corrosion For detailed information about control, please refer to the drive specification (available from your local KNF dealer). KNF Flodos 338092_MA_FP25_EN_00... -
Page 10: Initial Start-Up
Pumps with brushless DC-motor have a thermal overload protec- tion with automatic recovery to protect the motor from overheat- ing. After cooling down the motor starts automatically. ➢ Ensure that this does not cause a hazardous situation KNF Flodos 338092_MA_FP25_EN_00... - Page 11 ▪ Contact protection for electrical connections and moving parts is installed. CAUTION Danger of scalding from hot medium leaks In the terminal system, check the fluid system for leaks at the op- erating temperature of the medium. KNF Flodos 338092_MA_FP25_EN_00...
-
Page 12: Maintenance
Maintenance Installation Instructions FP 25 5 Maintenance Ask your KNF representative about the availability of spare parts for this product. Use only genuine parts from KNF for servicing work. 5.1 Cleaning WARNING Danger due to dangerous substances in the pump Depending on the medium transferred, chemical burns or poison- ing is possible. -
Page 13: Preparing For Dismantling
Insert the diaphragm (3) and tighten it well by hand. By slightly pressing on the diaphragm, the ridge on the under- side of the diaphragm can be positioned into the groove of the housing. Place the head plate (12) according to Figure 4. Figure 4 KNF Flodos 338092_MA_FP25_EN_00... - Page 14 After assembly, the pump may not be leak-tight due to incorrect assembly, damaged or soiled seal faces, or other reasons. ➢ Run the pump for several minutes with a harmless medium at maximum operating pressure. ➢ Check that the pump is leak-tight. KNF Flodos 338092_MA_FP25_EN_00...
-
Page 15: Rectifying Transfer Problems
Leak on pump head Damage to the valve O- Replace the O-rings. rings Diaphragm damaged Replace the diaphragm. Resonating diaphragm Replace resonating diaphragm. damaged If the malfunction cannot be rectified, contact your local KNF repre- sentative (www.knf.com). KNF Flodos 338092_MA_FP25_EN_00... -
Page 16: Spare Parts
EPDM Diaphragm PTFE EPDM Valve FFKM EPDM Gasket EPDM Resonating diaphragm PTFE Figure 7: Spare parts kit “elastomer” FP25 Dampening element Sylodyn Spare parts kit “elastomer” FP1.25 Pieces Pieces Pieces Pos Name Material Order-No. in set in set in set Kit _P Elastomer FP1.25... - Page 17 PPS GF40% PT Screw 30x10 Inox Connection Plate PPS GF40% Head plate PA GF40% PT Screw 22x12 Inox Figure 9: Spare parts kit “plastic” FP25 Spare parts kit “plastic” FP1.25 Pieces Pieces Pos Name Material Order-No. in set in set Kit R_ Plastic FP1.25...
-
Page 18: Returning The Pump
Returning the pump Installation Instructions FP 25 8 Returning the pump KNF undertakes to repair the pump only on condition that the customer provides a certificate of the pumped medium and cleaning of the pump. For this, please follow the instructions on www.knf.com/repairs. - Page 20 www.knf.com...
