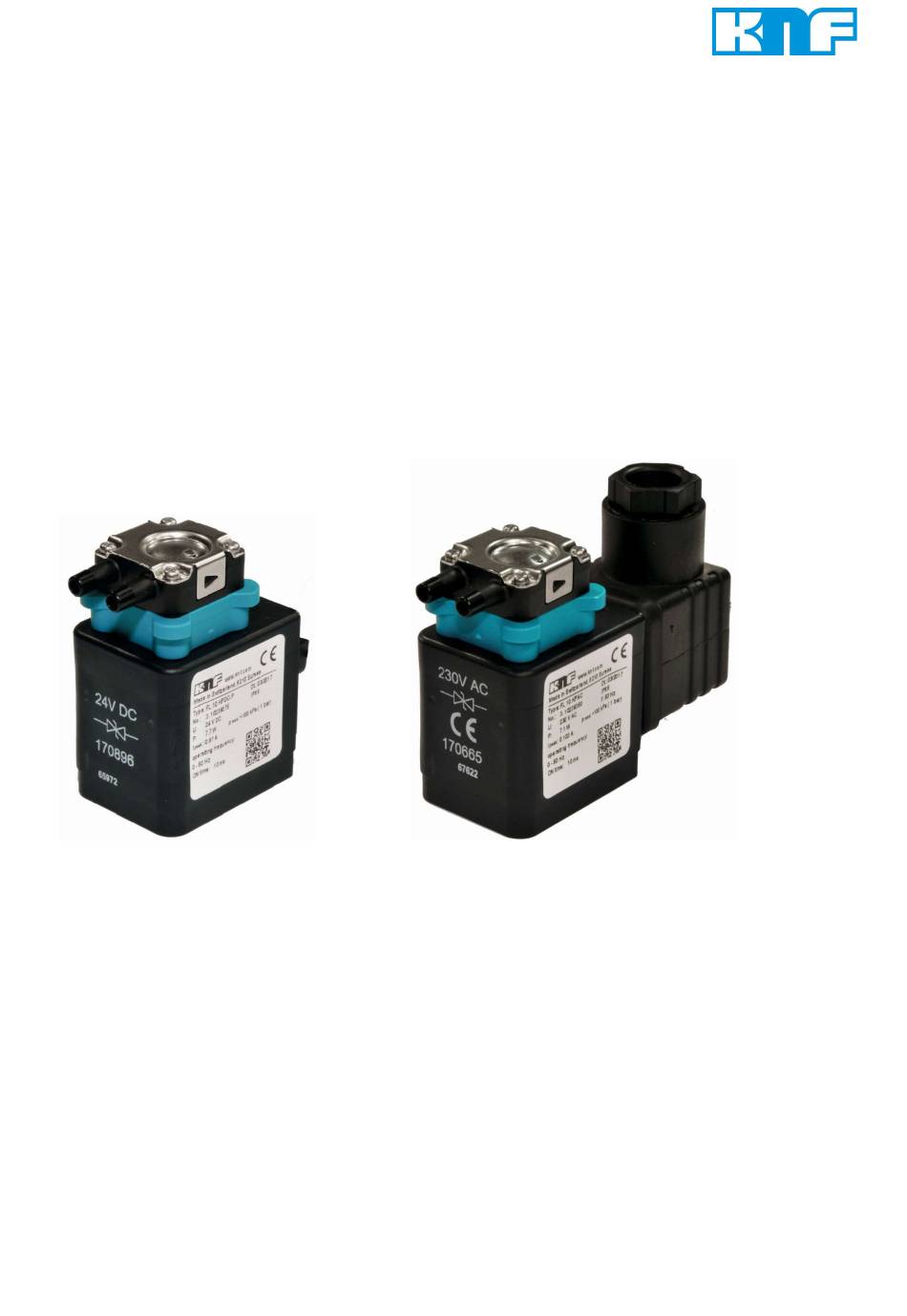

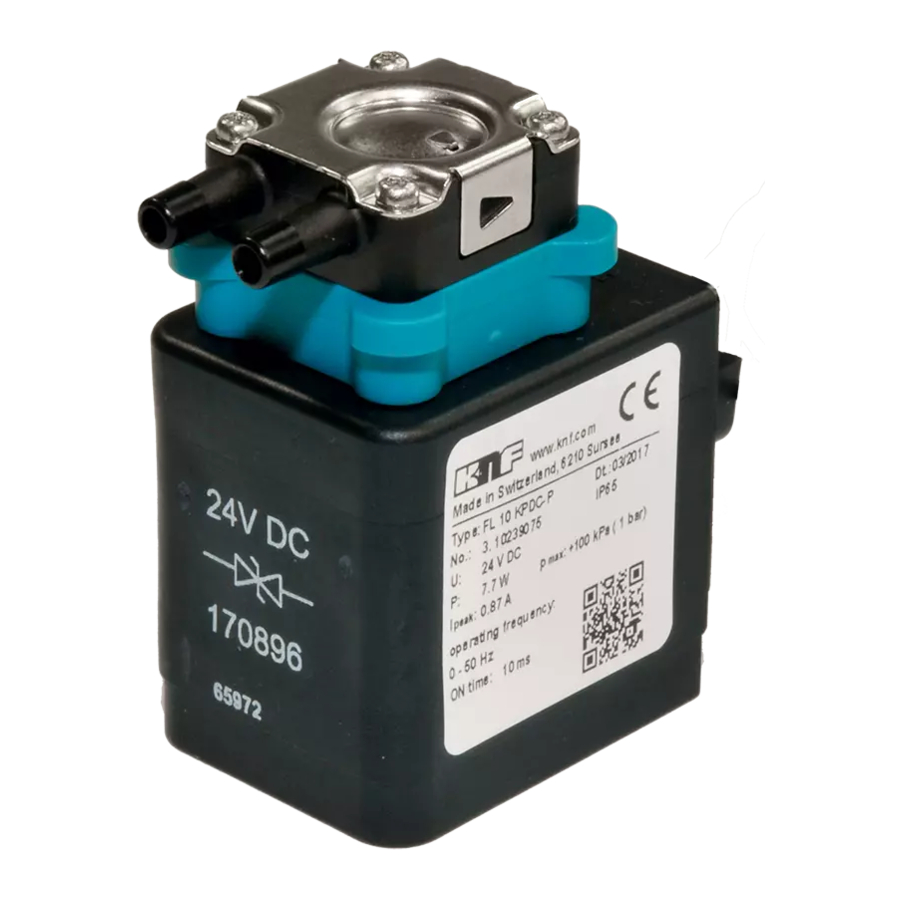

- Page 1 FL 10 INSTALLATION INSTRUCTIONS DIAPHRAGM PUMP FL 10 DC-P FL 10 AC Before operating the pump, please read the Installation Instructions and safety precautions.
-
Page 2: Table Of Contents
Reasonably foreseeable misuse Responsibility of the user Product-specific risks Installation ................7 Installation location Mechanical mounting Connecting the fluid system Electrical connection Initial start-up ................9 Maintenance ................10 Rectifying transfer problems ..........10 Returning the pump ............... 11 KNF Flodos 173856_MA_FL10_EN_01.docx... -
Page 3: General
Installation Instructions FL 10 General 1 General 1.1 Information about the instructions Table of Contents The Installation Instructions describe the requirements for installing the product correctly and safely into the complete machine. Storage location These Installation Instructions are a part of the product. The safety- relevant information should be taken over for the documentation of the complete machine. -
Page 4: Disclaimer
The listed documents must also be observed. The valid versions are available on www.knf.com/downloads. Data sheet 3D model Further attention must be paid to: Local T&Cs Sales documents and agreement between KNF and the cus- tomer KNF Flodos 173856_MA_FL10_EN_01.docx1... -
Page 5: Safety
Installation Instructions FL 10 Safety 2 Safety 2.1 Intended use The pump is intended solely for the following uses: Transferring liquids and gases For operation in accordance with the operating parameters specified in the technical data of the supporting documents 2.2 Reasonably foreseeable misuse... - Page 6 Safety Installation Instructions FL 10 DANGER Danger of injuries and damage to property due to leaks at the interfaces to the pump head Poisoning and chemical burns or unintended reactions caused by leaking dangerous substances Wear personal protective equipment ...
-
Page 7: Installation Location
Installation Instructions FL 10 Installation 3 Installation WARNING Danger from incorrect installation Injuries or damage to property from leaking media After installation, check the system for leaks with a safe medium Observe the requirements for intended use Take precautions in the design of the end device so that... -
Page 8: Electrical Connection
Installation Installation Instructions FL 10 3.4 Electrical connection For terminal assignment, output data, and control requirements, please refer to the data sheet Observe the regulatory requirements for electrical installations: Overload protection and separating protective devices Contact protection and additional insulation ... -
Page 9: Initial Start-Up
Installation Instructions FL 10 Initial start-up 4 Initial start-up The product must not be started up until it has been ensured that the machine in which the product is to be installed meets the requirements of the Machinery Directive 2006/42/EC, if applicable. -
Page 10: Maintenance
Use a preventive preliminary filter Pump has reached the Replace the pump end of its service life Leak of pump head Diaphragm or oscillating Replace the pump diaphragm defective If the malfunction cannot be rectified, contact your local KNF representative (www.knf.com) KNF Flodos 173856_MA_FL10_EN_01.docx1... -
Page 11: Returning The Pump
Installation Instructions FL 10 Returning the pump 7 Returning the pump KNF undertakes to repair the pump only under the condition that the customer provides a certificate of the pumped medium and cleaning of the pump. For this purpose, please follow the instruc- tions on www.knf.com/repairs. - Page 12 www.knf.com...
